Delivery Date:
04/20/2021
Department Name:
Concord Township
Department City / State:
Elkhart, IN
Truck Type:
Sutphen Corporation – HS #6787
Dealer – Herb Fire
WHEELBASE: 226”
TRAVEL HEIGHT: 10’ – 4”
TRAVEL LENGTH: 35’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof
- Four-Door, Four-Person Cab
- 10” Double Rails, Single Axle (50K PSI)
- Front Suspension 20,000 lbs.
- Rear suspension 27,000lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- CSU-1500 Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel
- 1000-Gallon Water Tank

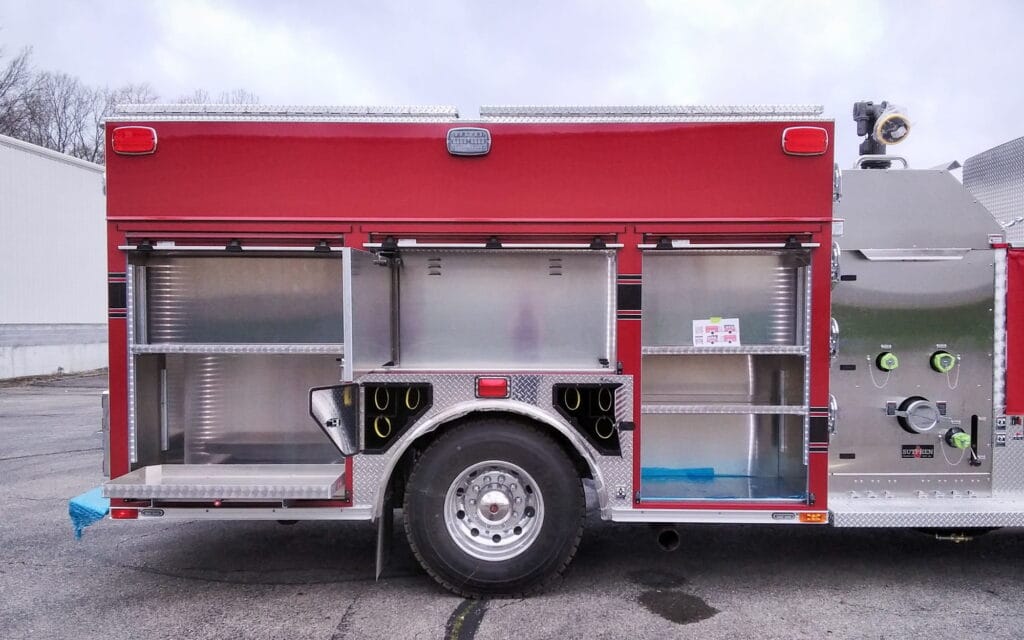

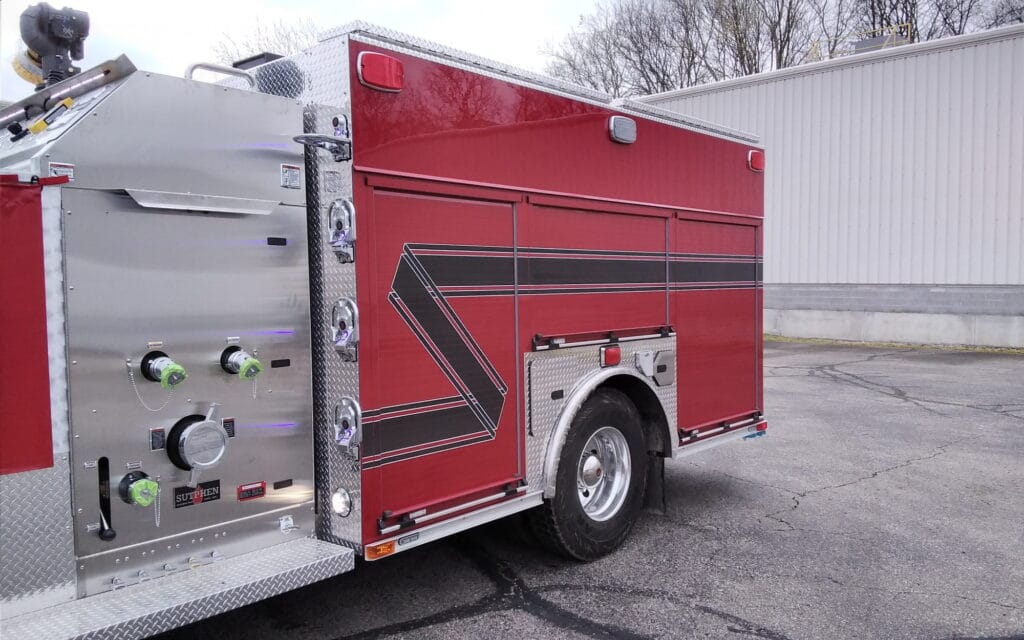

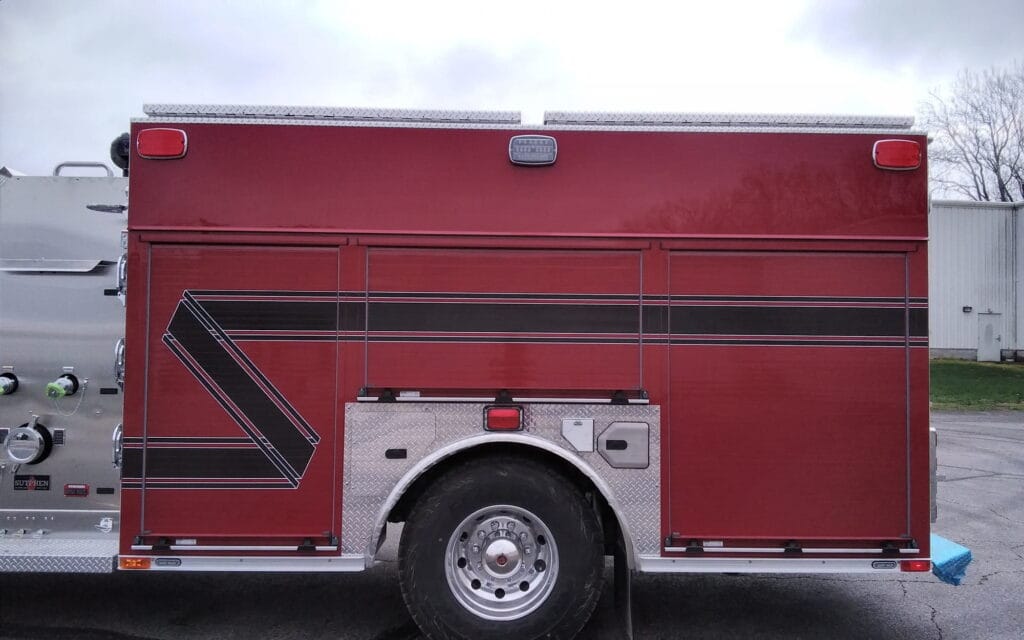

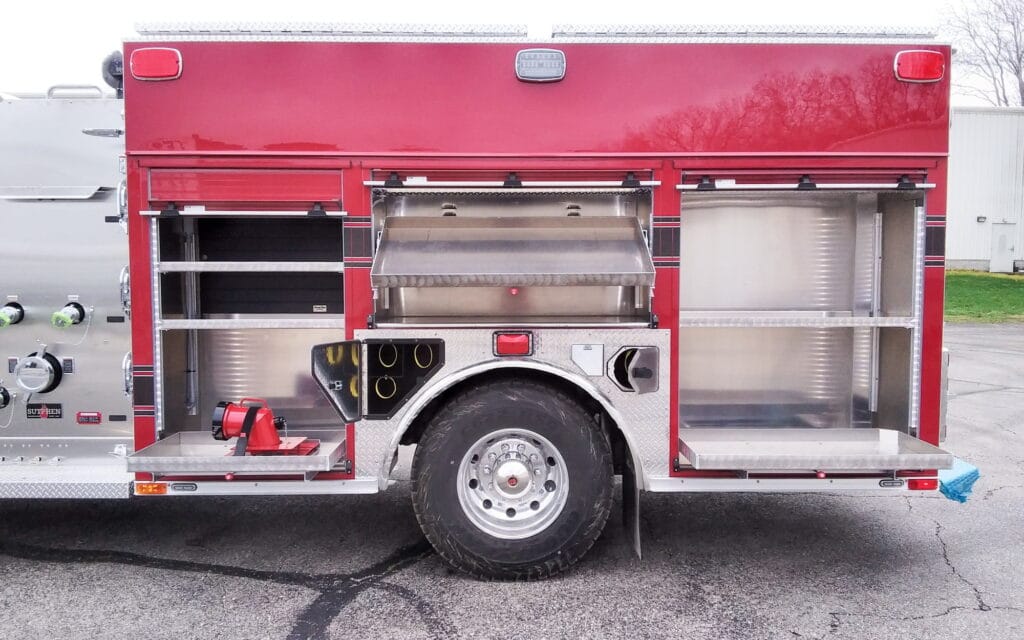

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors Painted
- 270 cu. ft. Total Compartment Space
- Alco-Lite Ladder Compliment (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:

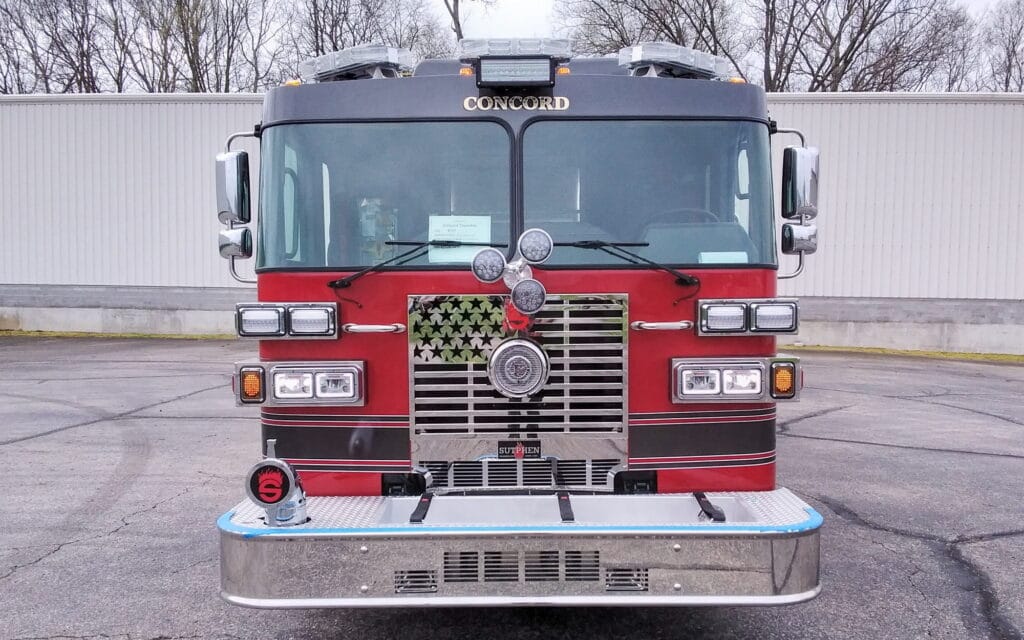

- 24” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Roto-Ray Warning Light
- Whelen Freedom IV 21” Lightbars
- Whelen Traffic Advisor LED, TAL65 36”
- Whelen M9 Scene
- Whelen M9 Red LED
- FRC Spectra Brow Light
