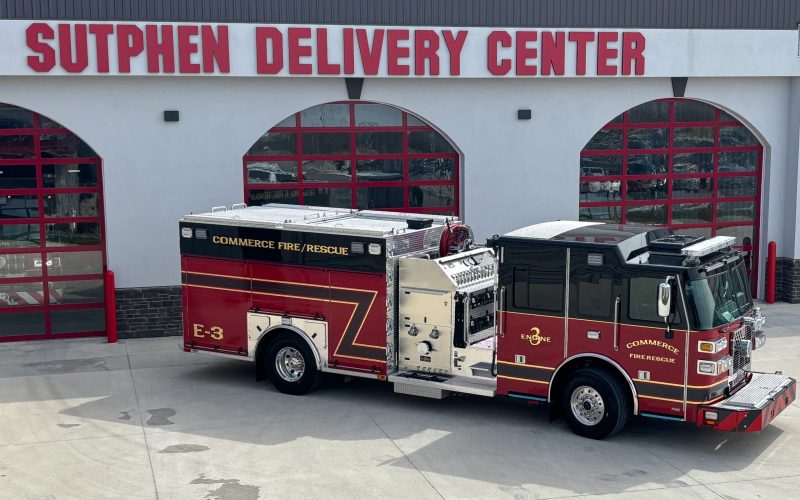

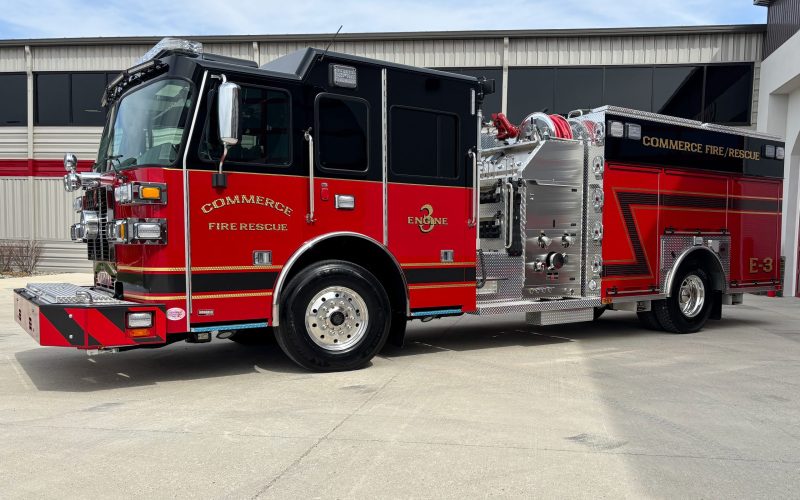

Custom Pumper – Commerce Fire Department, TX

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 34’ – 5”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

• Four-Door, Five-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension 20,000 lbs
• Rear Axle and Suspension 27,000 lbs
• Engine: Cummins X 12, 500 HP
• Alternator: Leece Neville, 420 AMP
• Transmission: Allison Gen 6, EVS4000

PUMP:                 Waterous

• QFLO-1250 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
• Speedlay: (2) 2” w/ 1 ½” Swivel
• 1,000-Gallon Water Tank

BODY:                 Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll Up Compartment Doors
• Over 245 cu. ft. of Compartment Space
• Alco-Lite Ladder Package: 24’ 2-Section, 14’ R & 10’ F
• Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

• 24” Formed Steel Channel, Painted Bumper
• Federal Q2B Siren, Grille Mount
• Intercom System: SetCom Wired
• RotoRay Warning Light
• Whelen Freedom IV 72” LED Light Bar 12 Modules
• FireTech Brow Light
• Whelen 900 Scene Light
• Whelen Traffic Advisor
