Delivery Date:
11/29/2022
Department Name:
Cleveland Fire Department
Department City / State:
Cleveland, Ohio

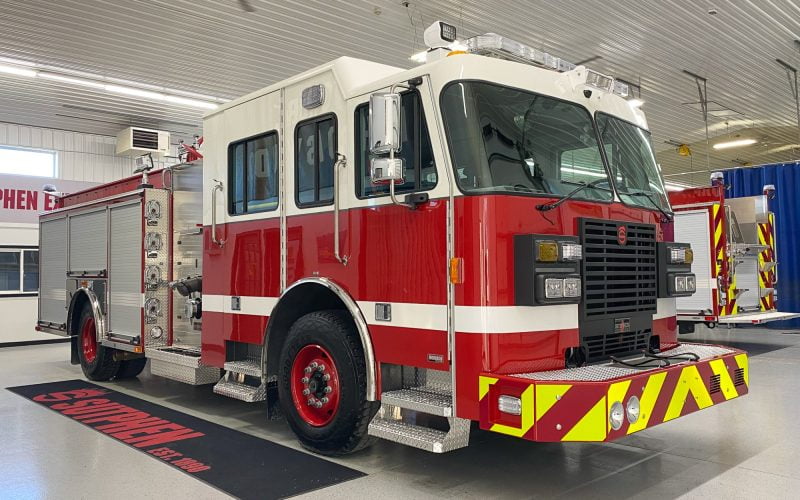

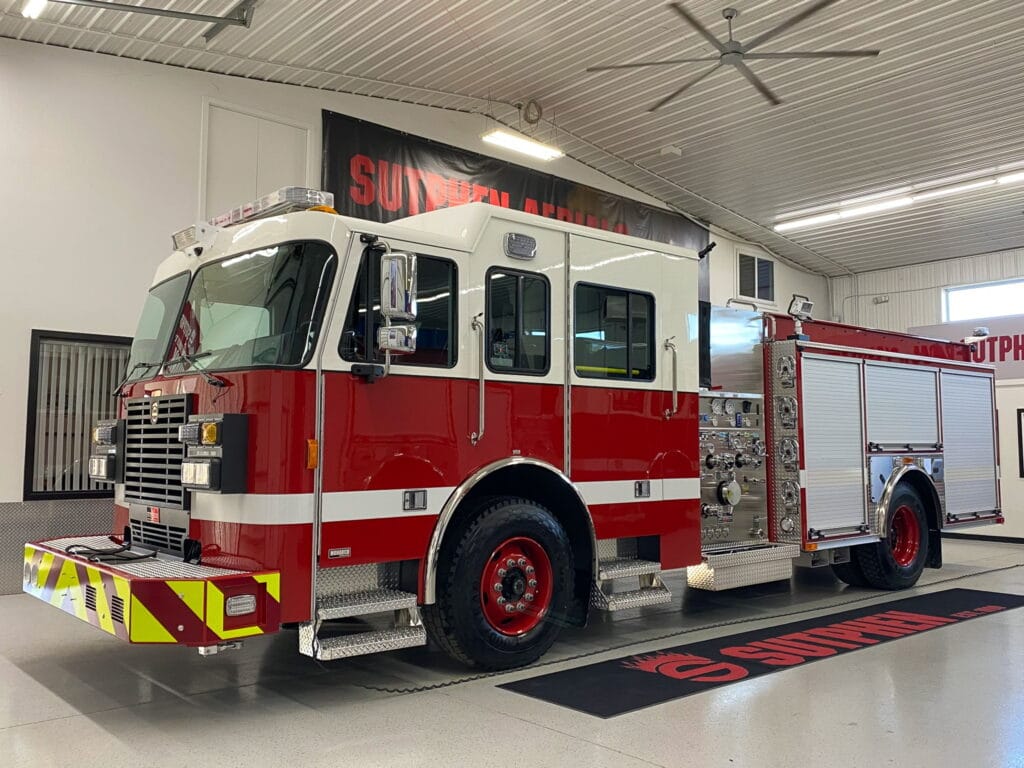

Truck Type:
Sutphen Corporation – HS #7285-86
Dealer – Herb Fire
WHEELBASE: 200 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 10 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Single Domex Frame Rails (110K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 380HP
- Alternator: Delco Remy, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QTWO-1500 GPM, Two Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right w/ 4” Outlet, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivels
- 500-Gallon Water Tank

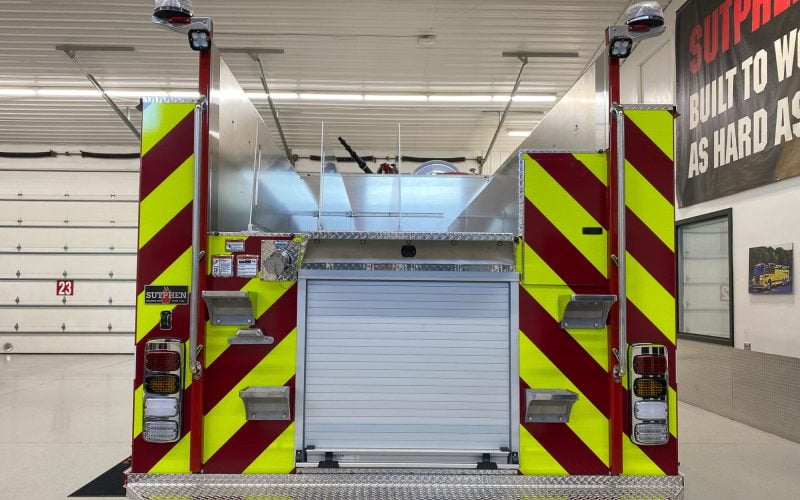

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 200 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: Pel-24 24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
- Body: S2 – Alum 43/53 Ladder Chute w/ Left and Center Lowered Hosebed and Shortened Body Side Metal
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Painted, Bumper Extension
- Camera: FRC 360 Inview w/ DVR
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH1 12V LED Brow Light
- Whelen Rota Beam R316” LED Rear Beacons
- Whelen PFH1 12V Scene Light
