Delivery Date:
03/08/2022
Department Name:
City of Oxford Fire Department
Department City / State:
City of Oxford, OH
Truck Type:
Sutphen Corporation – HS #6879
Dealer – Heritage Fire Equipment
WHEELBASE: 215 ½”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 35’ – 2 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000

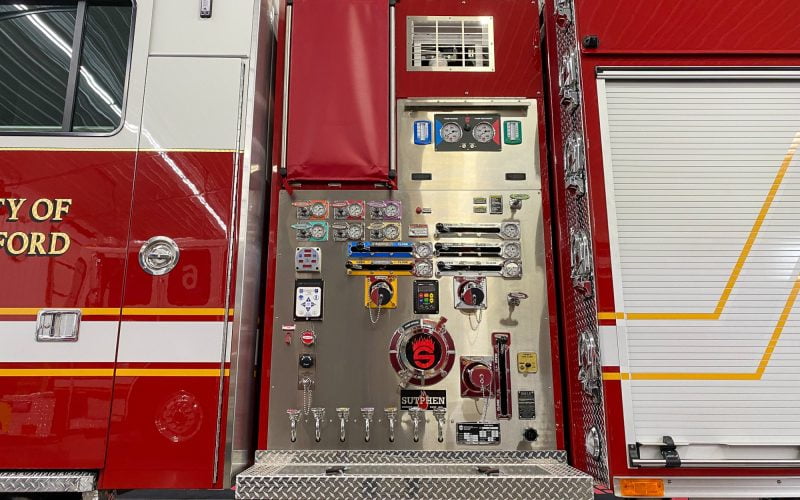

PUMP: Hale
- QMAX-1750 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left, (1) 2 ½”Front/ Right, (1) 2 ½” Front Bumper Swivel, (1) 3” Deck Gun
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors
- Over 385 cu. ft. Total Compartment Space

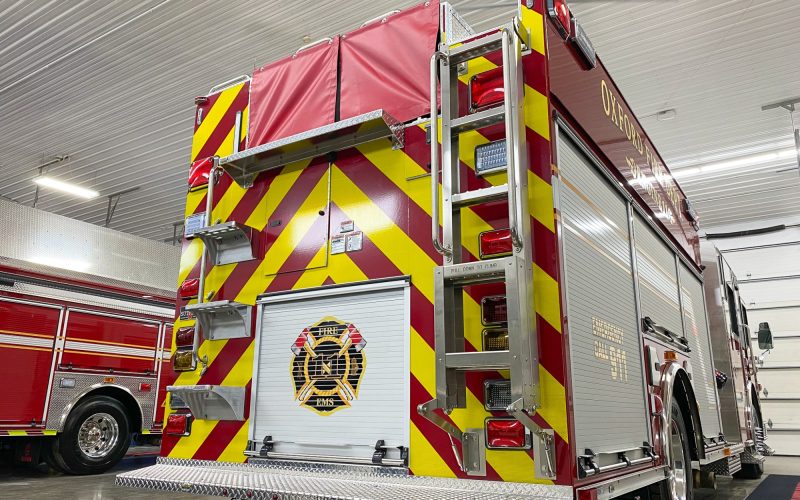

- Duo-Safety Ladder Package: 28’ 2-Section, 16’ Roof & 10’ Folding
- Body: PA-17 56/53 Chute & Double Hatch
ADDITIONAL EQUIPMENT:
- 30” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC Inview
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power 6KW
- Whelen Freedom IV 72” LED Light Bar
- FR Spectra 12V Brow
- FR Spectra 12V Scene
- FR Spectra 900 12V
