Delivery Date:
02/23/2021
Department Name:
City of Moultrie Fire Department
Department City / State:
Moultrie, GA
Truck Type:
Sutphen Corporation – HS #6737
Dealer – Williams Fire Apparatus
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Rails, Single Axle (50K PSI)
- Front Axle and Suspension 19,000 lbs, (4) 56” Leafs
- Suspension Rear Firemaax 27,000 lbs, Leaf
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

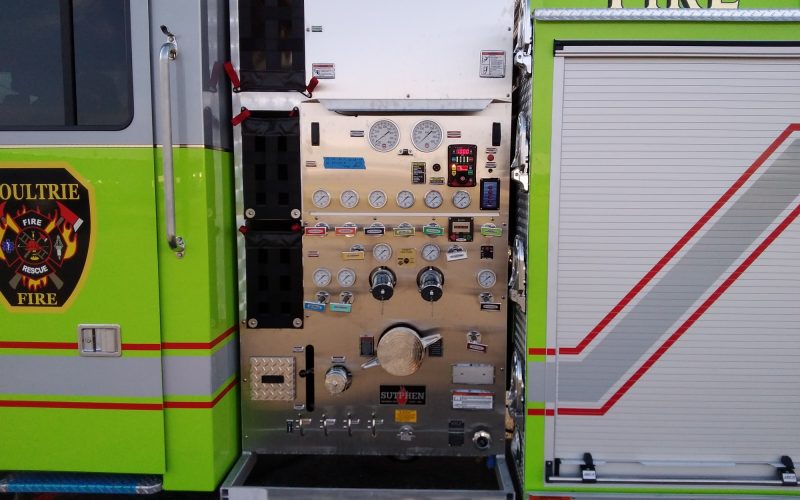

PUMP: Hale
- XS QMAX-1,500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, 3” Deck Gun
- Crosslays: (1) 2 ½”
- Speedlays: (2) 2” w/ swivels and poly lift-out trays
- 1000-Gallon Water Tank
BODY: Sutphen
- Amdor Roll-Up Compartment Doors Satin Finish
- 246 cu. ft. Total Compartment Space
- (4) Single Air Bottle Compartment
- Body: G9 Alum 40/51
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Painted Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC Inview Trueview Two Cameras
- HIVIZ 72” Brow Light
- Whelen Freedom LED Lightbar
- LED Rotoray
- Whelen LED Water Level Gauge
