Delivery Date:
07/17/2019
Department Name:
City of Jeannette Fire Department
Department City / State:
Jeannette, PA

Sutphen Corporation – HS #6434

Dealer – FAST of the Allegheny Mountains

WHEEL BASE: 179”

TRAVEL HEIGHT: 9′ – 10”

TRAVEL LENGTH: 30’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

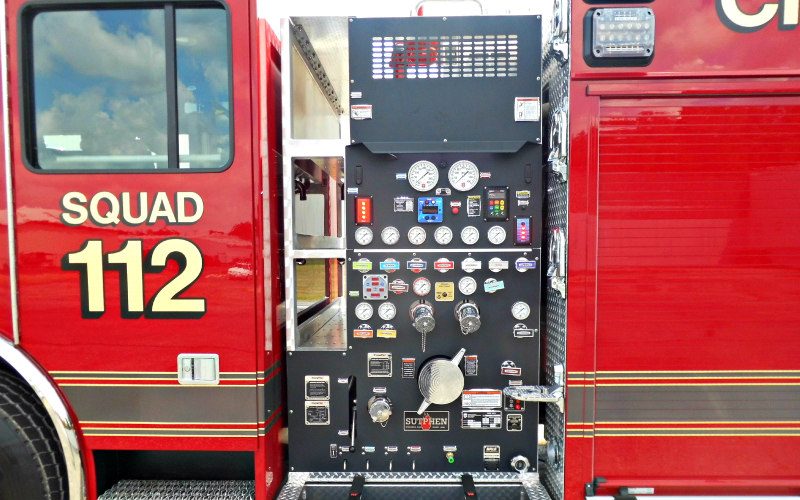

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Left Front Hose Bed, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay & (2) 2” Speedlay with 1 ½” Swivel & Poly Lift-Out Tray
  • 50-Gallon Foam Tank
  • Foam Pro 2002 Foam System
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 270 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)
  • Ladder Chute with Backboard Storage

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • FRC, Inview Trueview, Camera System
  • Hannay Electric Cord Reel, 200’ (1)
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • Whelen LED Traffic Advisor
  • FRC Spectra Brow Lights
  • Firetech Guardian Elite LED Scene Lights
  • Air Bottle Compartments (4)
