Delivery Date:
06/29/2023
Department Name:
City of Greenwood Fire Department
Department City / State:
Greenwood, AR
Truck Type:
Dealer – Heartland Fire Trucks
WHEELBASE: 215”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33′ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

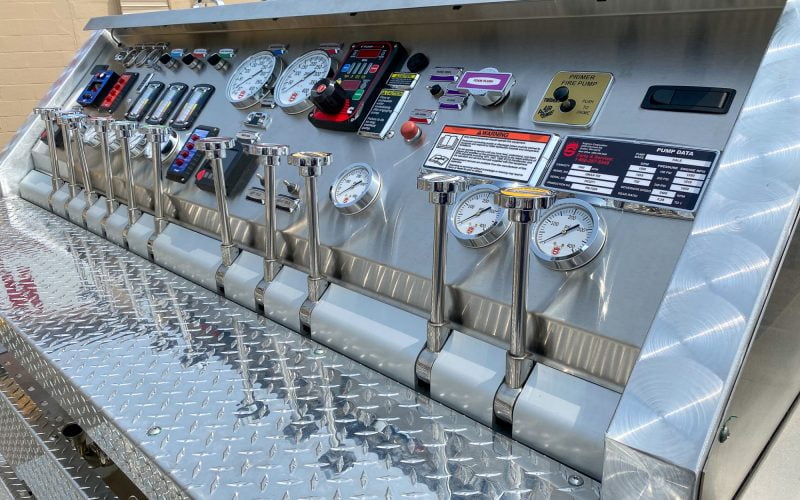

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: FoamPro 2001, 2.6 GPM

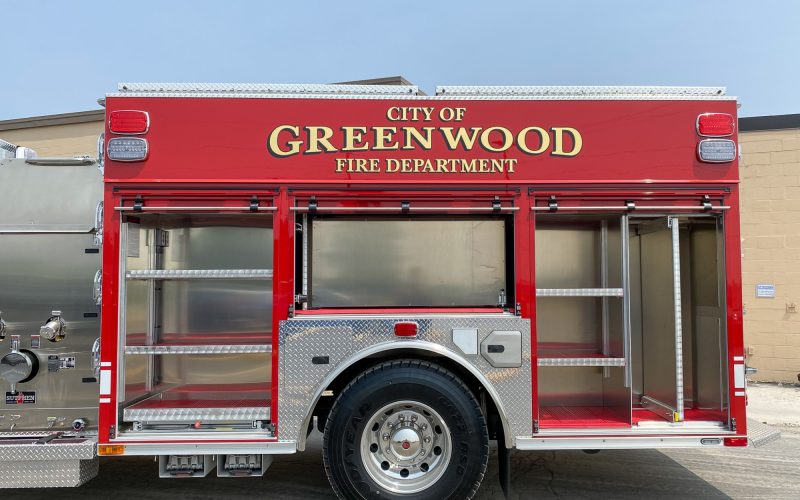

BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladder Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Inview Trueview, Two Cameras
- Hi-Viz 72” Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Scene Lights
- FireTech FT-SL-GESM Telescopic Lights
