Delivery Date:
04/09/2020
Department Name:

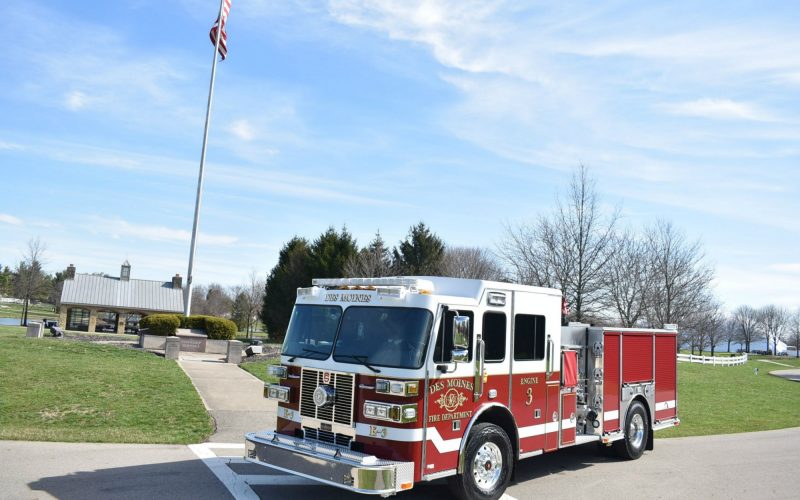

City of Des Moines Fire Department Headquarters
Department City / State:
Des Moines, IA
Truck Type:
Sutphen Corporation – HS #6636
WHEELBASE: 192”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 30’ – 10 ¾”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 149 cu. ft. Compartment Space
- Duo-Safety Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
- Enclosed ladder chute
- Body: Custom w/ Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- 7 Bottle Compartments
- Whelen PFH2 12v Brow Light
- Whelen Freedom IV Lightbar
- Firetech Scene Lights
- Whelen PFH2 Scene Lights
- Whelen 600 Warning Lights
- Whelen Ion Warning Lights
- Whelen M6 Series Warning Lights
