Delivery Date:
07/19/2019
Department Name:
City of Alabaster Fire Department
Department City / State:
City of Alabaster, AL

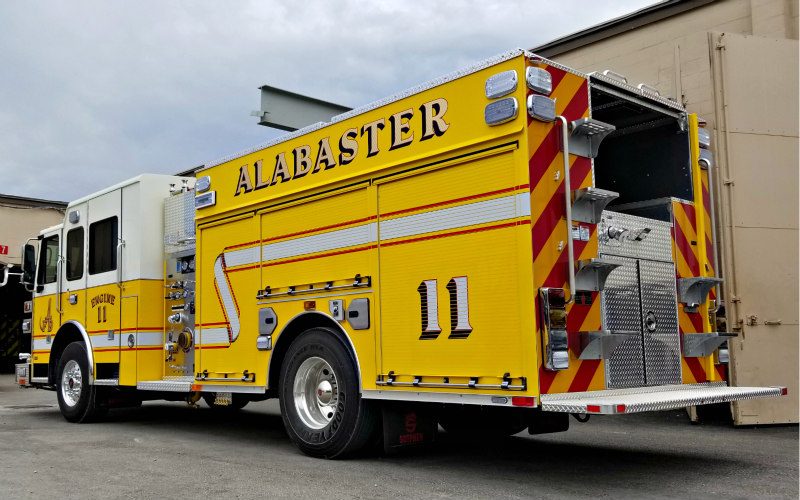

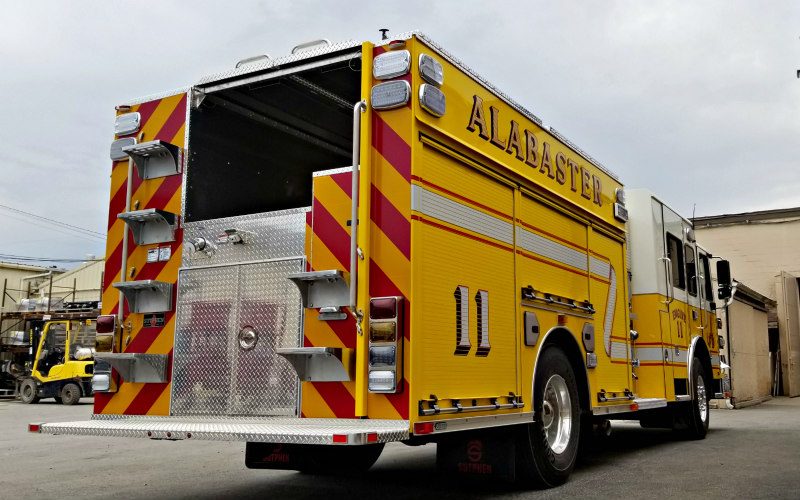

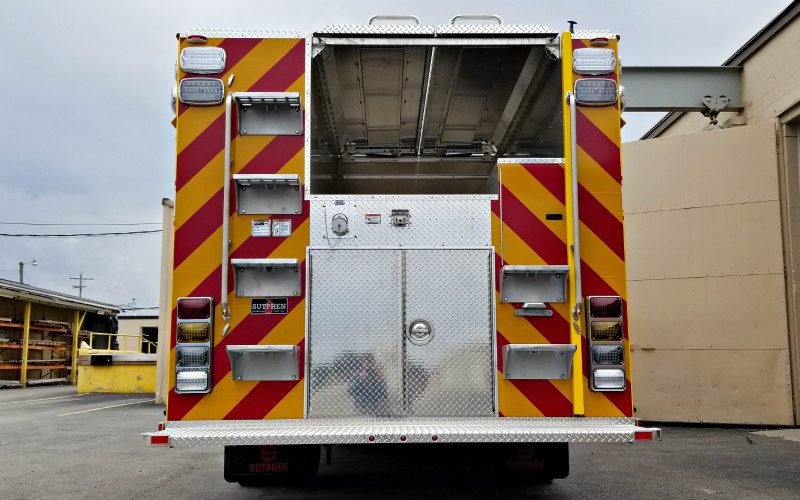

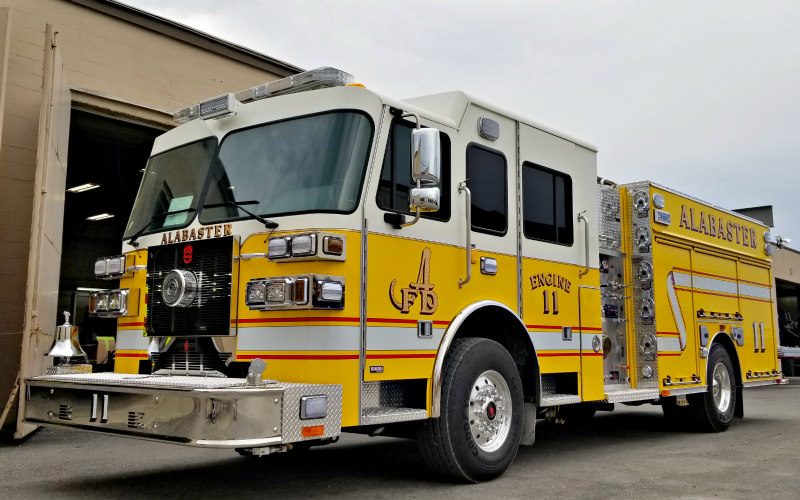

Sutphen Corporation – HS #6392

Dealer – Williams Fire Apparatus

WHEEL BASE: 196”

TRAVEL HEIGHT: 9 – 8”

TRAVEL LENGTH: 33’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 234 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel
  • Voyager 2, Camera System
  • Federal Q2B Siren
  • Hannay Booster Reel with 100’ of 1”
  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Scene
  • Whelen Freedom IV 72” (8) 12 Module LED Lightbar
  • Whelen M9 LED Scene Lights
  • Whelen 295HFSA7 Electric Siren
