Delivery Date:
03/17/2019
Department Name:
City of Alabaster Fire Department
Department City / State:
Alabaster, AL

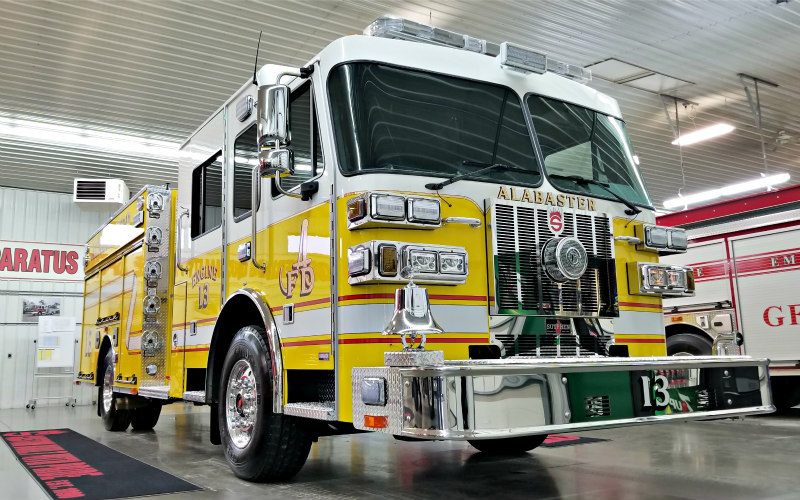

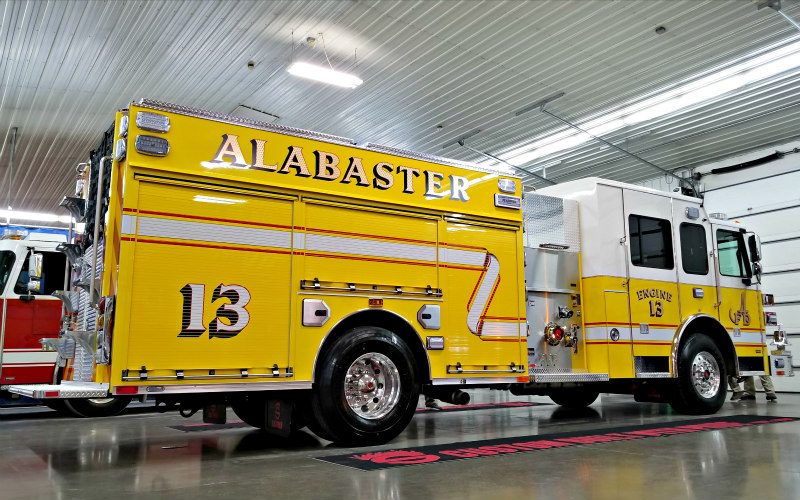

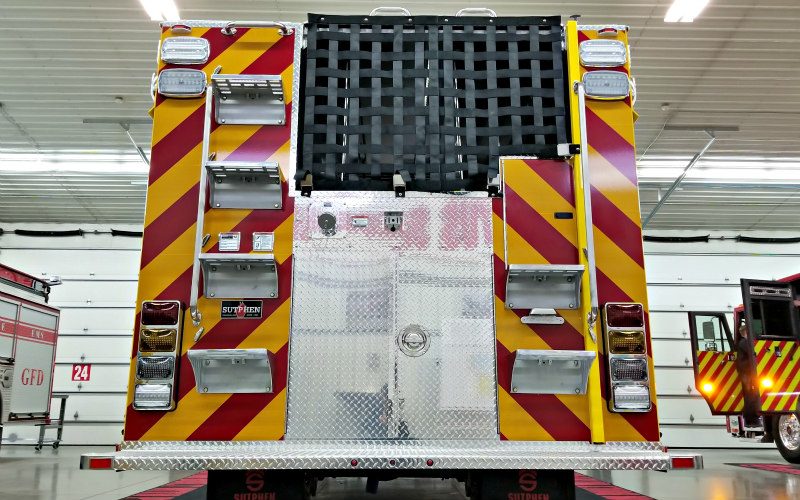

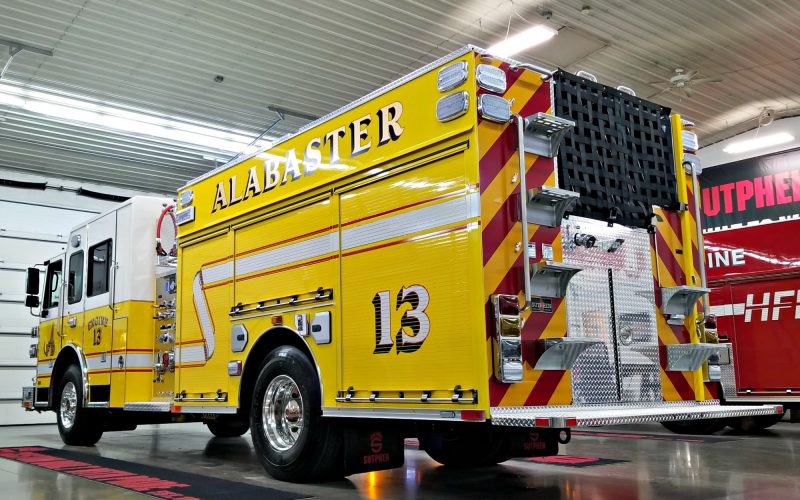

Truck Type:
Sutphen Corporation – HS #6260
Dealer – Williams Fire Apparatus
WHEEL BASE: 196”
TRAVEL HEIGHT: 9′ – 8”
TRAVEL LENGTH: 33’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

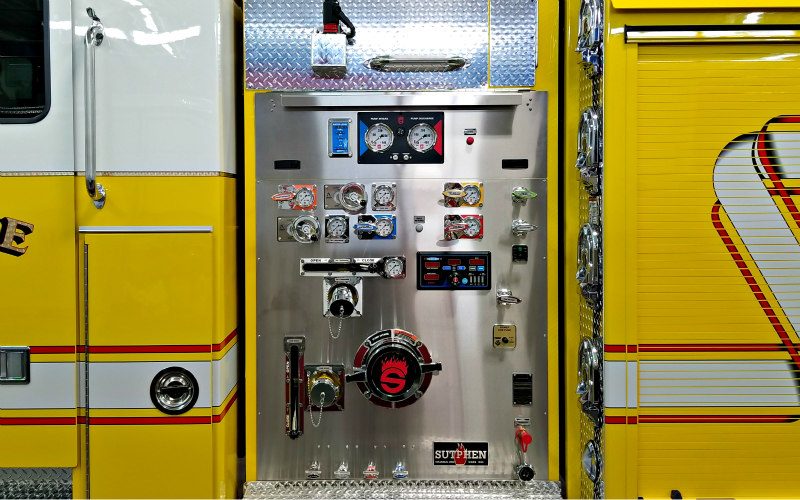

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 234 cu. ft. Total Compartment Space
- Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
- Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel
- Voyager 2, Camera System
- Federal Q2B Siren
- FRC Spectra 12V LED Brow
- FRC Spectra 12V LED Scene
- Whelen Freedom IV 72” (8) 12 Module LED Lightbar
- Whelen M9 LED Scene Lights
- Whelen 295HFSA7 Electric Siren
