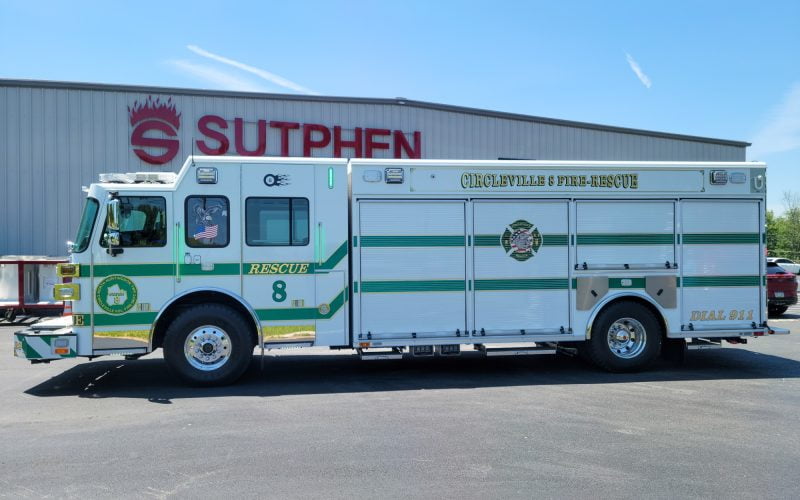

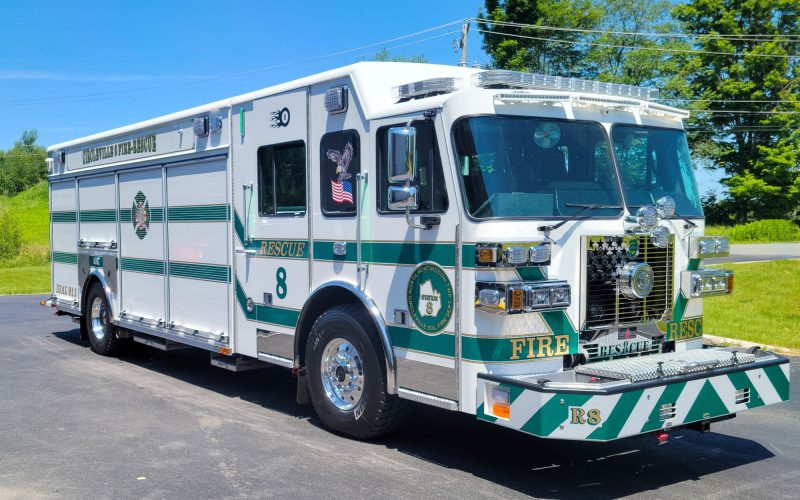

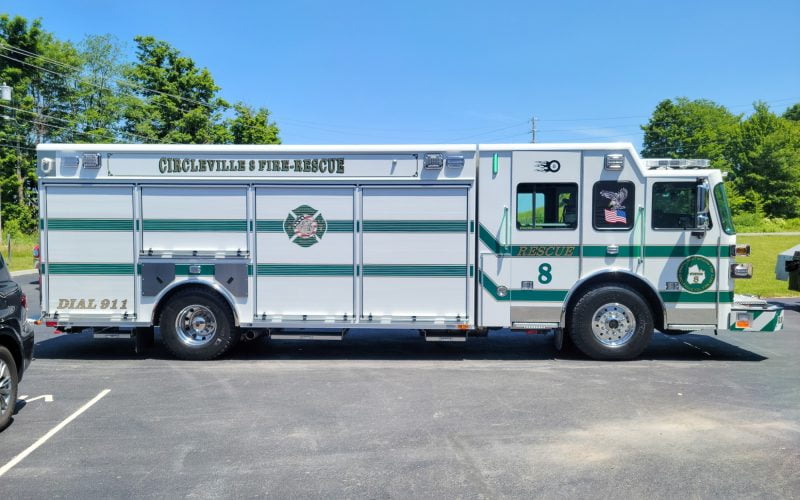

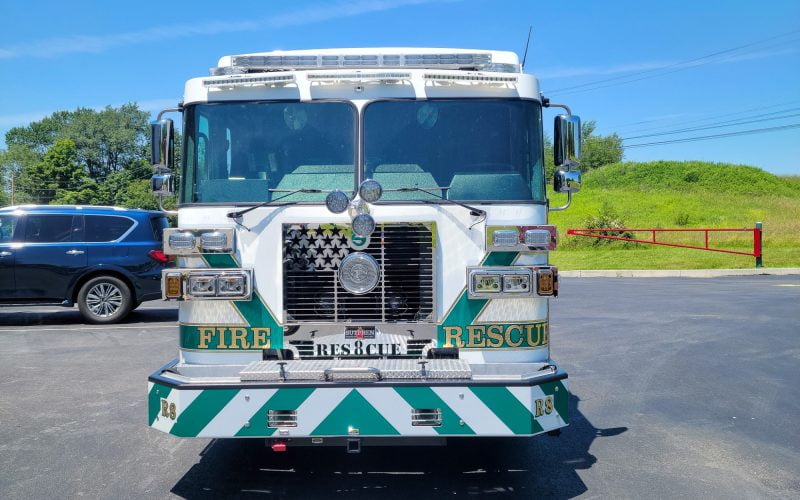

Delivery Date:
06/15/2022
Department Name:
Circleville VFD
Department City / State:
North Huntingdon, PA

Sutphen Corporation – HS #6992

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 36’ – 2”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Half Raised Roof

  • Four-Door, Eight-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • XS QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (2) 4” Right, (1) 2 ½” Right, (2) 2” Right Rear, (1) 3” Front/Left, (2) 1 ½” Front Bumper, (1) 3” Deck Gun, (4) Foam Discharges
  • 750-Gallon Water Tank
  • 50-Gallon Foam Tank
  • Foam System: Hale Smartfoam 5.0

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Painted Compartment Doors
  • Over 485 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: Pel-24 24 2’ Section & PRL-14 14’ Roof & 10’ Folding
  • Body: PA-15 RES 56/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360, Backeye 360 Camera System
  • Generator: Smart Power, 10KW TM HYD
  • Whelen Freedom 72” LED Lightbar
  • Whelen 21” Freedom Lightbar
  • Whelen M6 Warning Lights
  • Fire Tech Guardian Elite Scene Lights
  • Fire Tech 3 Piece Brow Light
