Delivery Date:
06/02/2023
Department Name:
Choctaw Fire Department
Department City / State:
Choctaw, OK
Truck Type:
Sutphen Corporation – HS #7205
Dealer – Heartland Fire Trucks
WHEELBASE: 188”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31′ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000

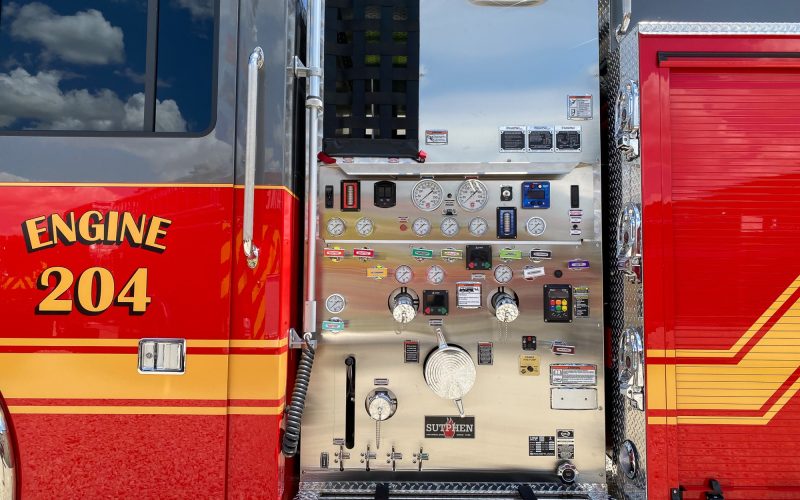

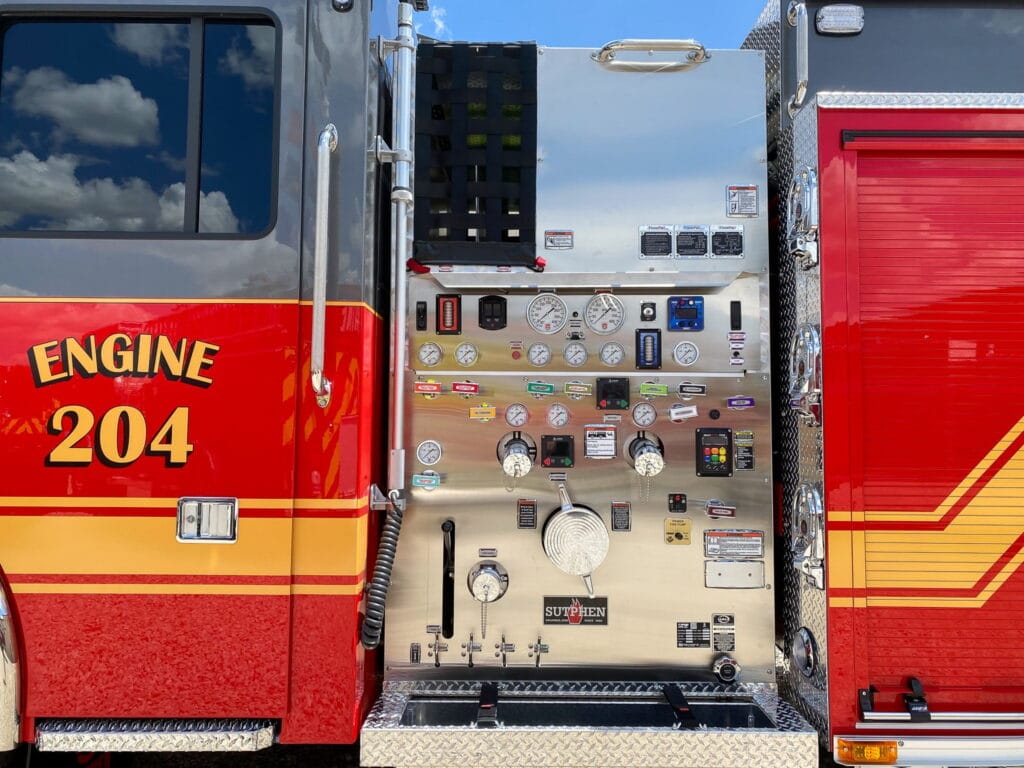

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: FoamPro 2001, 2.6 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladder Through Tank
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- FRC Spectra Brow Light
- Whelen Freedom LED Lightbar
- FRC Spectra Telescopic Lights
- Whelen M9 Scene Lights
