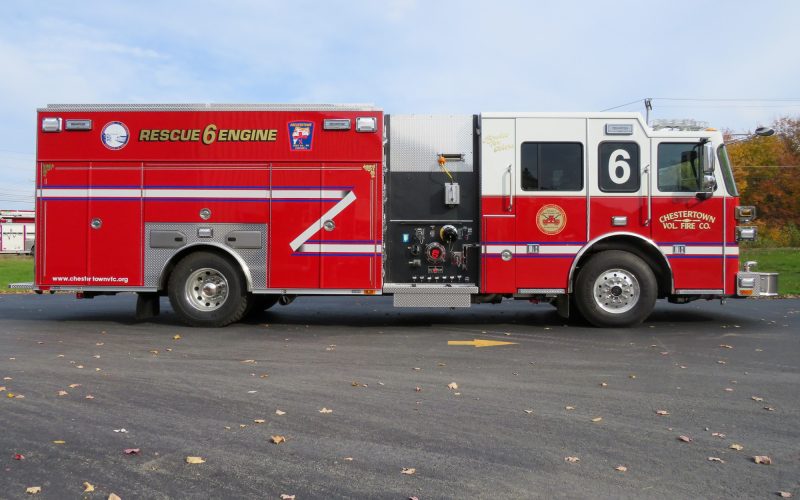

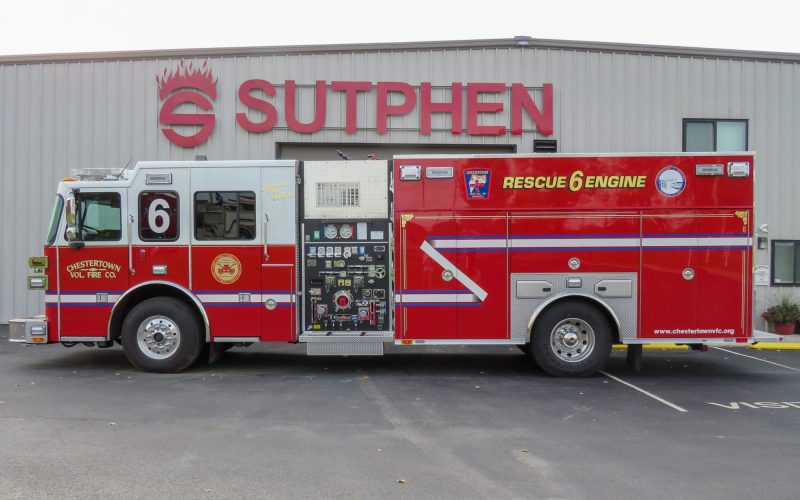

Department Name:
Chestertown VFD
Department City / State:
Chestertown, MD
Truck Type:
Sutphen Corporation – HS #7134
Dealer – Lawver Fire Apparatus
WHEELBASE: 218”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 35′ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 31,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (2) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 1,000 -Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Williams ATP 1500, Class A and B, Air
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 435 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: PA-06 RES 56/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Voyager 3, Split Screen
- Hannay Electric Cord Reel, 200’ (1)
- Generator: 6KW Smart Power
- Roto-Ray Warning Light
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra LED Brow Light
- Opticom Mounted in Lightbar
- FRC Spectra LED Scene Lights
