Delivery Date:
11/16/2022
Department Name:

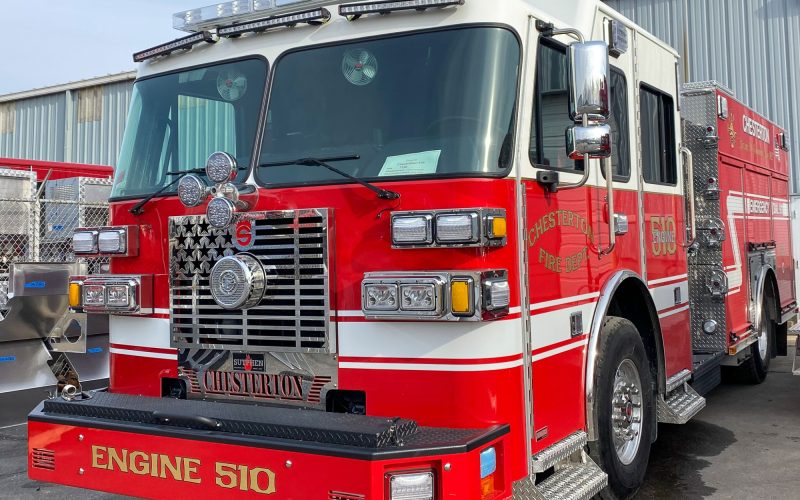

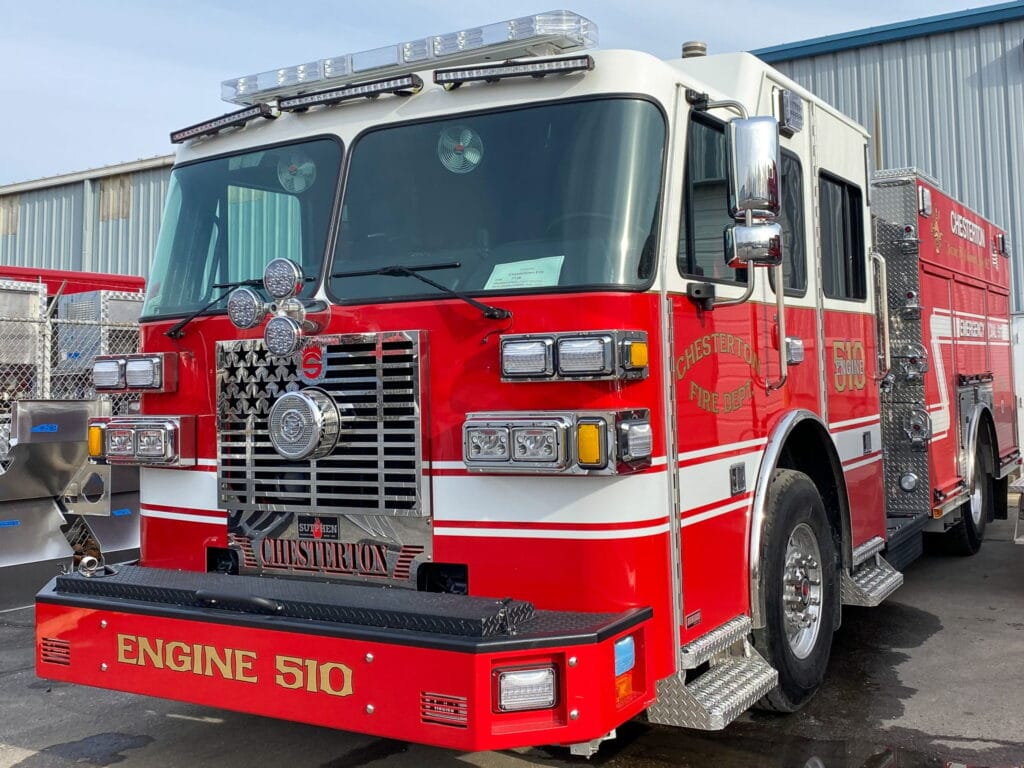

Chesterton Fire Department
Department City / State:
Chesterton, IN
Truck Type:
Sutphen Corporation – HS #7138
Dealer – Herb Fire
WHEELBASE: 185”
TRAVEL HEIGHT: 10’ – 6”
TRAVEL LENGTH: 31′ – 0 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 18,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- S101-1500 GPM, Single Stage
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 750-Gallon Water Tank
- 50-Gallon Foam Tank
- Foam System: Waterous Aquis 3.0
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll Up Compartment Doors
- 260 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G3 – Aluminum 40/51 Single Arm Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Camera System: FRC, Inview Trueview, Single Camera
- Roto-Ray Warning Light
- Hi-Viz 72” Brow Light
- Whelen Freedom LED Lightbar
- Guardian Scene Light
- Whelen LED Traffic Advisor
