Delivery Date:
07/16/2019
Department Name:
Champion Township Fire Department
Department City / State:
Warren, OH

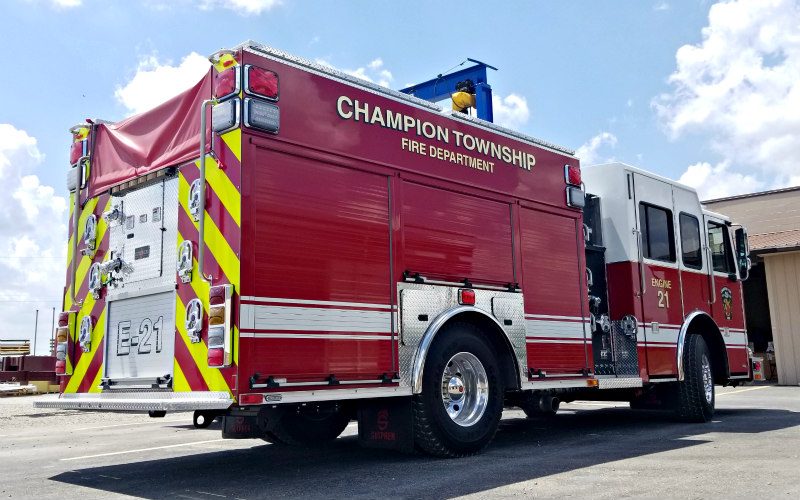

Sutphen Corporation – HS #6427

Dealer – Herb Fire Equipment

WHEEL BASE: 175”

TRAVEL HEIGHT: 10′ – 2”

TRAVEL LENGTH: 30’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS 3000

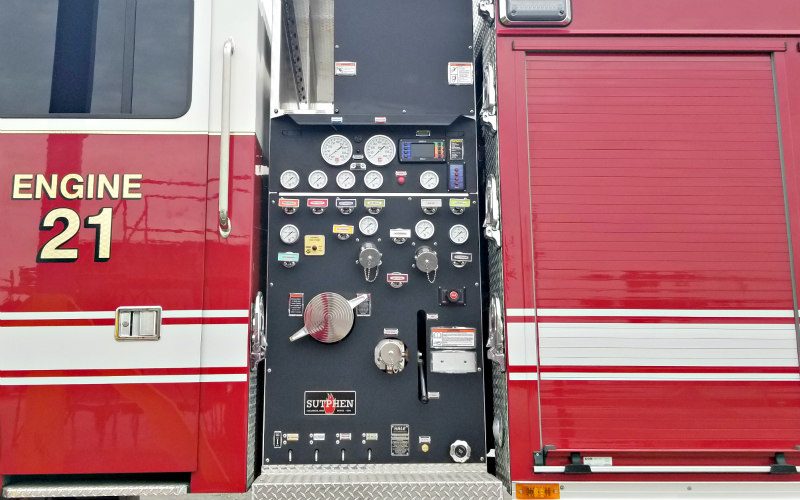

PUMP:                 Hale

  • DSD-1250 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors

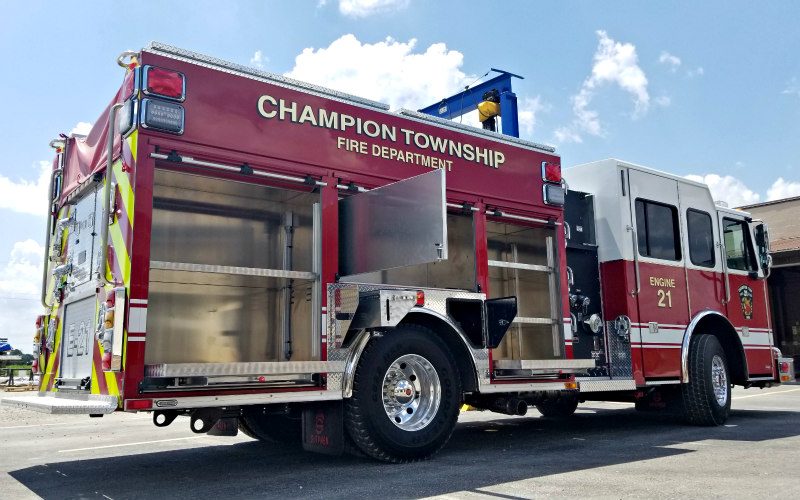

  • 294 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Camera System, Safety Vision SV-CLCD0-70
  • Oil Dry hopper with SCBA Cylinders (2 Triple, 1 Single)
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen 36” Traffic Advisor
  • FRC Spectra Telescopic Lights
  • FR Spectra LED, Brow 20K Lumens, 12V
