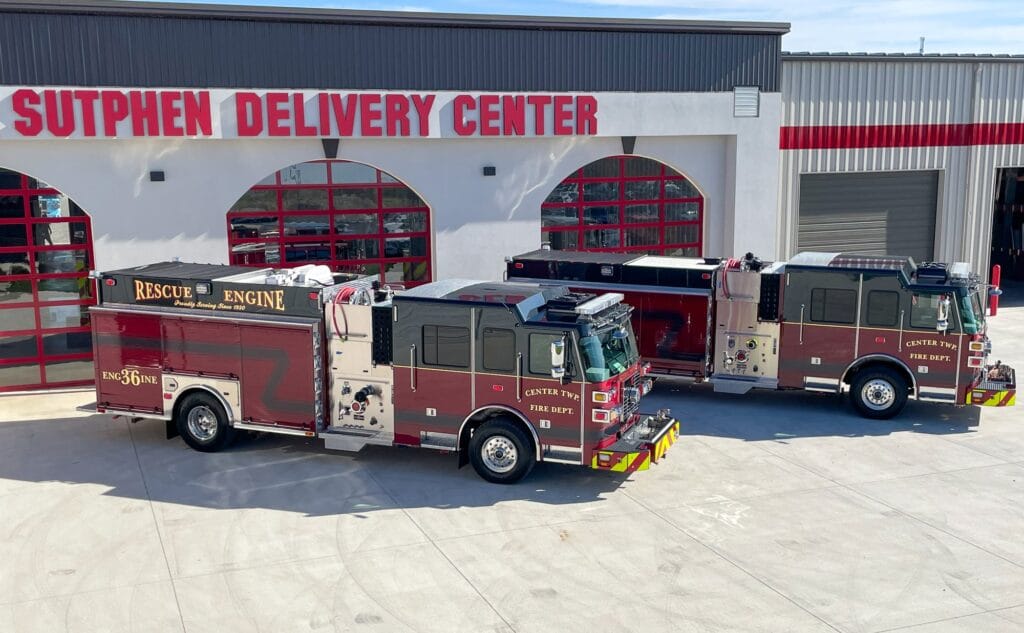

Delivery Date:
11/15/2023
Department Name:
Center Township Volunteer Fire Department
Department City / State:
Aliquippa, PA

Dealer: FAST of the Allegheny Mountains

WHEELBASE: 218 ½”

TRAVEL HEIGHT: 10’ – 4”

TRAVEL LENGTH: 34′ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Single Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (2) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 300 cu. ft. Total Compartment Space
  • Duo Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: PA-19 RES 56/53 Ladder Through Tank, 70” H ID Compartments

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Three Camera
  • Hannay Booster Reel
  • Whelen Freedom IV 72” LED Lightbar
  • FireTech 3-Piece 12V Brow
  • FireTech Guardian Elite 12V Scene Light
  • Whelen L31 Red Beacon
