Delivery Date:
06/16/2021
Department Name:
Cary Fire Protection District
Department City / State:
Cary, IL

Sutphen Corporation – HS #6716

Dealer – Legacy Fire Apparatus

WHEELBASE: 184”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 32′ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

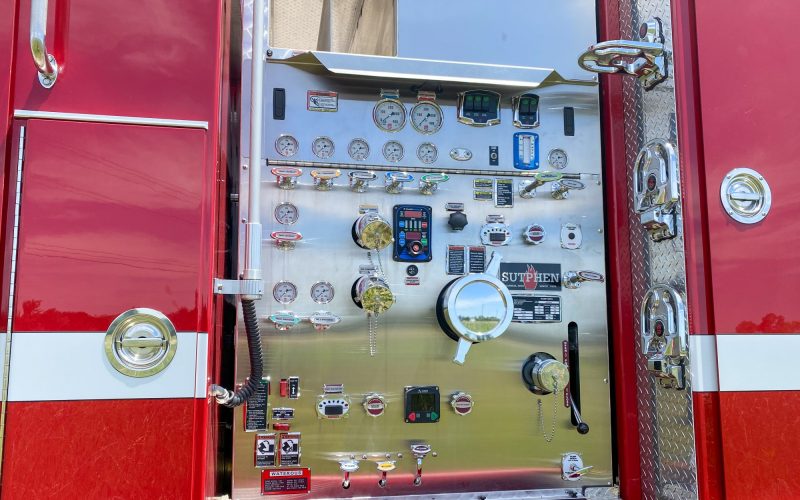

PUMP:                  Waterous

  • Waterous CSU-1500 Single Stage
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank

BODY:                  Sutphen

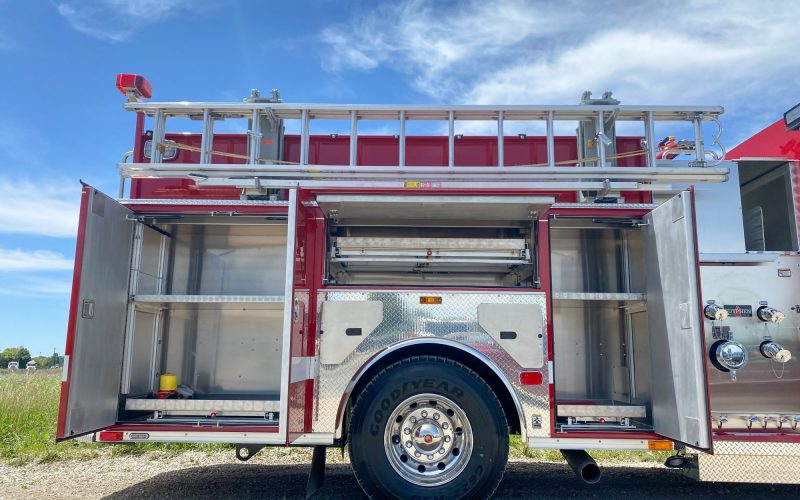

  • Hinged Aluminum Compartment Doors
  • Over 240 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: 900A 24’ 2-Section, 775A 14’ Roof, 10’ Folding
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Body S4-Alum 31/53 Elec Ladder Rack

ADDITIONAL EQUIPMENT:

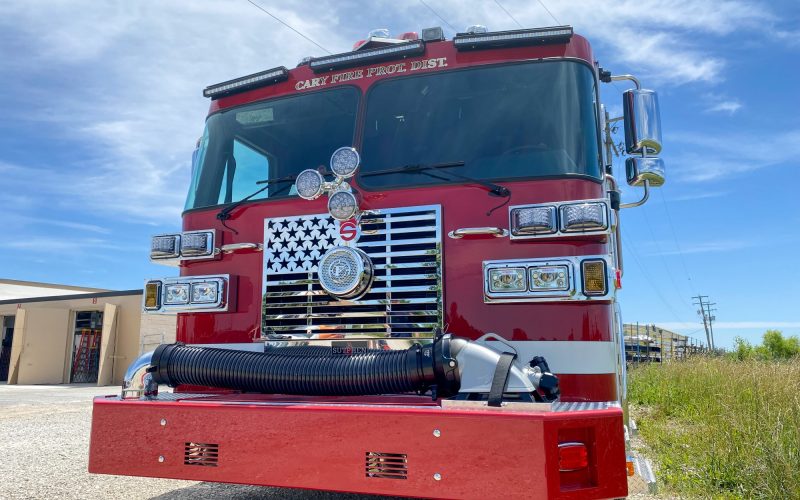

  • 24” Formed Steel Channel Bumper Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview
  • Roto-Ray Warning Light
  • Firetech 72” 3-Piece 12V LED Brow Light
  • Federal Signal VSLR6 Split Light Bar
  • 792HM GTT Strobe Emitter
  • Whelen 600 Rota-Beam Warning Lights
  • Whelen Pioneer PFH2 12V Tele Lights
  • Whelen 900 Scene Lights
