Delivery Date:
01/27/2025
Department Name:

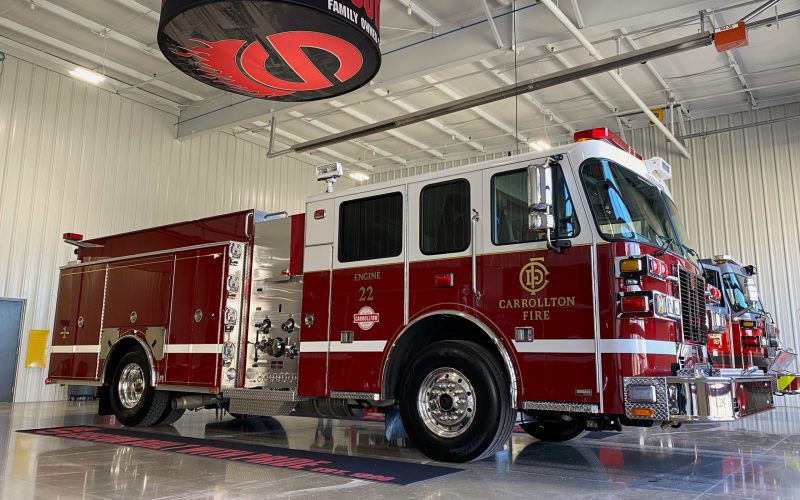

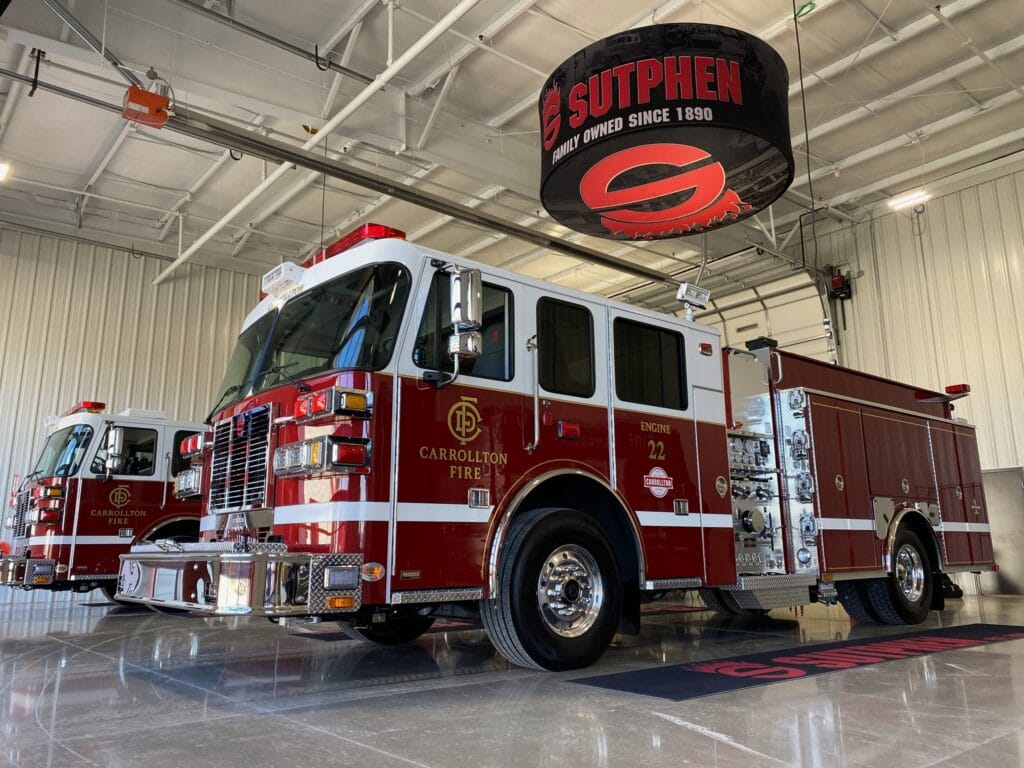

Carrollton Fire Department
Department City / State:
Carrollton, GA

Dealer – Williams Fire Apparatus

WHEELBASE: 196 ½”

TRAVEL HEIGHT: 9’ – 11 ½”

TRAVEL LENGTH: 32’ – 2 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4500

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam Eductor: Akron 125 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • Over 250 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: S9 – Alum 43/53 Lad Thru Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Electric Siren, Whelen 295HFS2, Remote Flush Mount
  • Camera System: Voyager 2 (Wired)
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen PFH2 LED 12V Brow Light
  • FireTech FT-MB-9-TR-FT 12V Scene Lights
  • Whelen PFH2 12V Fixed, LED
  • Whelen McFled Rear Beacons
  • FireTech Work Lights
