Delivery Date:
11/19/2020
Department Name:

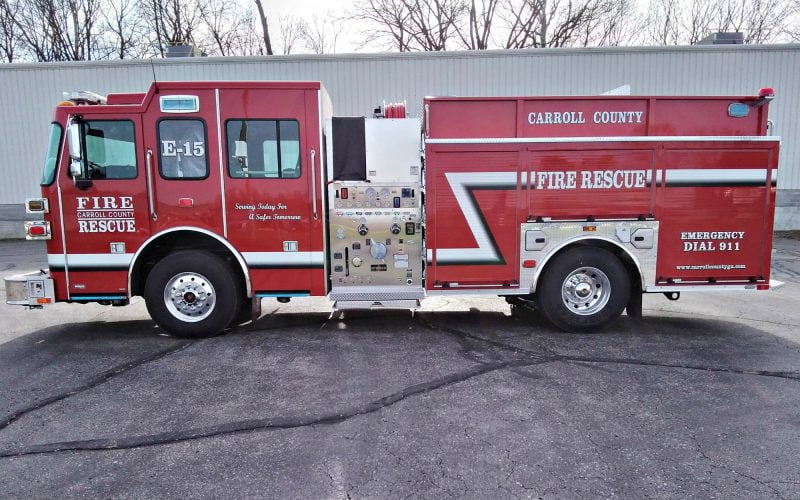

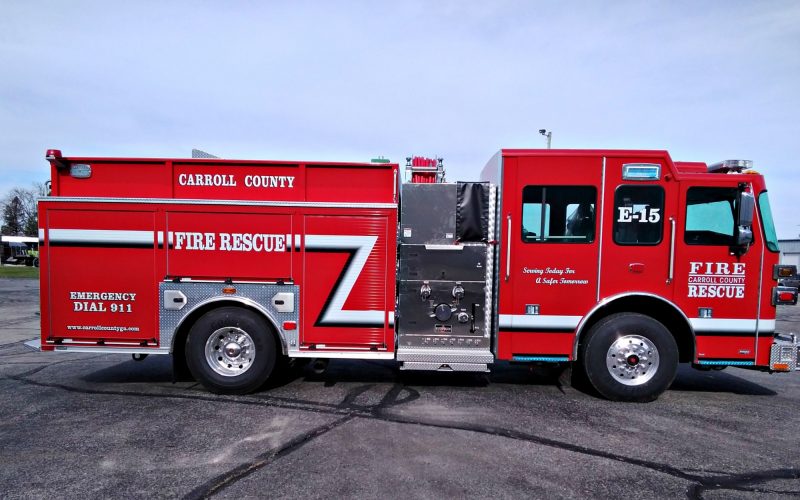

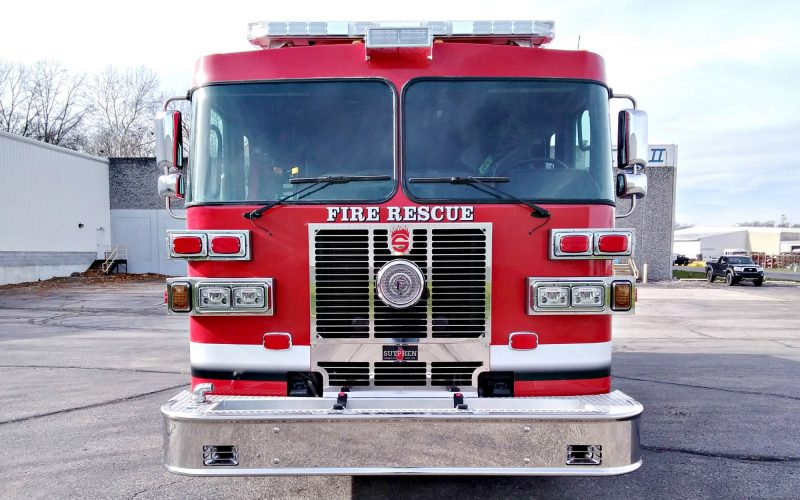

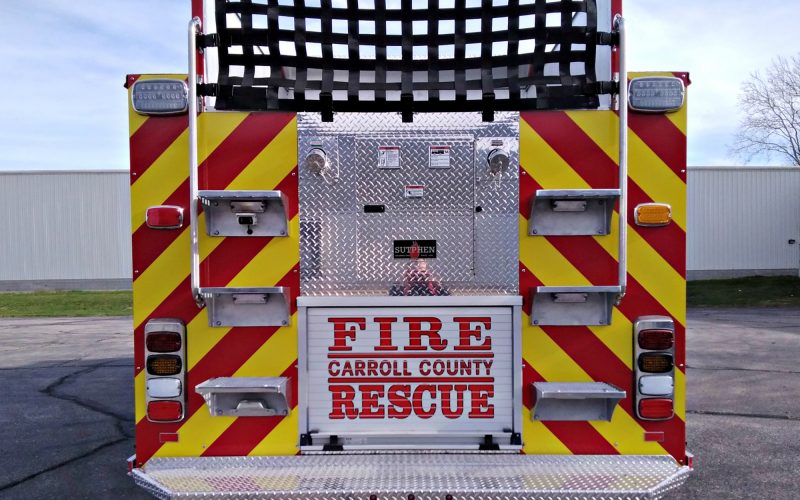

Carroll County Fire Department
Department City / State:
Carrollton, GA
Truck Type:
Sutphen Corporation – HS #6477-78
Dealer – Williams Fire Apparatus
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: FoamPro 2002, 5.0 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: G9 – Alum 40/51 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Safety Vision SV-CLCD0-70
- Whelen PFH1 LED Brow Light
- Whelen Freedom 12 LED Lightbar
- Whelen PFH2 12V LED Scene Lights
- Whelen M9 Scene Lights
