Delivery Date:
06/30/2020
Department Name:
Carlisle Township
Department City / State:
Lagrange, OH
Truck Type:
Sutphen Corporation – HS #6585
Dealer – Herb Fire
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Single Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ Swivel & Poly Lift-out Tray
- Crosslay: (1) 2 ½”
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Hale Smart Foam 2.1A Foam System
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 246 cu. ft. Base Compartment Space
- Alco-Lite Ladder Package (35’ 3-Section & 14’ Roof & 10’ Folding)
- Enclosed ladder chute
- Body: G9 – Alum 40/51
ADDITIONAL EQUIPMENT:

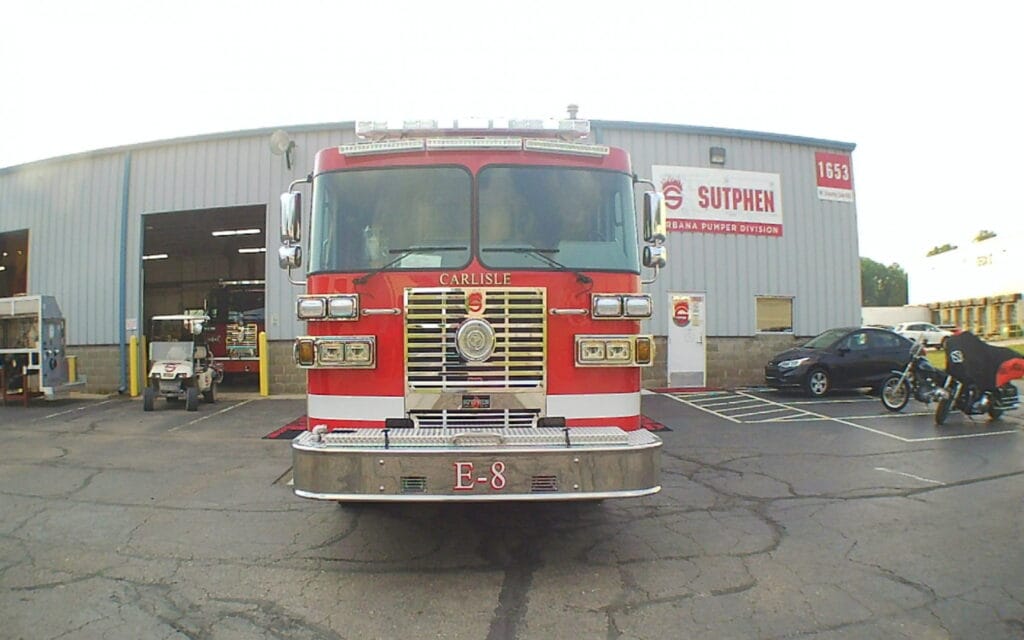

- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- 4 Bottle Compartments
- FRC, Inview Trueview Camera System
- SmartPower 6KW Generator
- Firetech 3-piece 72” Brow Light
- Whelen Freedom IV Lightbar
- Akron LED Scene Lights
- Akron 120v LED Telescopic Lights
- Whelen 600 Warning Lights
