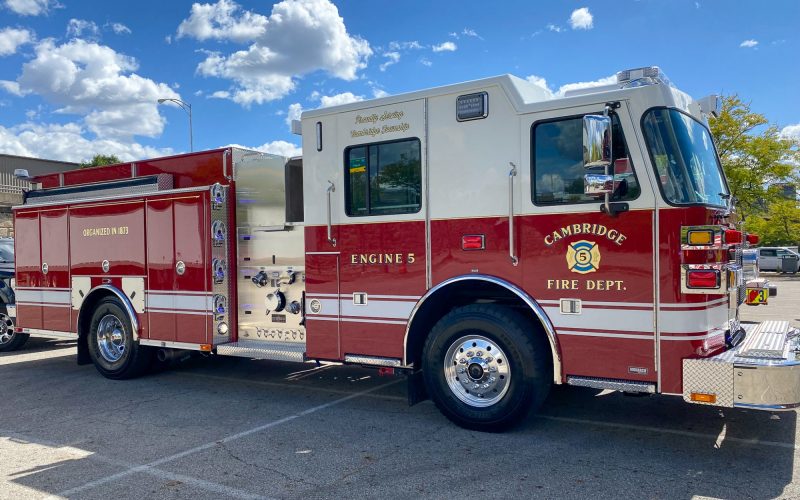

Delivery Date:
10/11/2022
Department Name:
Cambridge Fire Department
Department City / State:
Cambridge, OH
Truck Type:
Sutphen Corporation – HS #7014
Dealer – Heritage Fire Equipment
WHEELBASE: 199 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 9 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Duo Safety Ladder Compliment: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- 219 cu ft. Total Compartment Space
- Body: S2M – Aluminum 43/53 Ladder Chute / Lowered Hosebed
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Grover 2040 Air Horns (2)
- Whelen Freedom IV Rota-Beam 72” LED Lightbar
- FRC 12V Spectra LED Brow Light
- 12V FRC Spectra Tele Lights
- Whelen 900 12V Scene Lights
