Delivery Date:
09/08/2018
Department Name:
Burlington Fire Department
Department City / State:
Burlington, NC
Truck Type:
WHEEL BASE: 190”
TRAVEL HEIGHT: 9’-6”
TRAVEL LENGTH: 32’-6”
CHASSIS: Sutphen Monarch Heacy-Duty Custom Chassis, 62” cab with a flat roof
- Four-Door, Four-Person Cab
- 10” Double Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS4000

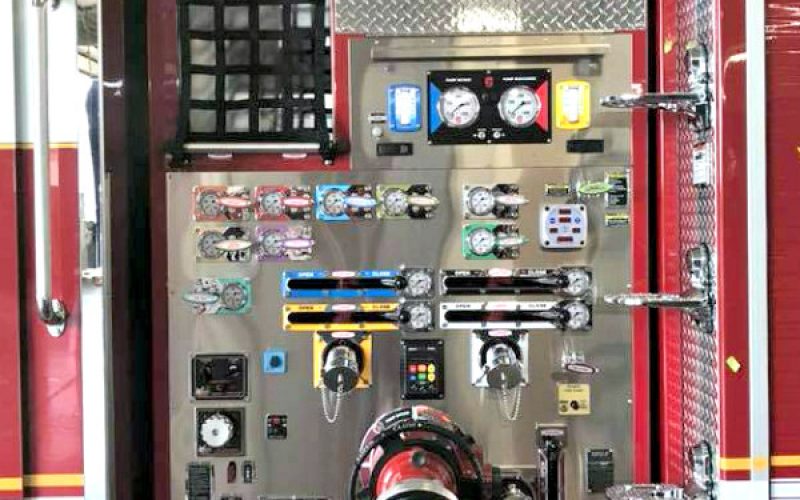

PUMP: Hale
- QMAX-1500 GPM
- Discharge: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2” Front Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 2” Front Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2”, 1 ½” Swivel
- 40-gallon foam tank
- 750-gallon water tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Rom Roll-Up Compartment Doors
- 234 cu. ft. Total Compartment Space
- Alco-Lite (24’ 2-Section, 14’ Roof, 10’ Folding)
- Ladder Chute
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 2” Raised Lid, and full-Width, Deep-Center Trough
- Federal Q2B Siren
- Smart Power 8kw Generator
- Hannay Electric Cord Reel, 100’ (1)
- Pike Pole Storage (3)
- Whelen Traffic Advisor
- Whelen 295HFS2 Electric Siren
