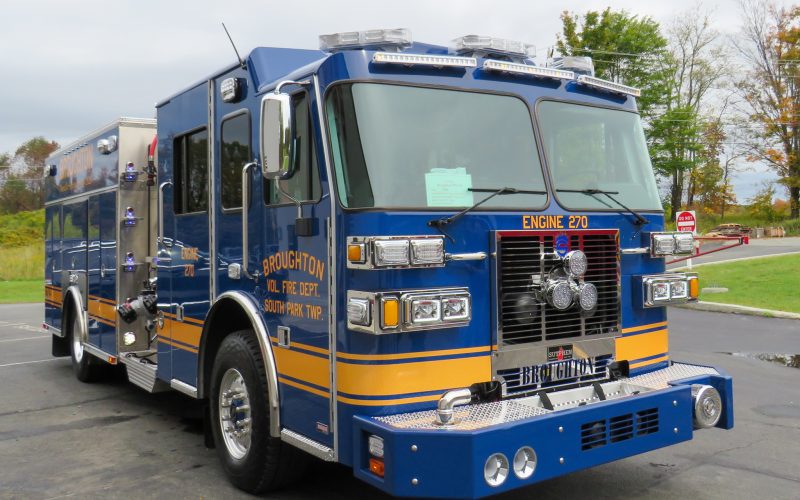

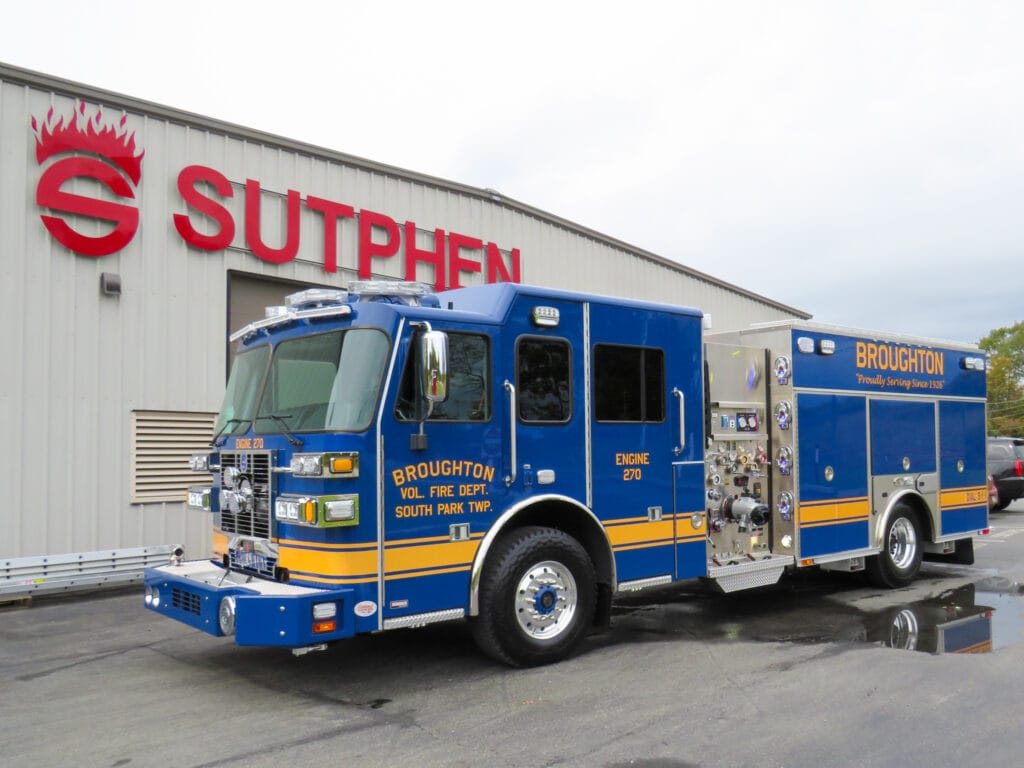

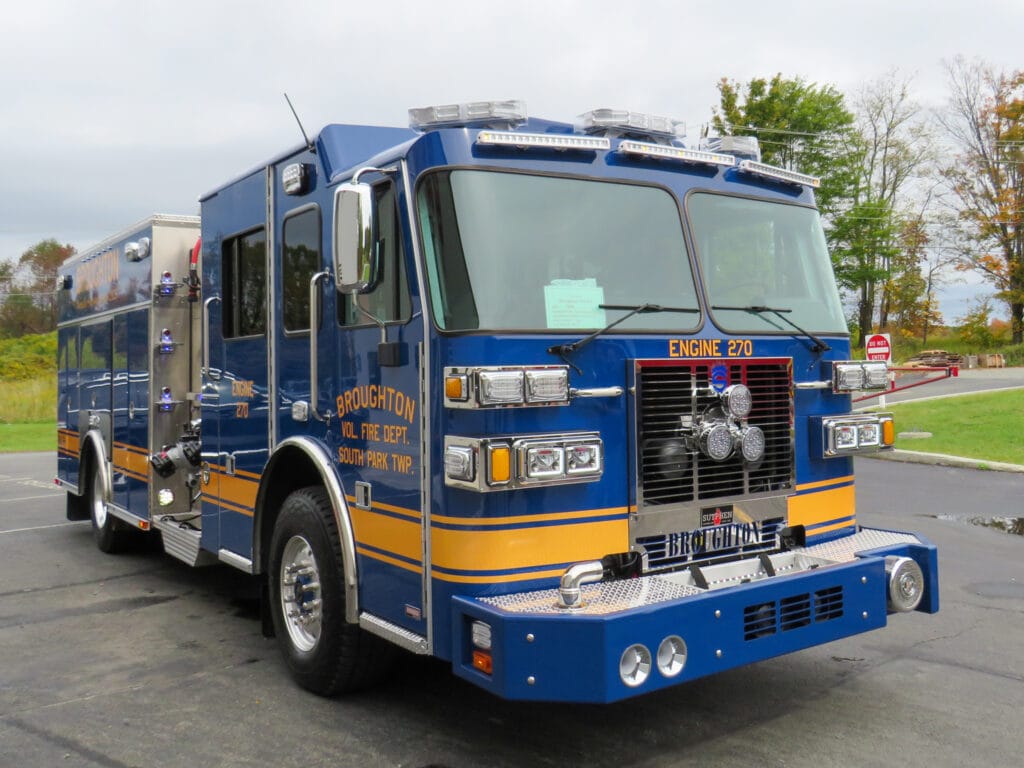

Delivery Date:
11/04/2024
Department Name:
Broughton VFD
Department City / State:
Pittsburgh, PA

Dealer: FAST of the Allegheny Mountains

WHEELBASE: 209”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 10”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raise Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hose Bed, (1) 2 ½” Front Bumper & (1) 3” Deck Gun
  • Crosslays: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                 Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Door
  • Over 353 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: PS-09 – Res 50/47 Ladder Chute & Hatch

ADDITIONAL EQUIPMENT:

  • 18” Polished Steel, Bumper Extension
  • Federal Q2B Siren, Flush Bumper Mount
  • Camera System: FRC, Inview Trueview, Single Camera (Wired)
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 6KW
  • Roto-Ray Warning Light
  • Whelen Freedom IV LED Light Bars (3)
  • FireTech 3-Piece 72” LED Brow Light
  • FRC Spectra Tele Light
