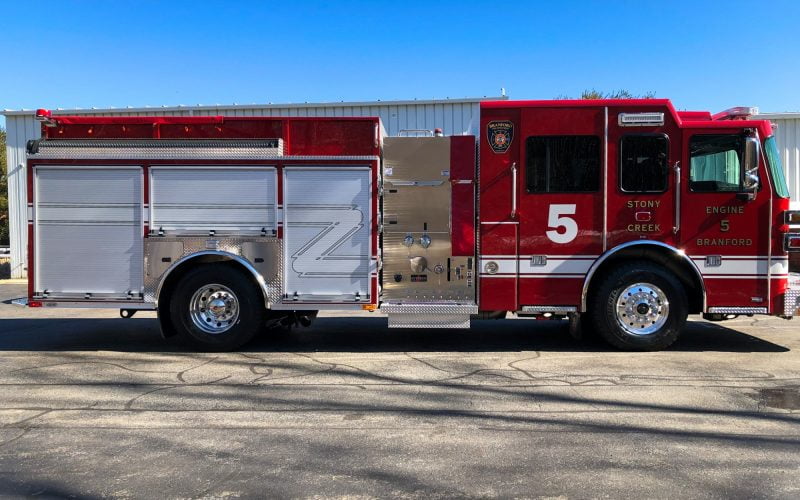

Delivery Date:
04/01/2021
Department Name:
Branford FD / Stony Creek Fire Company
Department City / State:
Branford, CT
Truck Type:
Sutphen Corporation – HS #6802
Dealer – Shipman’s Fire Equipment
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof
- Four-Door, Six-Person Cab
- 10” Double Rails, Single Axle (50K PSI)
- Front Suspension 20,000 lbs.
- Rear Suspension Firemaax 27,000lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS QMAX 1500-GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½ Front/Right of Main Hosebed, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”
- Speedlays: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-up Satin Finish Compartment Doors
- 222 cu. ft. Total Compartment Space
- Ladder Storage: Alco-Lite (PEL-24 24’ 2-Sec & PRL-14 14’ Roof & 10’ Folding)
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview Single Camera
- 10 SCBA Cylinder Compartments
- Whelen Freedom LED Lightbar
- Hi-ViZ 72” Brow Light
- FireTech FT-MB2.15 LED Scene Light
