Delivery Date:
12/21/2019
Department Name:
Bradley IAP Fire Department
Department City / State:
Windsor Locks, CT

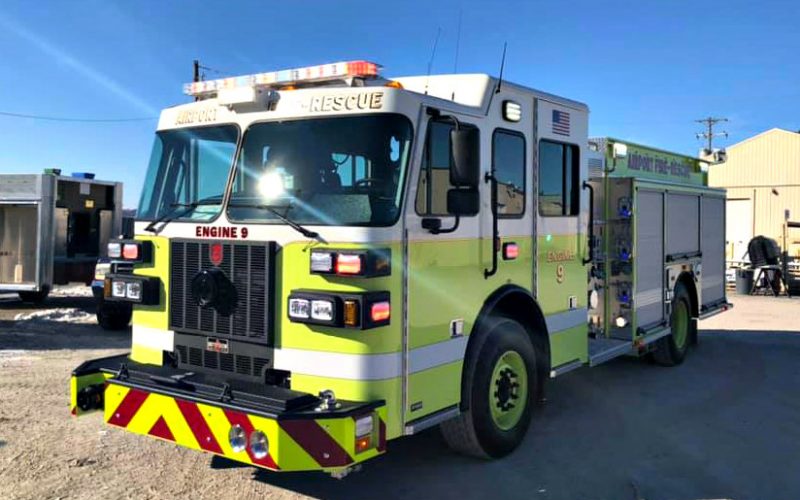

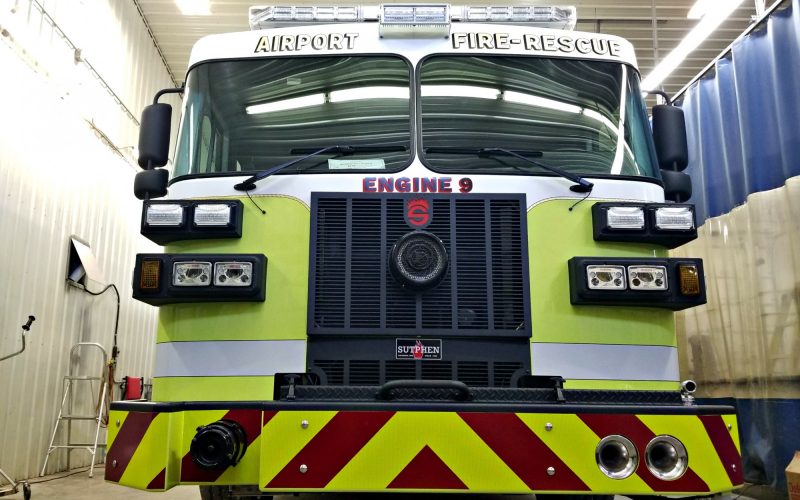

Truck Type:
Sutphen Corporation – HS #6416
Dealer – Five Star Fire
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 31’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000

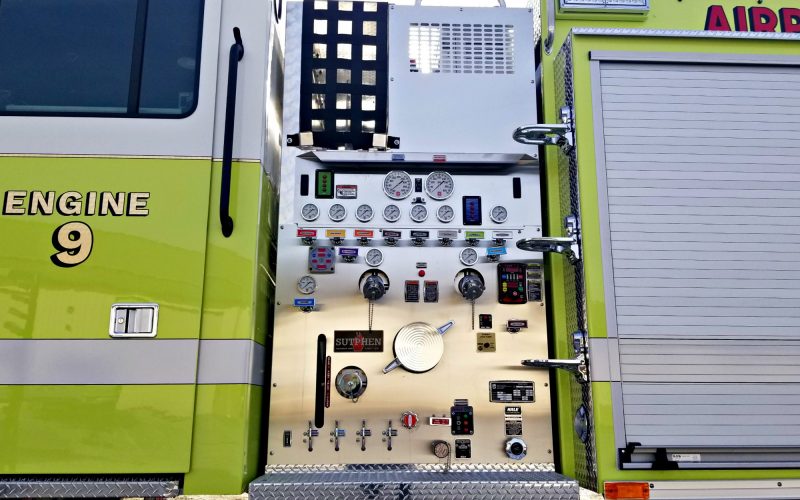

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 500-Gallon Water Tank
- 20-Gallon Foam Tank

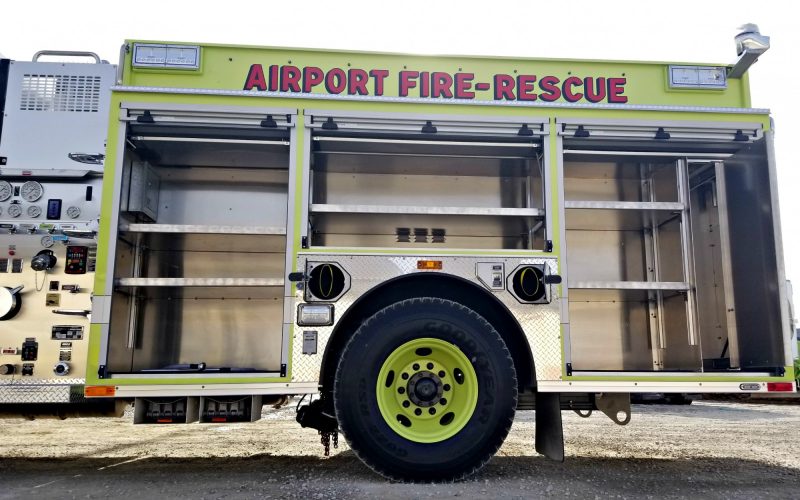

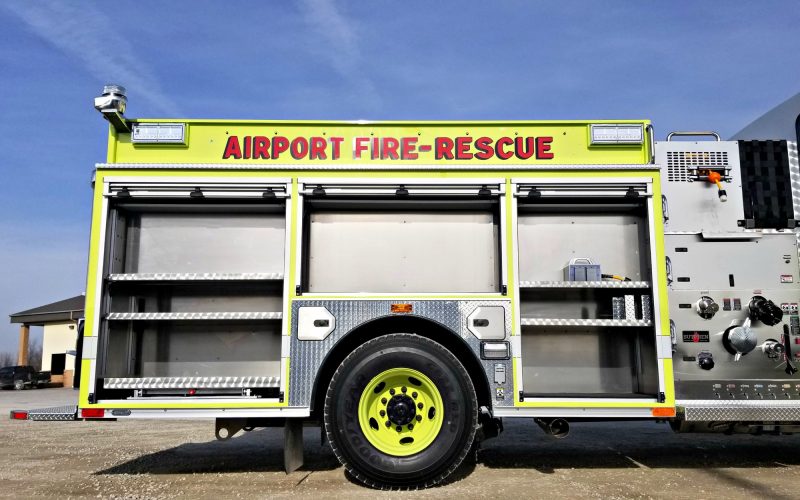

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)
- Ladder Chute w/ Backboard Storage
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Safety Vision SV-CLCD0-70, Camera System
- Hannay Electric Cord Reel, 200’ (1)
- 10KW Smart Power Generator
- Federal Q2B Siren, Grille Mount
- Wired Intercom, Firecom 5100D, Single Radio, 4-Positon
- Whelen PFP2 Brow Light
- Whelen Freedom LED lightbar
- Whelen Pioneer LED 120V Scene Light
- Whelen LED Traffic Advisor
- Whelen B6MM(A) Beacons
