Delivery Date:
10/10/2023

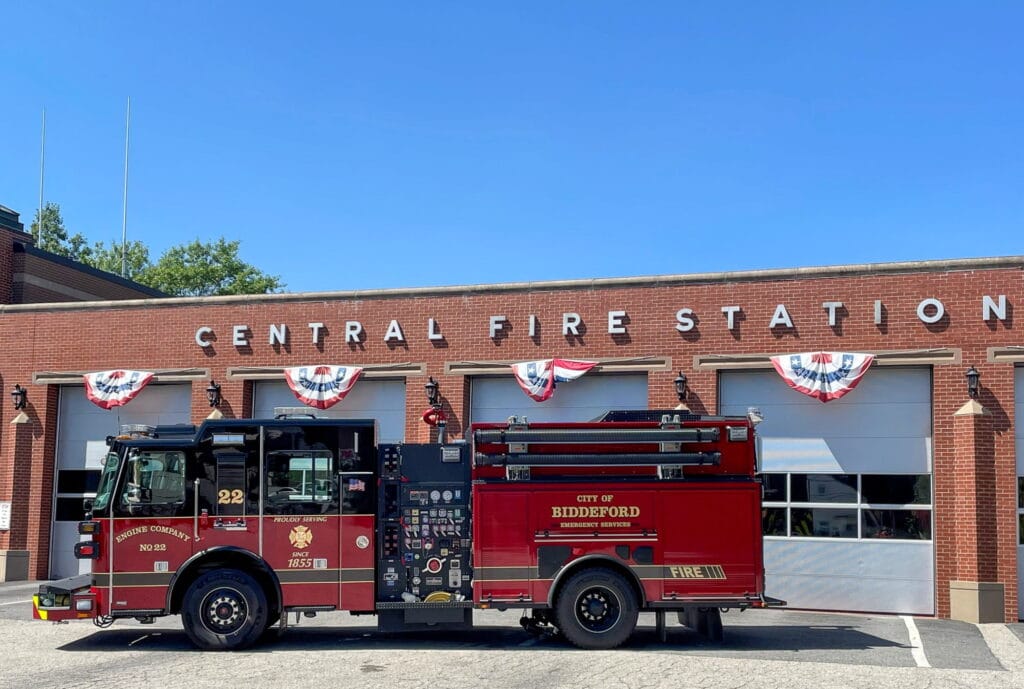

Department Name:
Biddeford Fire Department
Department City / State:
Biddeford, Maine
Truck Type:
Dealer – Dingee Machine
WHEELBASE: 185”
TRAVEL HEIGHT: 10’ – 5”
TRAVEL LENGTH: 31′ – 4 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 31,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Delco Remmy 40SI, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX XS-1500 GPM, Single Stage Pump
- Discharge: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 3” Pipe to Right Rear, (2) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 1 ½” w/ Liftout Tray, (1) 2 ½” Deadlay & (1) 2 ½” Crosslay
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: FoamPro 2002, 5.0 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 200 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: PA-01 RES 31/53 Electric Ladder Rack
ADDITIONAL EQUIPMENT:
- 24” Extreme Duty Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Ziamatic Quic-Lift Electric Hard Suction Rack, Extend Down
- Ziamatic Quic-Lift Electris Ladder Rack, Extend Down
- Whelen 72” Freedom Lightbar
- Whelen PFH2 Brow Lights (2)
- Whelen 21” Freedom Lightbars
- Whelen PFH2 Scene Lights
- Whelen 36” Traffic Advisor
