Delivery Date:
05/24/2022
Department Name:
Berryhill Fire Protection District
Department City / State:
Tulsa, OK
Truck Type:
Sutphen Corporation – HS #7123
Dealer – Heartland Fire Trucks
WHEELBASE: 170”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 29′ – 7”

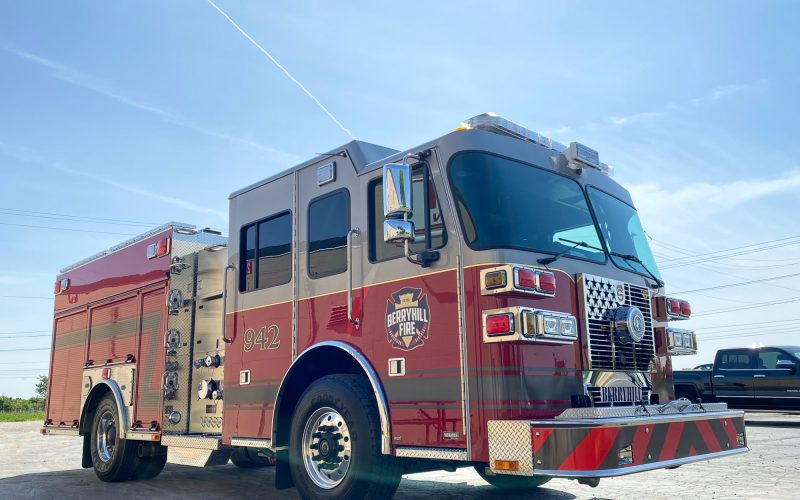

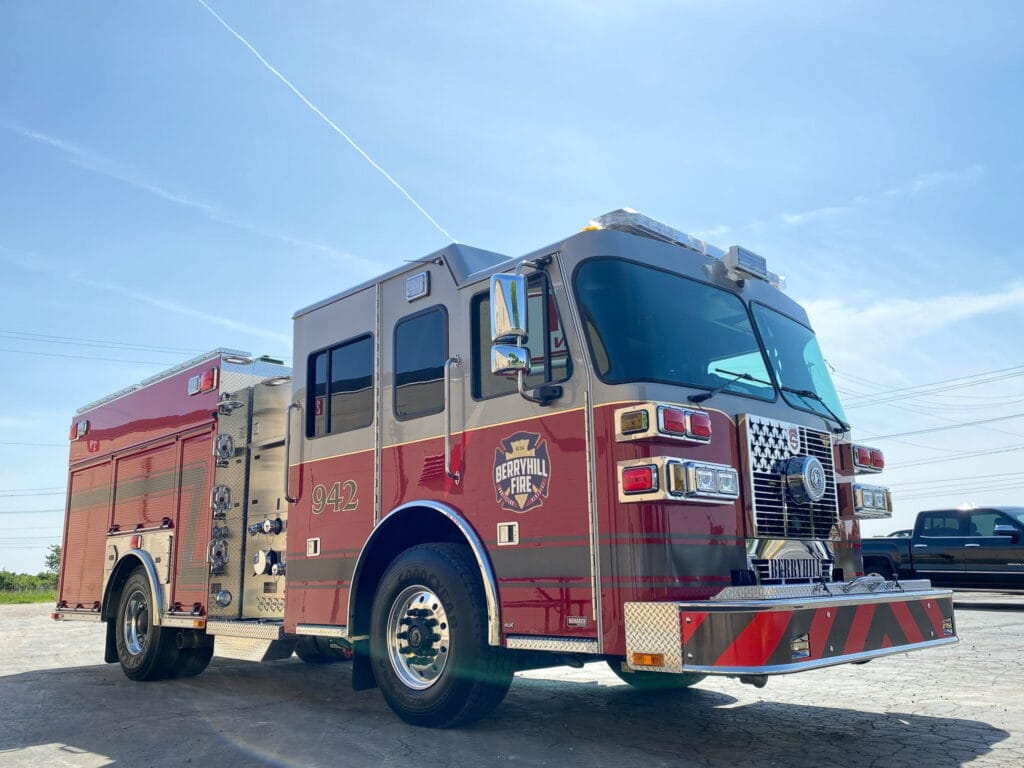

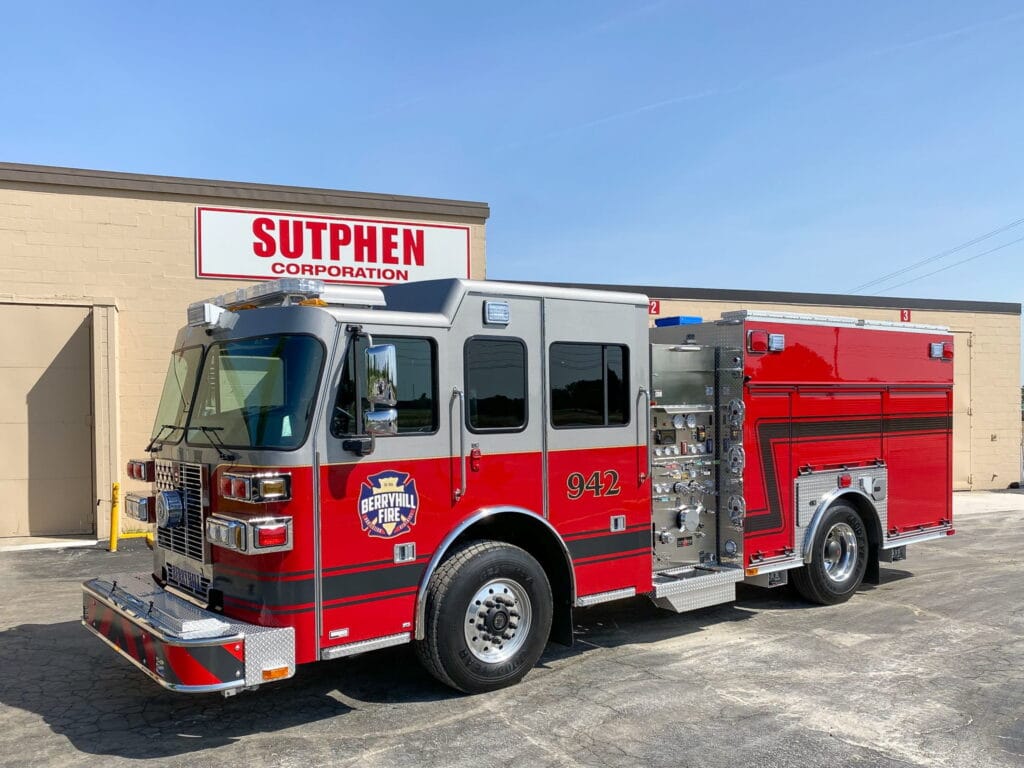

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000

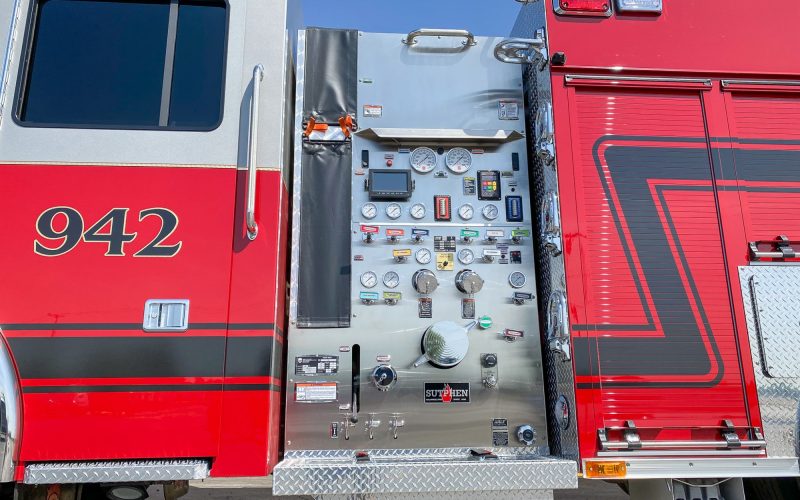

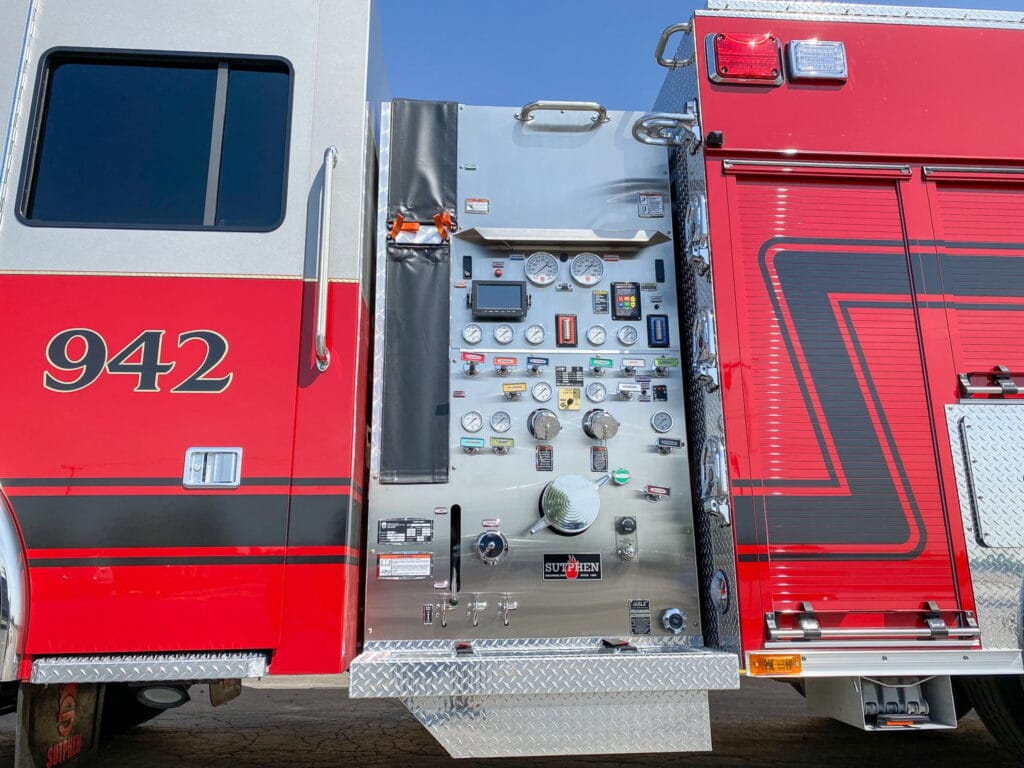

PUMP: Hale
- XS QMAX 2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½” Crosslay
- Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
- 750 -Gallon Water Tank
- 30-Gallon Foam Tank

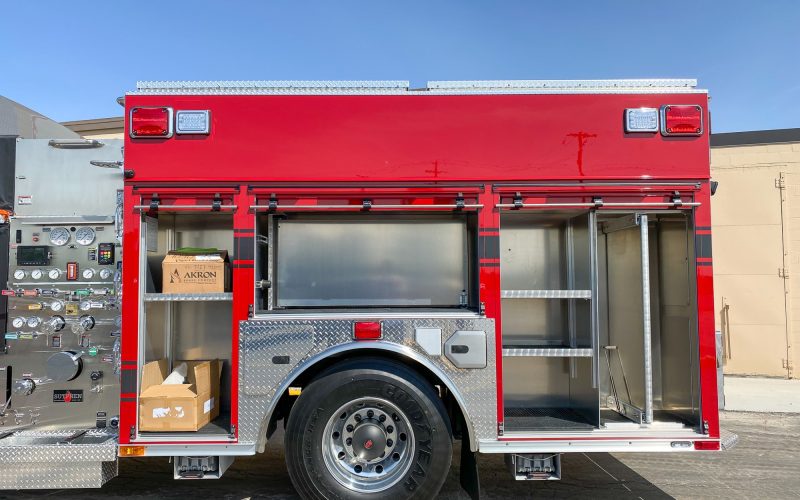

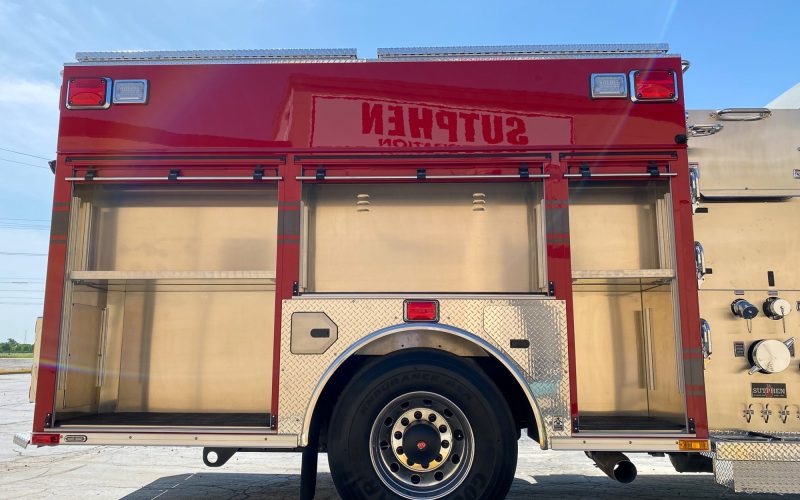

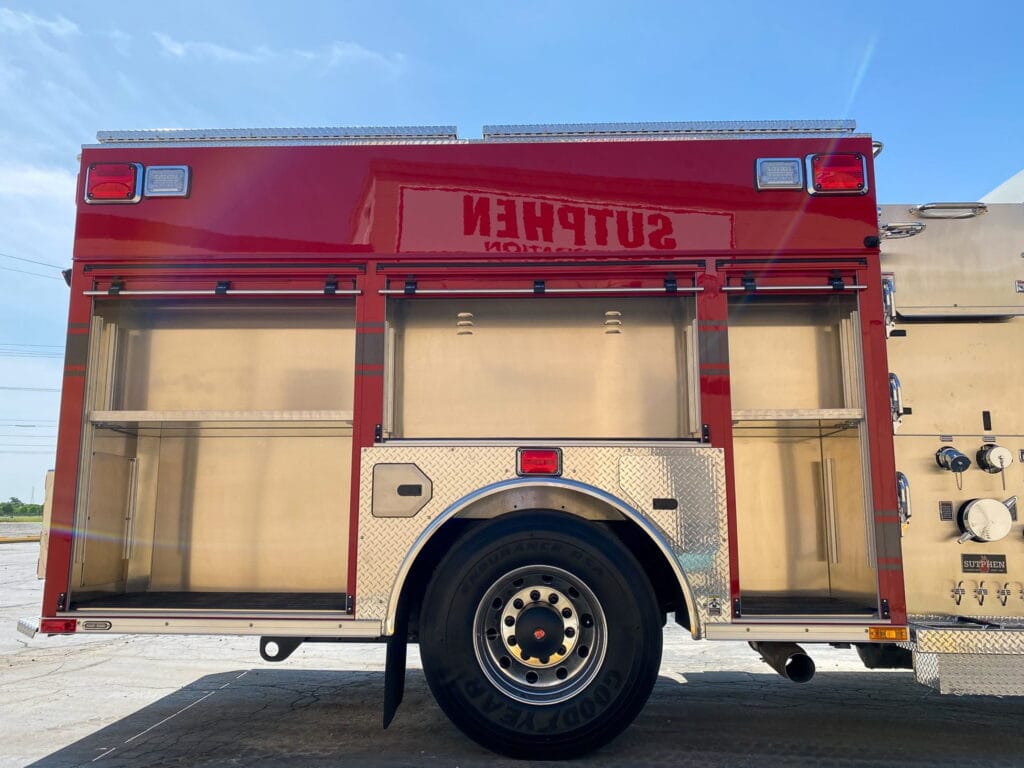

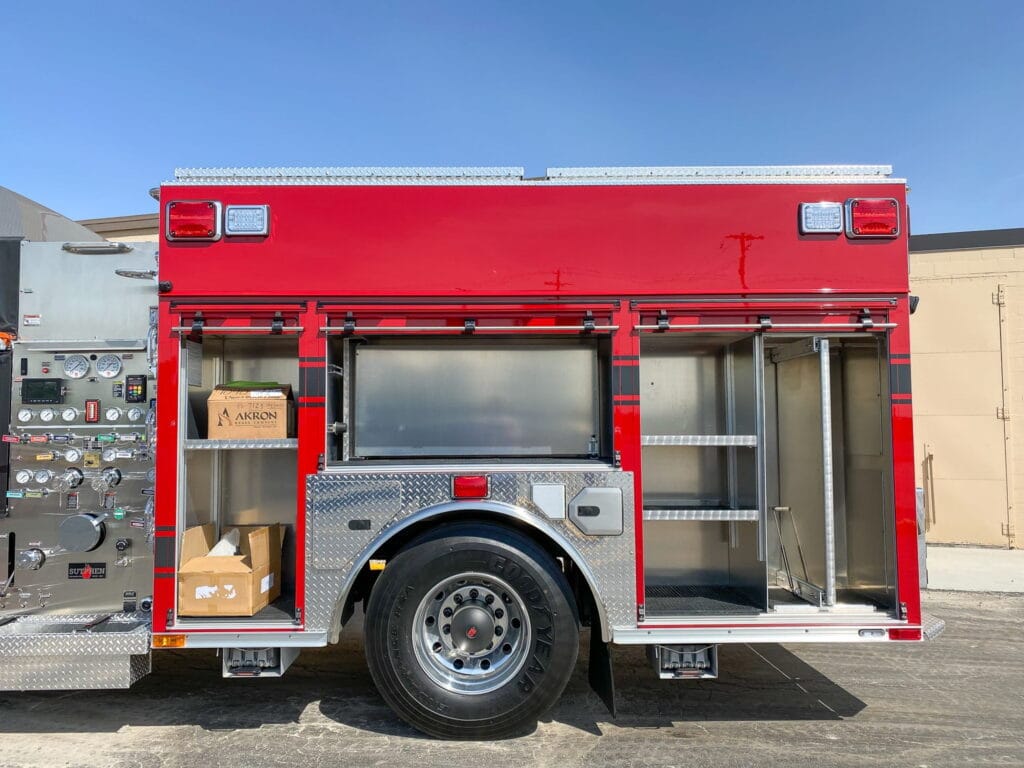

BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 244 cu. ft. Total Compartment Space
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC Inview 360HD
- Oil Dry Hopper
- FRC Spectra Brow Light
- Whelen Freedom LED Lightbar
- FRC 900 LED Scene Lights
- FireTech LED Work Lights
