Delivery Date:
07/20/2020
Department Name:
Belmont Fire Department
Department City / State:
Greenville, SC

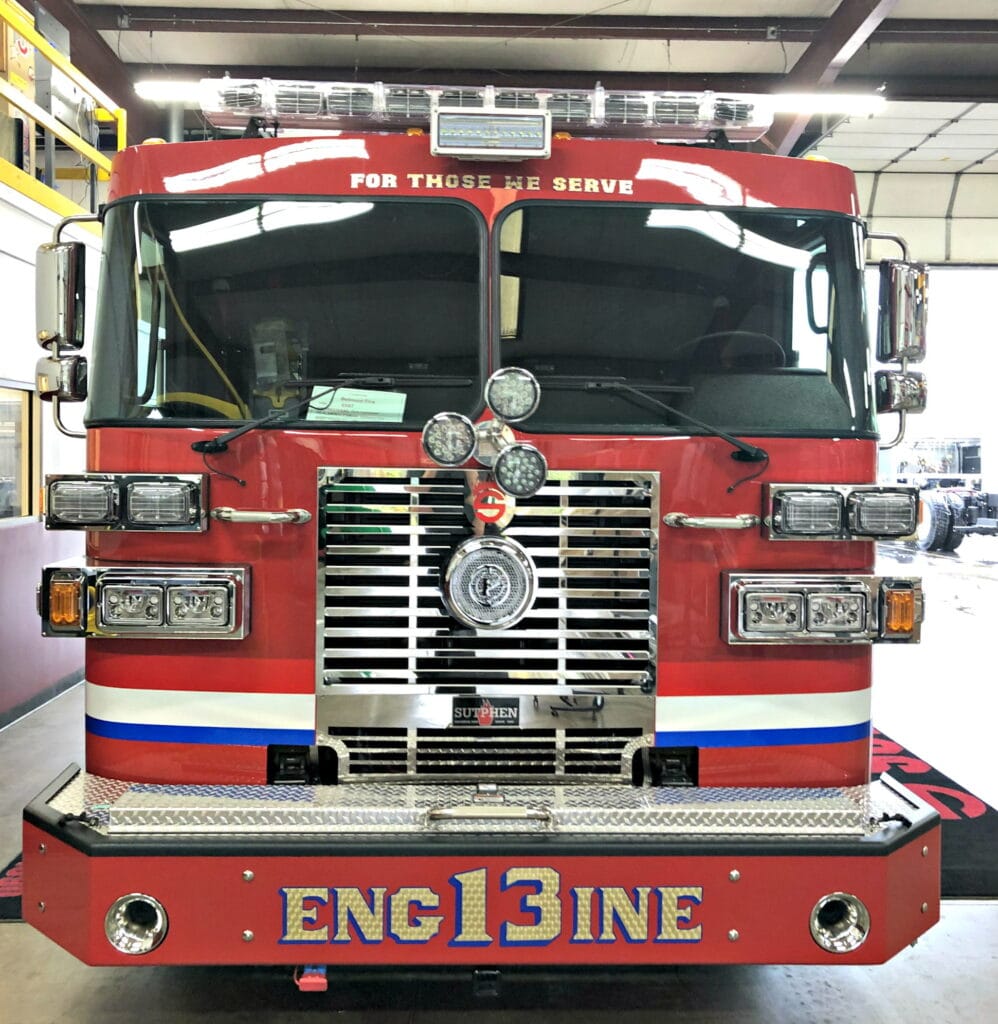

Truck Type:
Sutphen Corporation – HS #6587
Dealer – Williams Fire Apparatus
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 380 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS-QMAX-1,500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½” Valve Pumping
- Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Elkhart Foam System
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- 294 Cu. Ft. Compartment Space
- Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
- Enclosed Ladder Chute
- Body: G9-Alum 40/51
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview
- 6KW Smart Power Generator
- 3 Bottle Compartments
- FRC Spectra LED Brow Light
- Federal Navigator 73” Lightbar
- Federal FR9 LED Scene Lights
- Federal FR 9 Warning Lights
- Federal QL64 LED Red Lights
