Delivery Date:
08/24/2022
Department Name:
Belle Fire Department
Department City / State:
Belle, WV

Sutphen Corporation – HS #6999

Dealer – Heritage Fire Equipment

WHEELBASE: 169 – 0 ½”

TRAVEL HEIGHT: 9’ – 6 ½”

TRAVEL LENGTH: 28’ – 7 ½”

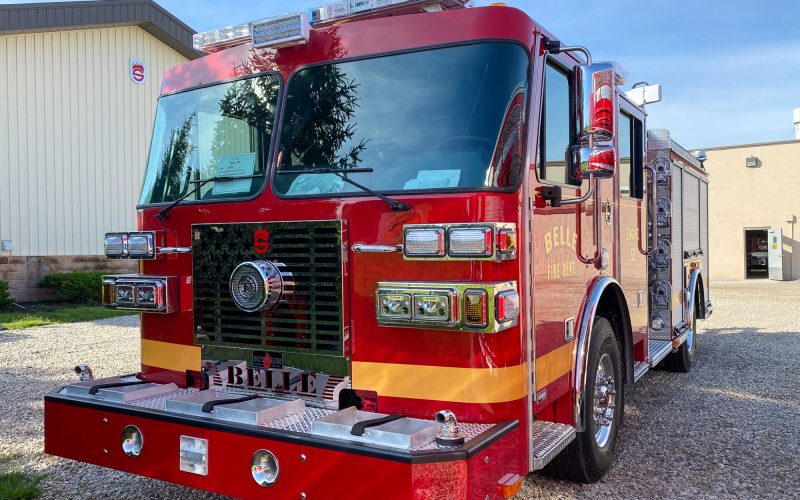

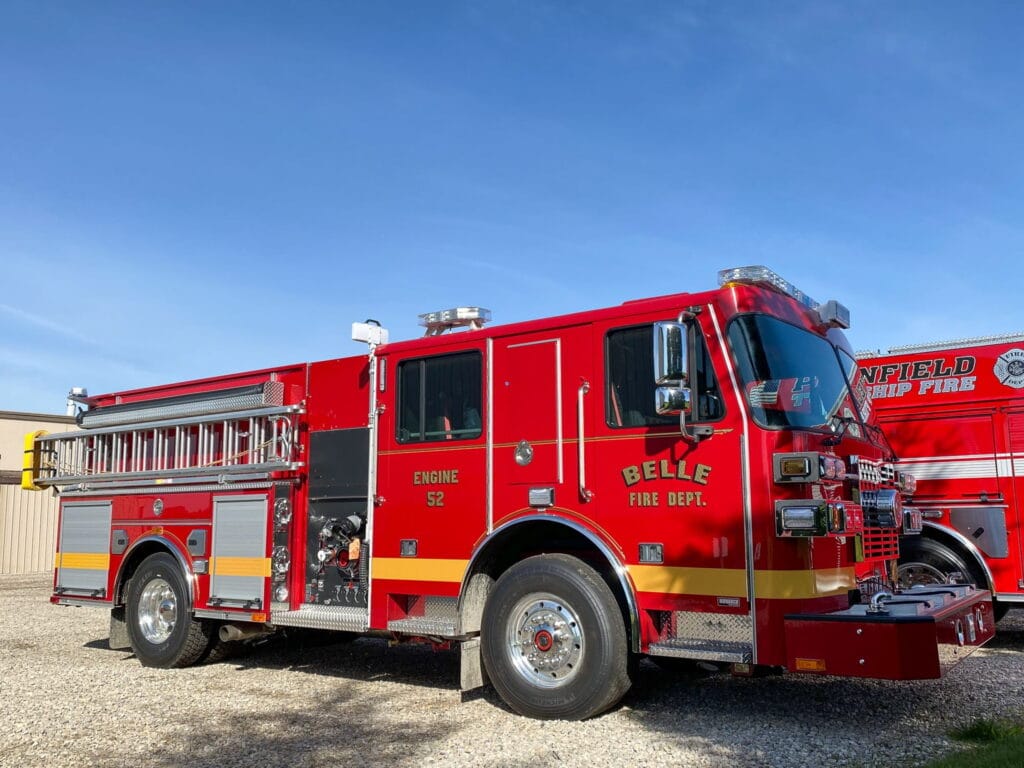

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Flat Cab

  • Four-Door, Five-Person Cab
  • 10” Single, Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QTWO-2000 GPM 6” Suction Two Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (2) 2 ½” Right Rear, (2) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank

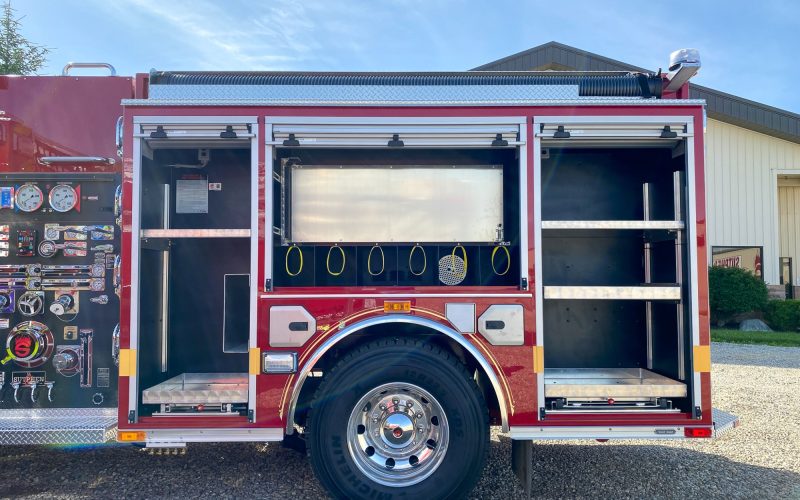

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-up Compartment Doors, Satin Finish
  • Over 170 cu. ft. Total Compartment Space

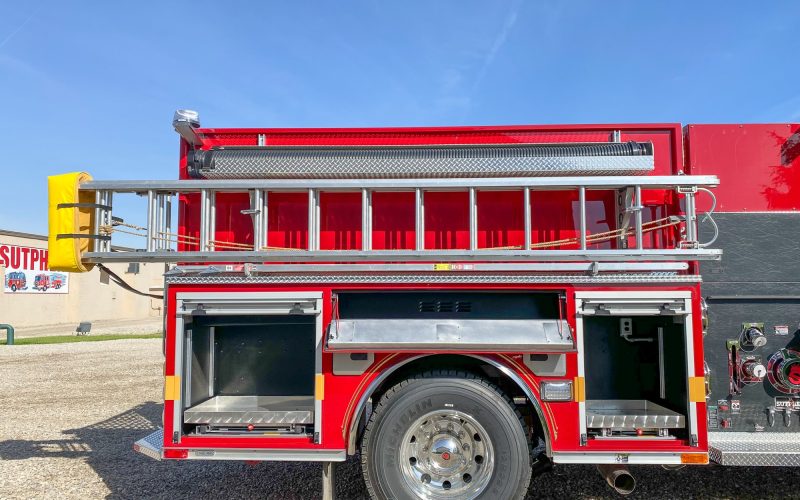

  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: PA-11 Res 31/37 Low Right w/ Chrome Brackets

ADDITIONAL EQUIPMENT:

  • 20” Formed Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Wired, Brigade, Single Camera
  • Whelen Freedom IV 72” LED Lightbar (12 Modules w/ Opticom)
  • FR Spectra 12V Brow
  • FR Spectra 12V Tele
  • Whelen Freedom 23” Mini Lightbar
