Delivery Date:
05/12/2022
Department Name:
Batavia Fire Department
Department City / State:
Batavia, IL

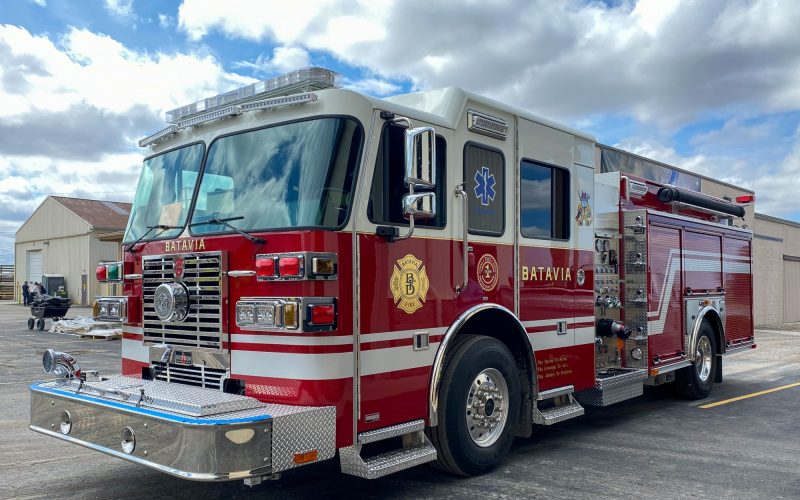

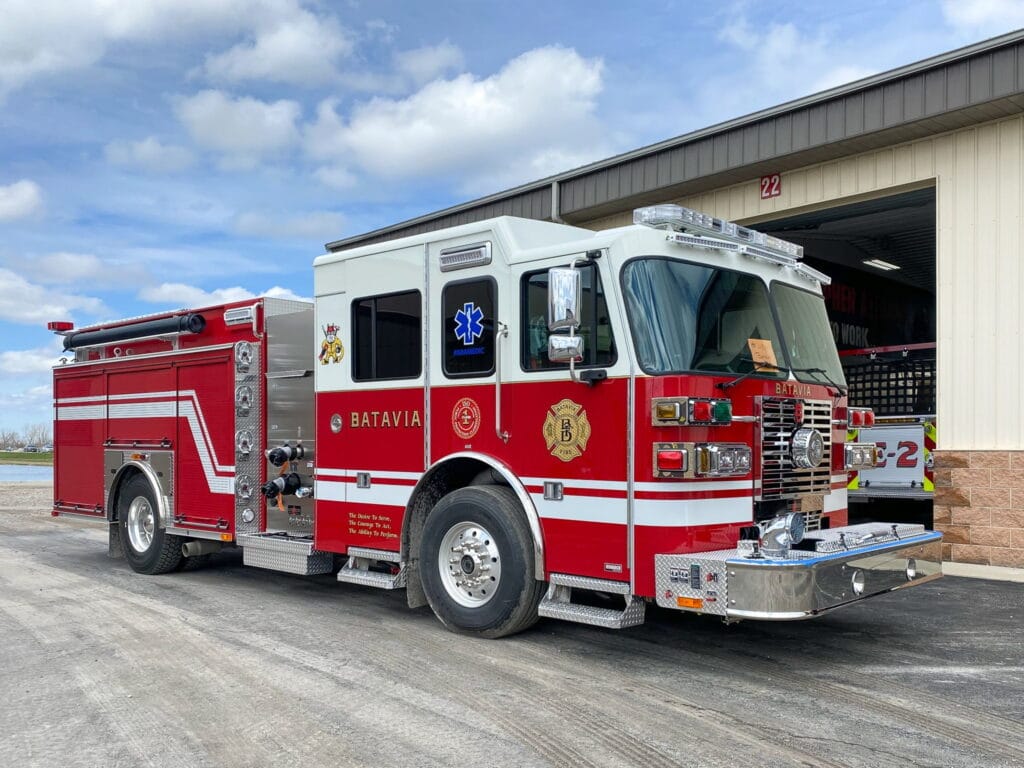

Truck Type:
Sutphen Corporation – HS #6935
Dealer – Legacy Fire Apparatus
WHEELBASE: 196 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 33’ – 0 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 270 AMP
- Transmission: Allison Gen 5, EVS 3000

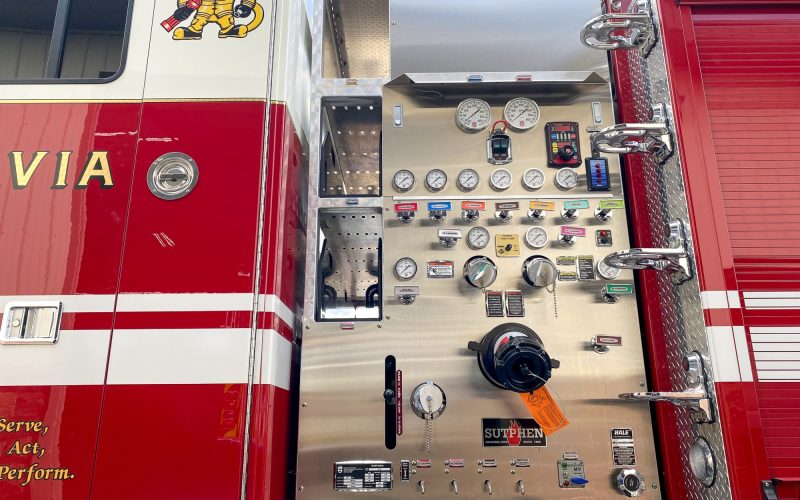

PUMP: Hale
- XS QMAX-1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (2) 3” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
- 1,000 Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors, Satin Finish
- Over 250 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: S2 Modified – Lowered Left and Center Hosebed – Aluminum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Intercom System: Firecom 5100D, Single Radio
- Whelen Freedon IV 72” LED Light Bar w/ GTT Opticom
- Whelen McFled Rear Beacons
- Firetech 3-Piece 72” 12V LED Brow Light
- Firetech FT-MB2.15 12V LED Scene Lights
