Delivery Date:
05/17/2023
Department Name:

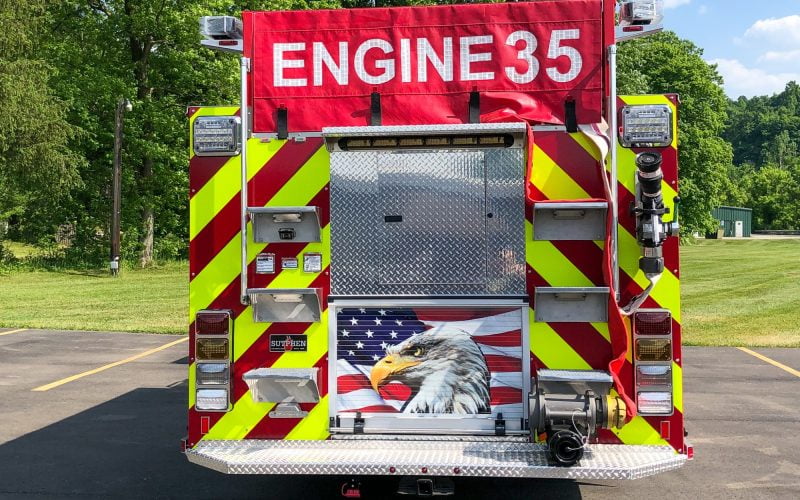

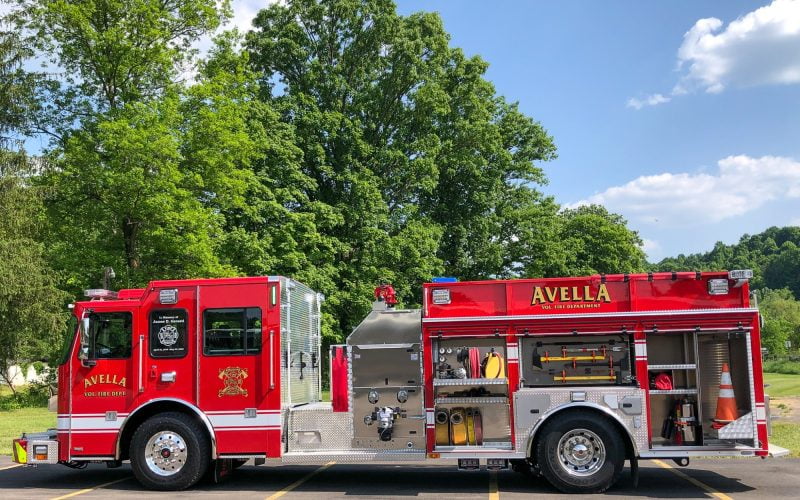

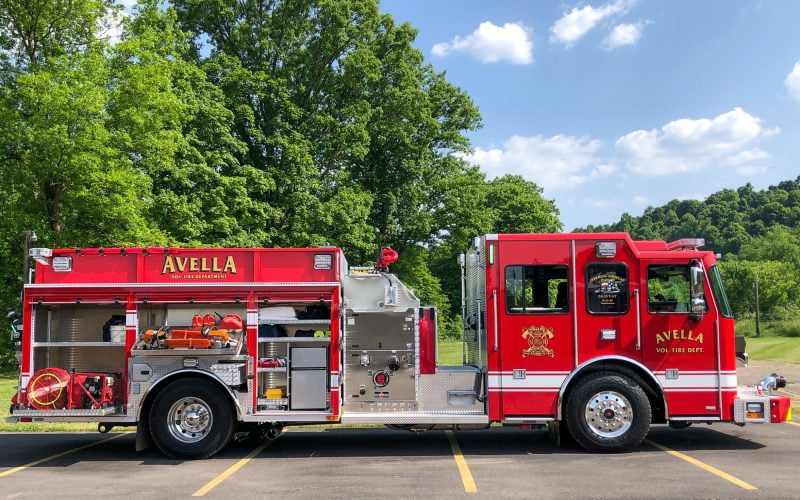

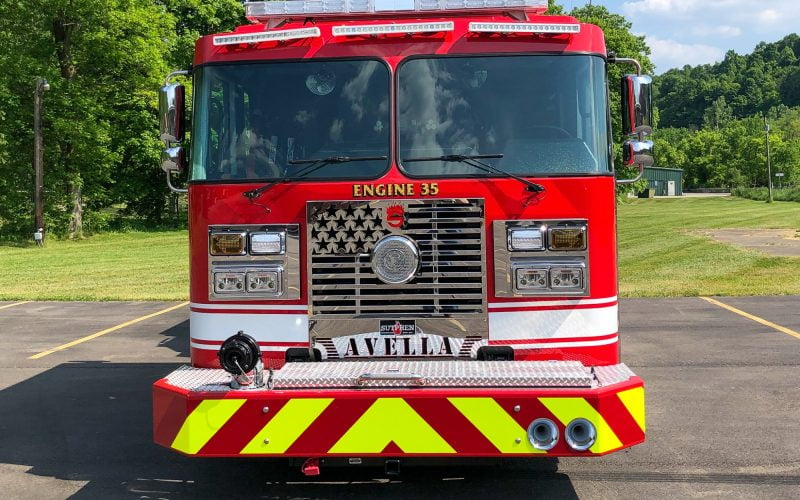

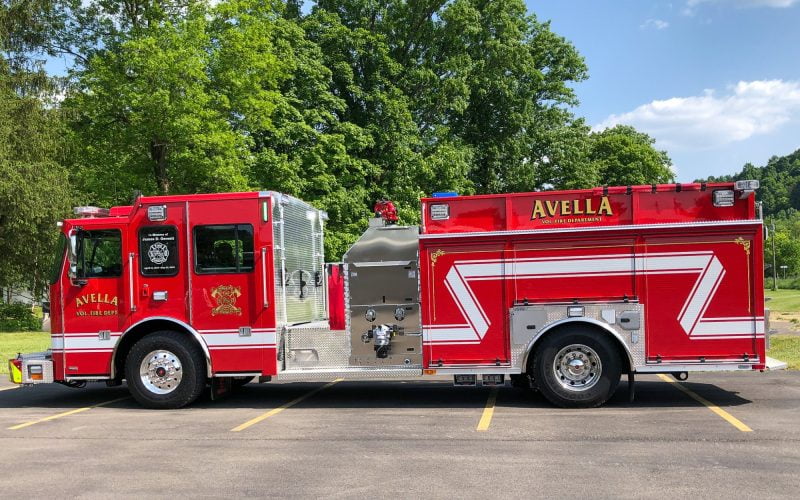

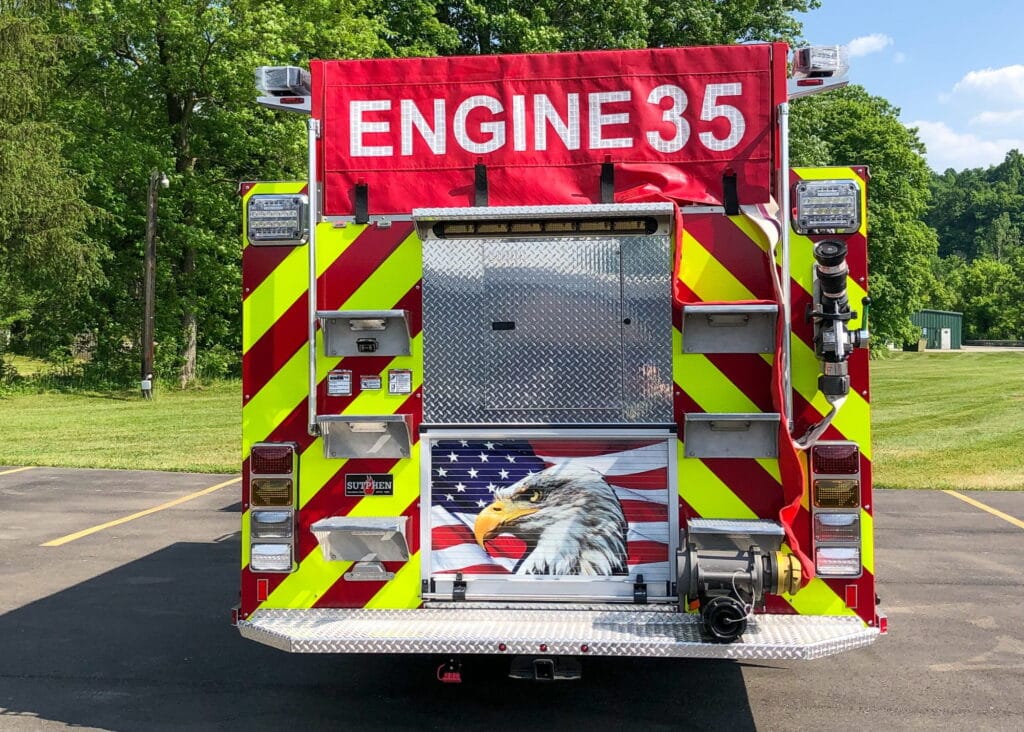

Avella Volunteer Fire Department
Department City / State:
Avella, PA
Truck Type:
Dealer – FAST of the Allegheny Mountains
WHEELBASE: 215”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 34′ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Akron Model 3126 By-Pass Eductor w/ Flush
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladder Through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Hannay Electric Cord Reel, 150’ (1)
- Hi-Viz 72” Brow Light
- Whelen Freedom LED Lightbar
- FRC Spectra Telescopic Lights
- FireTech Guardian Elite
- Whelen LED Traffic Advisor
- Whelen MCFLED Red Rotators
