More Recent Deliveries

Delivery Date:
01/09/2019
Department Name:
Ashtabula Fire Department
Department City / State:
Ashtabula, OH

Sutphen Corporation – HS #6249

Dealer – Herb Fire Equipment

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 31’-1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

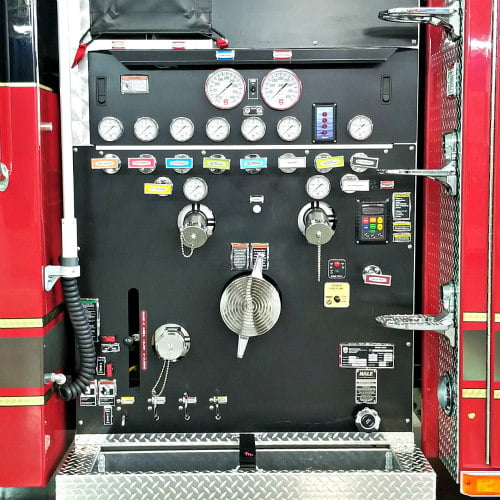

PUMP:                 Hale

  • QMAX-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 750-Gallon Water Tank

Body:                   Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • Over 231 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • FRC Spectra Max 12V LED Brow
  • Whelen LED Lightbar
  • Federal Q2B
  • 12” Bumper Extension
  • FRC Spectra Tele-Lights
  • Roto Ray
  • Whelen Freedom IV LED Lightbar
  • FRC, In-View 360 Guardian, with DVR Record, Camera System
