Delivery Date:
07/27/2022
Department Name:
Ardmore Fire Department
Department City / State:
Ardmore, OK
Truck Type:
Sutphen Corporation – HS #7076
Dealer – Heartland Fire Trucks
WHEELBASE: 226”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34’ – 9”

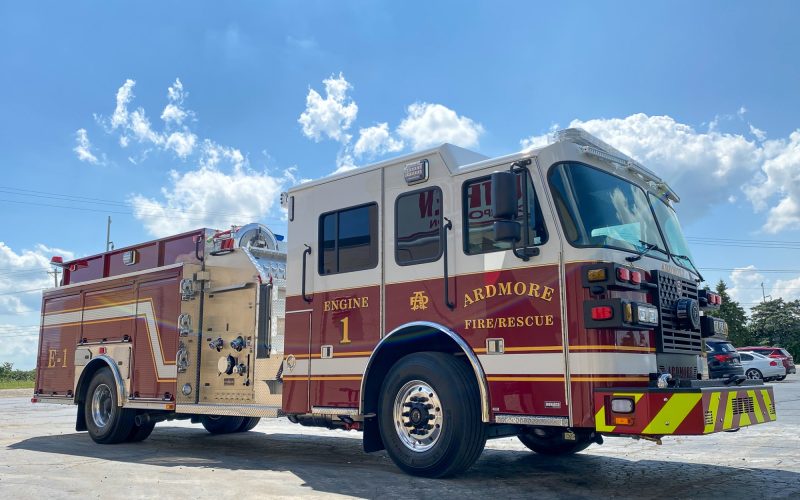

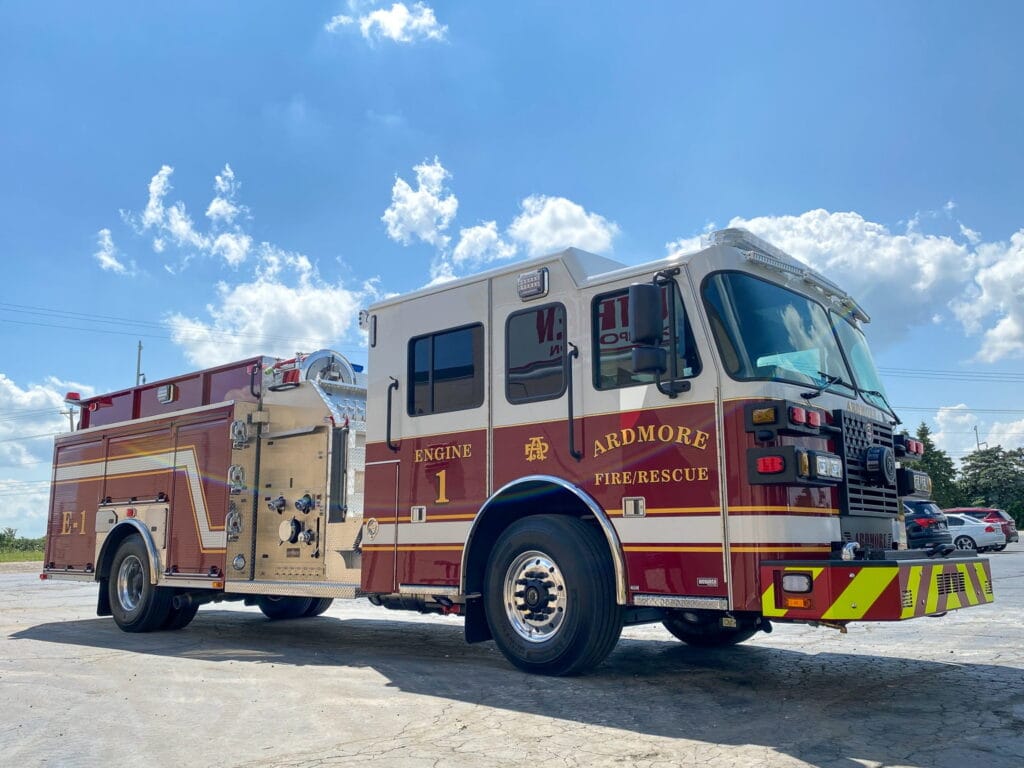

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

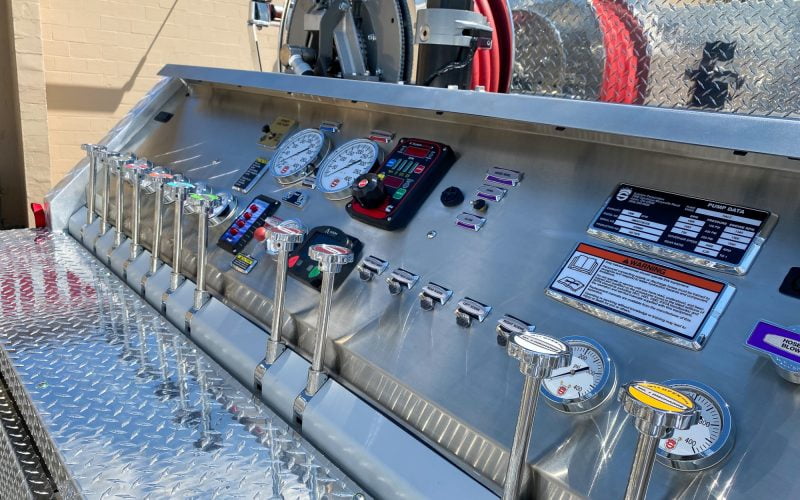

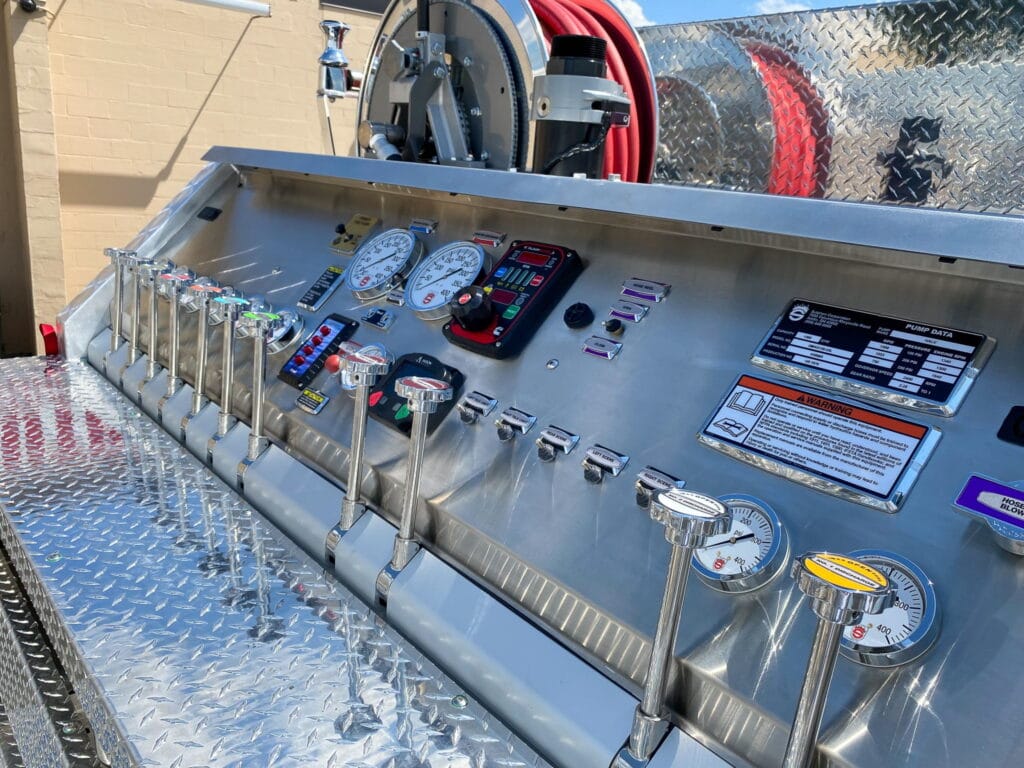

PUMP: Hale
- QMAX – 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” Speedlays w/ 1 ½” Swivel
- 1000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors, Painted

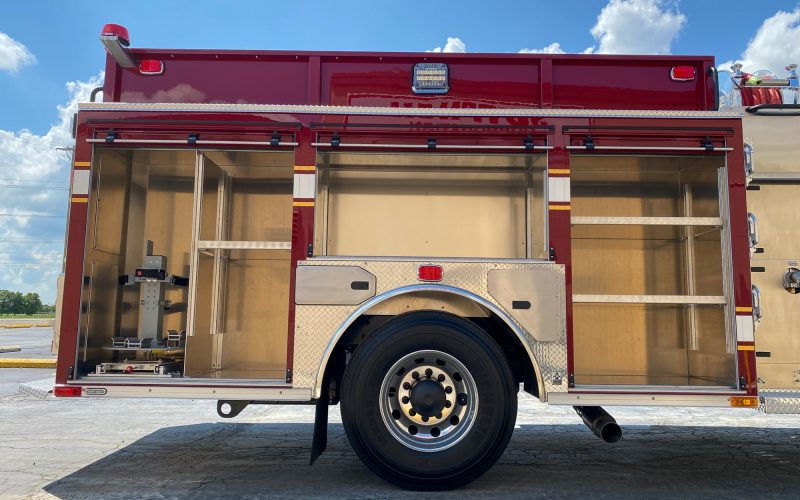

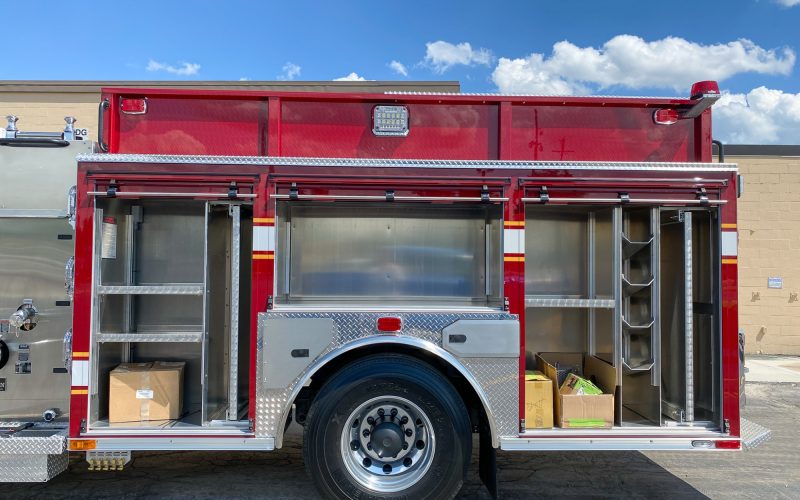

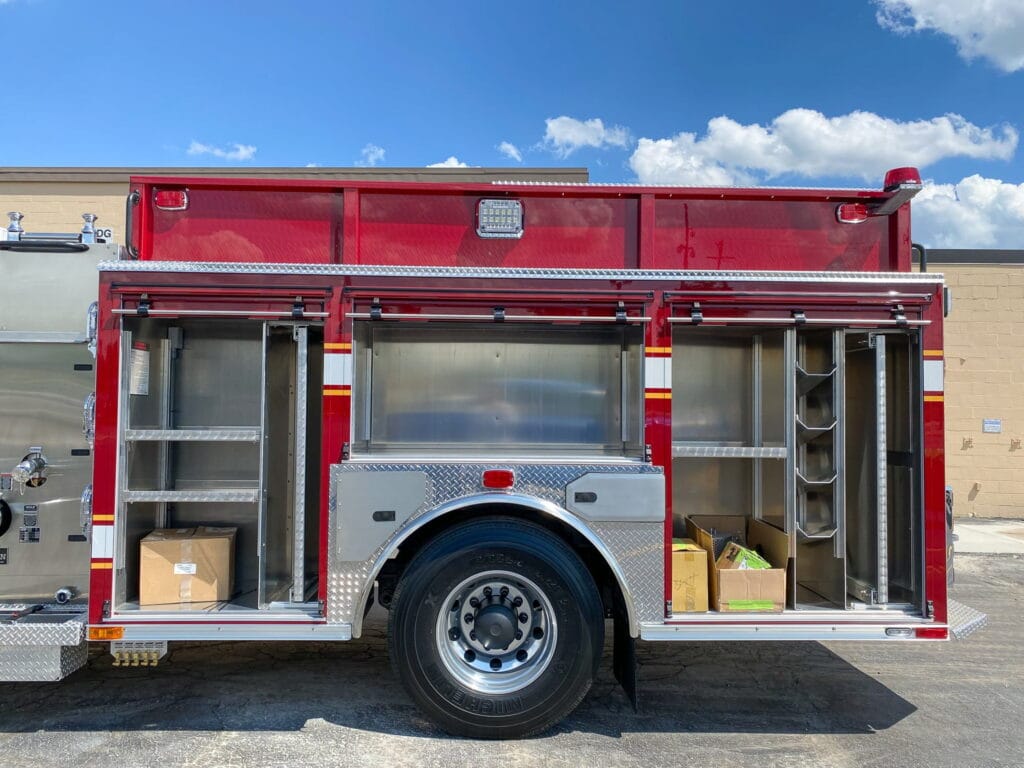

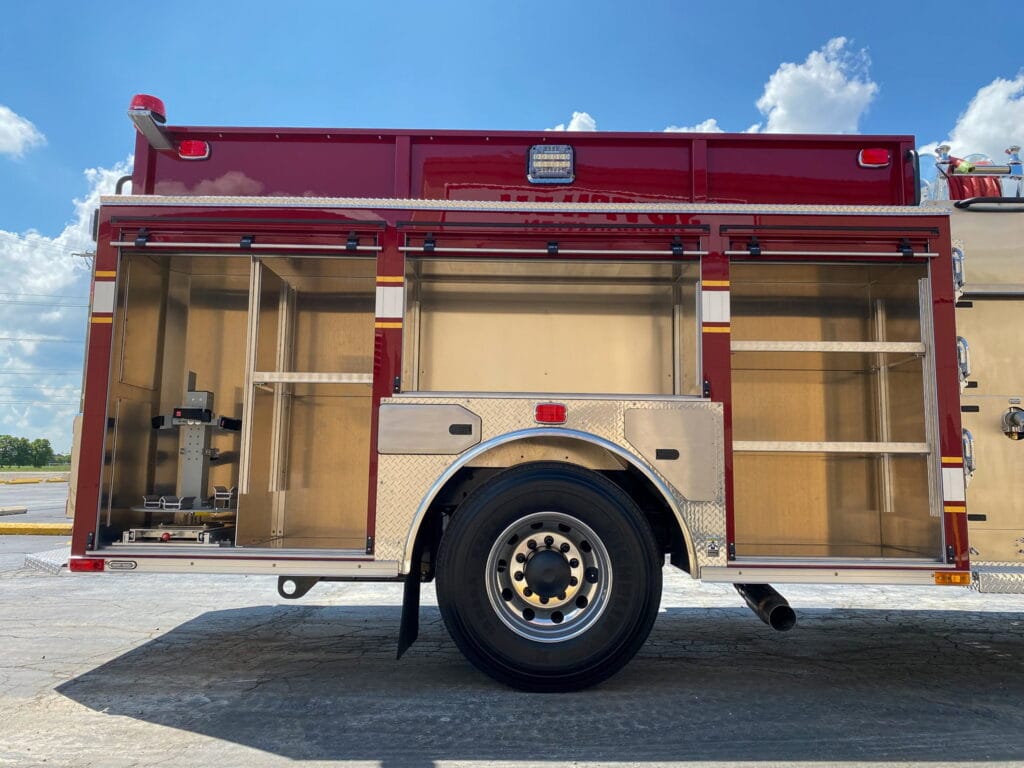

- Over 246 cu ft. Total Compartment Space
- Alco-Lite Pel-24 Ladder Package: (1) 24’ 2-section, (1) PRL-14 14’ Roof, (1) 10’ Folding
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: Sigtronic 5 Position Headset
- Camera System: FRC, Inview Trueview, Two Camera (Wired)
- Whelen Freedom LED Lightbar
- Hiviz 72” Brow Light
- Guardian Elite LED Scene Light
- Firetech FT-X-15-F-W Tele Lights
