Delivery Date:
10/01/2024
Department Name:

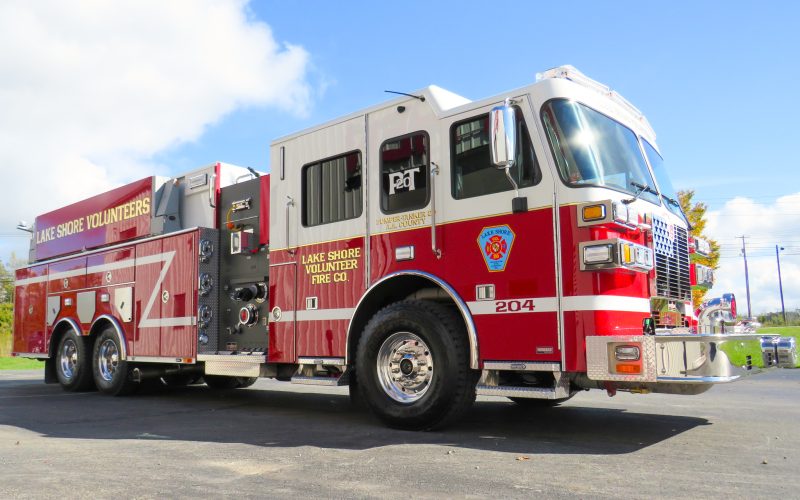

Lake Shore Fire Department
Department City / State:
Pasadena, MD
Truck Type:
Dealer: Lawver Fire
WHEELBASE: 241 ½”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 39’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Domex Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 52,000 lbs Leaf
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (1) 2 ½” to Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”, (1) 2 ½” Swivel & (2) 2” w/ 1 ½” Swivels
- 3000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Door
- Nearly 200 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: TA-05 Tanker 56/53 High/High – Lad Rack
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Front Bumper Mount
- Camera System: ES-Key (Rear/ Right)
- Generator: Smart Power, 6KW TM Hyd
- Hannay Electric Cord Reel
- Ziamatic Quciklift Extend Down Ladder Rack
- Whelen Freedom IV 72” LED Lightbar
- FireTech 3-Piece 72” LED Brow Light
- FRC Spectra 20K Scene Light
- Whelen M6V2 Scene Light
