Delivery Date:
02/01/2018
Department Name:
Coweta County Fire Department
Department City / State:
Coweta, GA

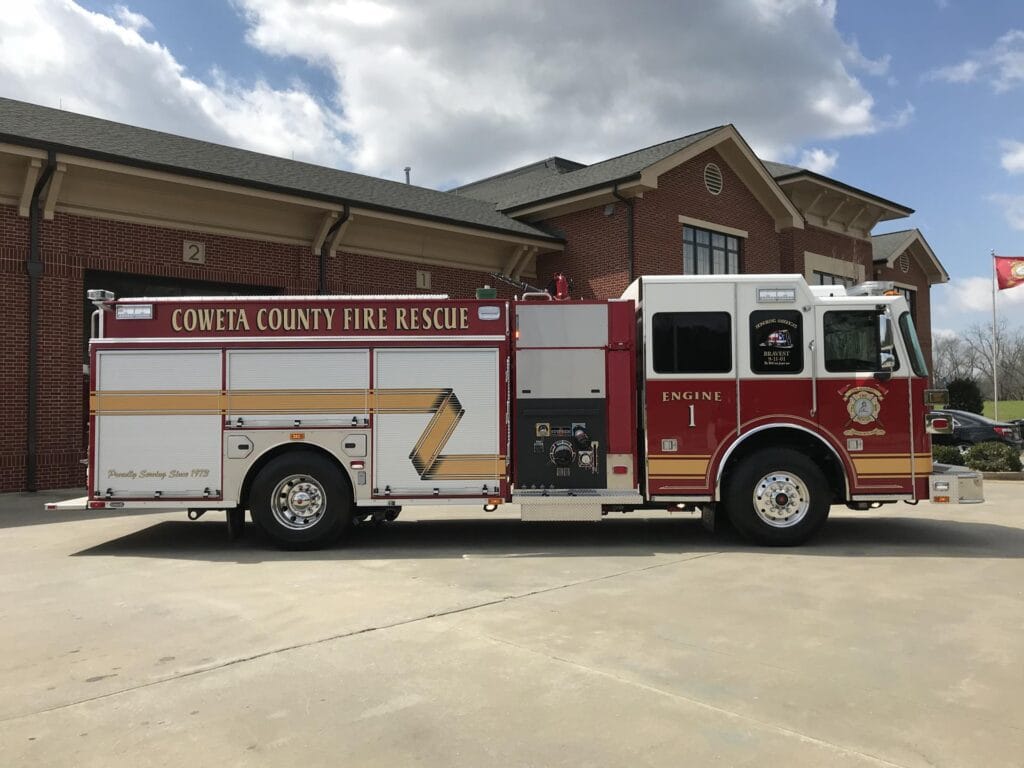

WHEEL BASE:  202″

TRAVEL HEIGHT: 9′-11″ ±2″

TRAVEL LENGTH: 33′-4″

CHASSIS:              Sutphen 56” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

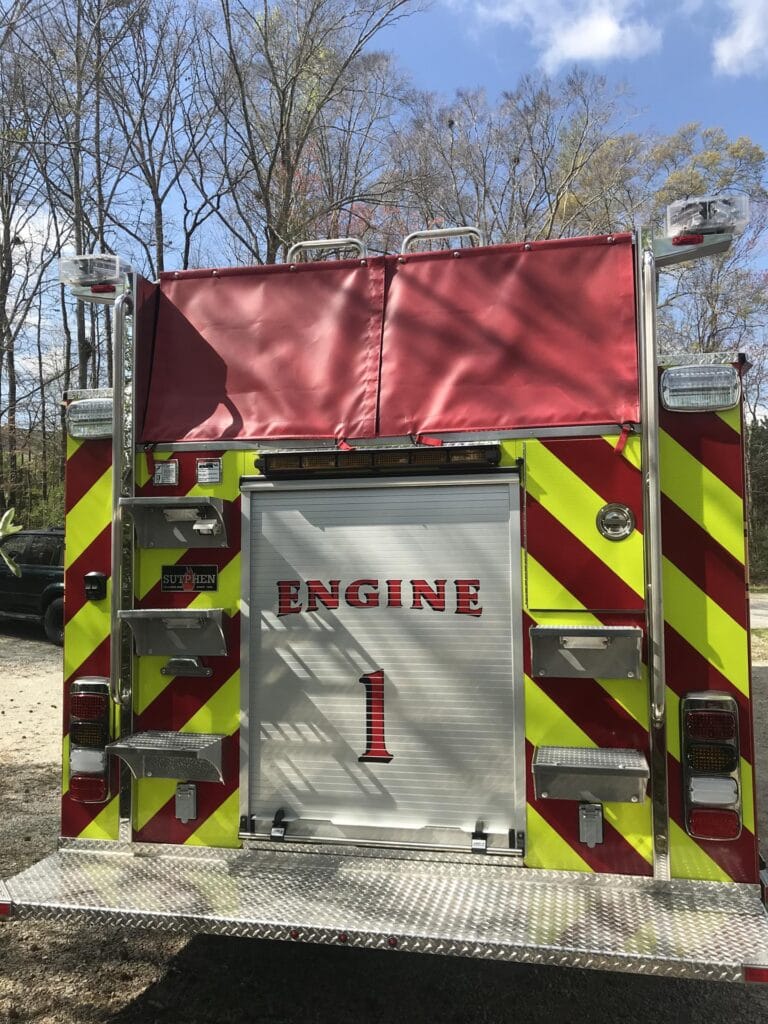

BODY:                   Sutphen

  • Aluminum
  • 283 cu. ft. Total Compartment Space

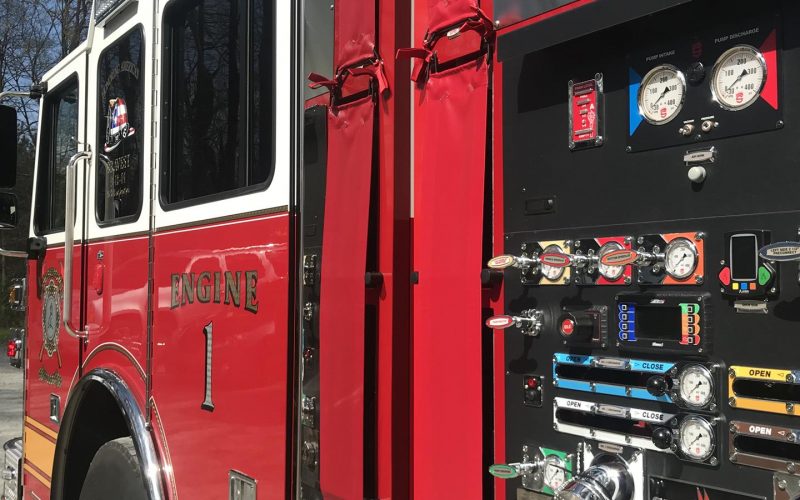

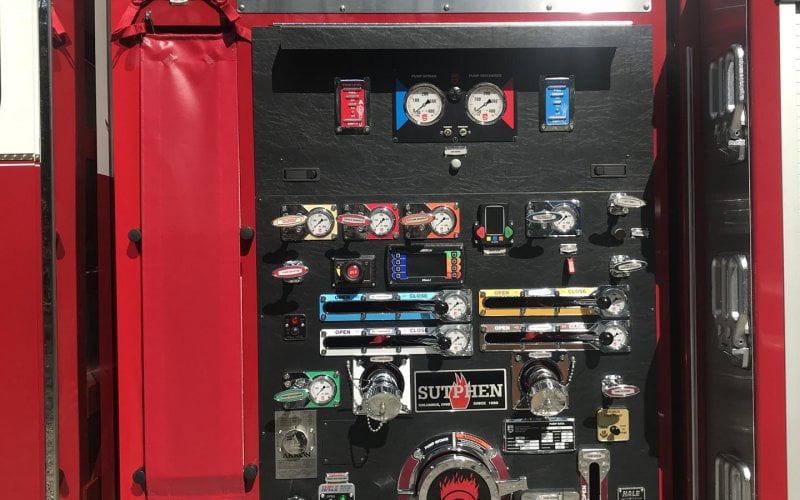

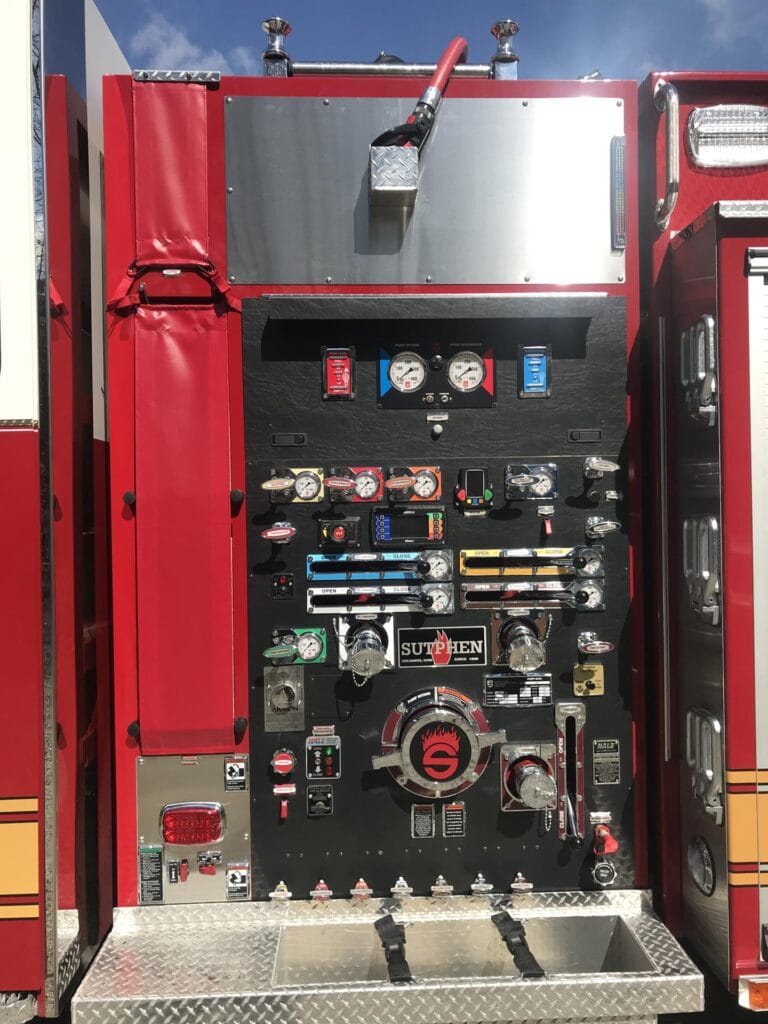

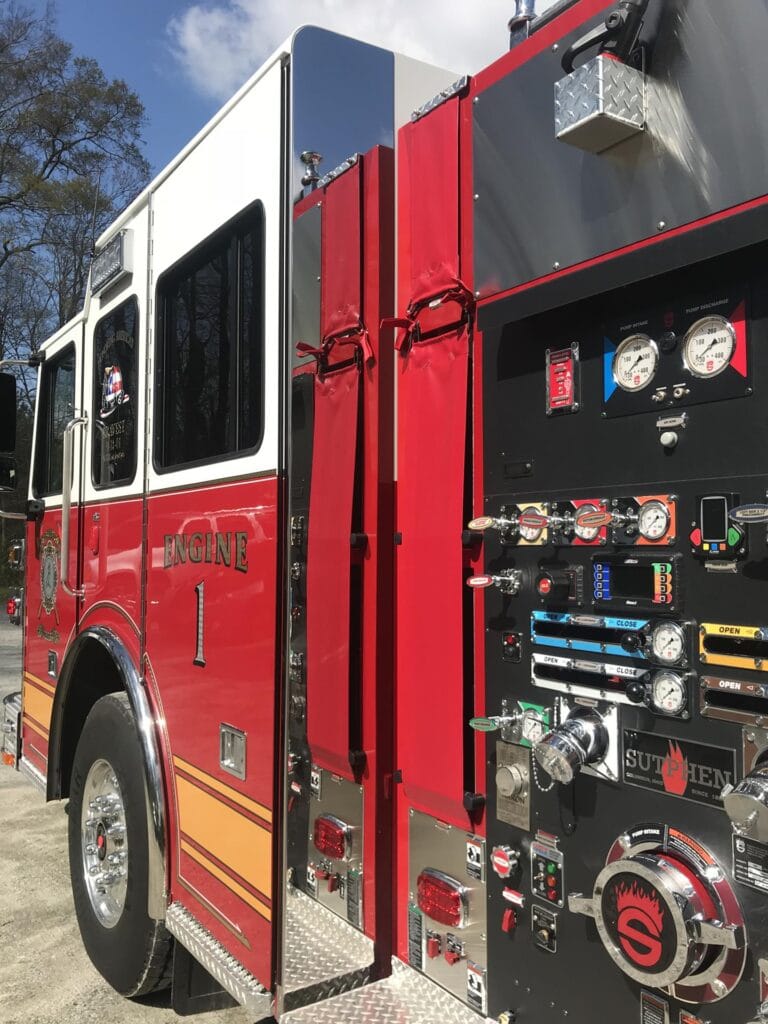

PUMP:                  Hale

  • 1500 GPM Single Stage Pump
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Front Left of Main Hosebed, 1.5” Front Bumper, 2” Plumbing, Deck Gun 3”
  • 750 Gallon Water tank
  • 30 Gallon Foam Tank built into booster tank

OPTIONAL EQUIPMENT:

  • Onan 6 KW HYD Generator
  • Federal Q2B
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Fully enclosed Ladder Chute
  • Suction Stored in Hose bed, Driver Side
