Delivery Date:
06/22/2019
Department Name:
Sparrowbush Fire District
Department City / State:
Sparrowbush, NY

Sutphen Corporation – HS #6330

Dealer – Myers Fire

WHEEL BASE: 89 7/16”

TRAVEL HEIGHT: 9’ – 7 ½”

TRAVEL LENGTH: 24’ – 5 ¼”

CHASSIS:             Freightliner M2 106 – 2DR

  • Two-Door, Two-Person Cab
  • Front Axle and Suspension: 16,000 lbs
  • Rear Axle and Suspension: 30,000 lbs
  • Engine: Cummins, L 9, 350HP
  • Alternator: For Commercial Chassis
  • Transmission: EVS 3000

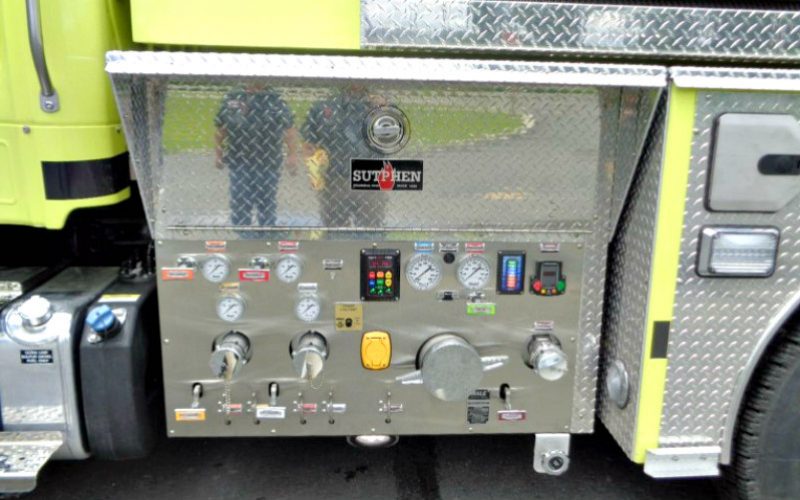

PUMP:                 Hale

  • Side Kick APS, 500 GPM, PTO
  • Discharge: (2) 2 ½” Left
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 2,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 55 cu. ft. Total Compartment Space

ADDITIONAL EQUIPMENT:

  • Whelen 56” Justice Lightbar
  • Whelen 900 Scene Lights (6)
  • Whelen L31HRFN Beacon
  • Newton Swivel Dump
  • Manual Fold Down Rack
  • 2,100-Gallon Portable Tank
