Delivery Date:
09/08/2018
Department Name:
New Albany Fire Company
Department City / State:
New Albany, PA
Truck Type:
WHEEL BASE: 262”
TRAVEL HEIGHT: 119″
TRAVEL LENGTH: 35′ – 3 1/2″
CHASSIS: Commercial, Kenworth T800 – 2DR
- Two-Door, Two-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 46,000 lbs
- Engine: Cummins X15, 505 HP
- Alternator: Delco 320 AMP
- Transmission: EVS 4500

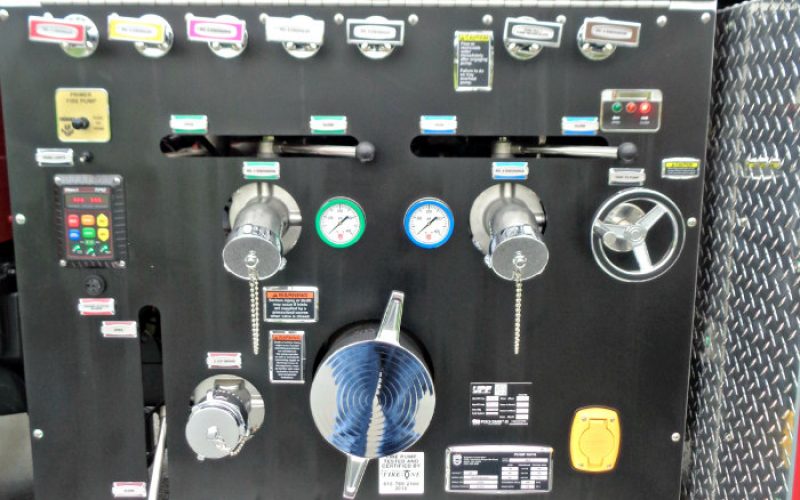

PUMP: Hale
- QFLO-1250, Single Stage Pump
- Discharges: (2) 2 ½” Left, 3” Right, (1) 2 ½”,
- Crosslays: (4) 2” with 1 ½” Swivel
- 3,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Doors
- Alco-Lite Ladder (24’ 2-Section, 14’ Roof, 10’ Folding)
OPTIONAL EQUIPMENT:
- No Bumper Extension
- Whelen 900 LED Scene Lights
- Whelen LED Freedom 60”
- Whelen Cencom Carbide Siren
