Delivery Date:
10/12/2018
Department Name:
Hanover Township Fire Department
Department City / State:
Hamilton, OH

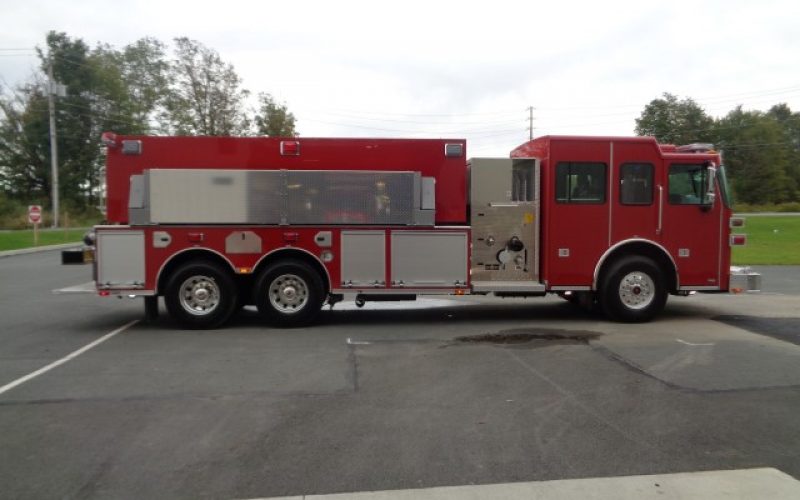

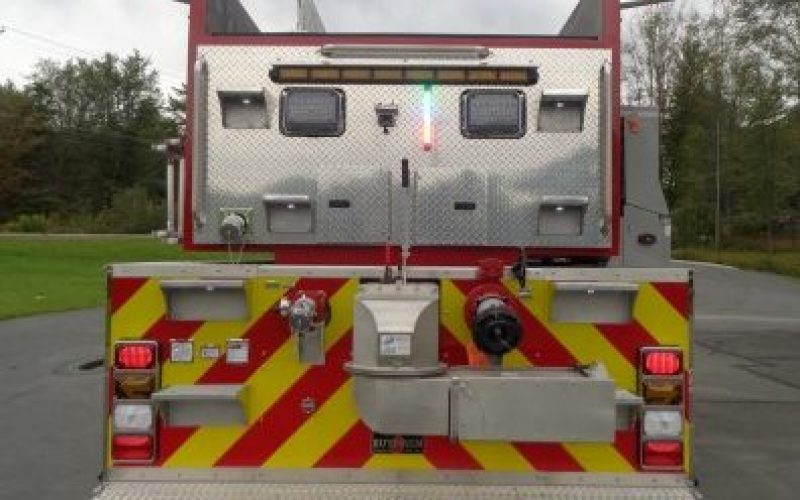

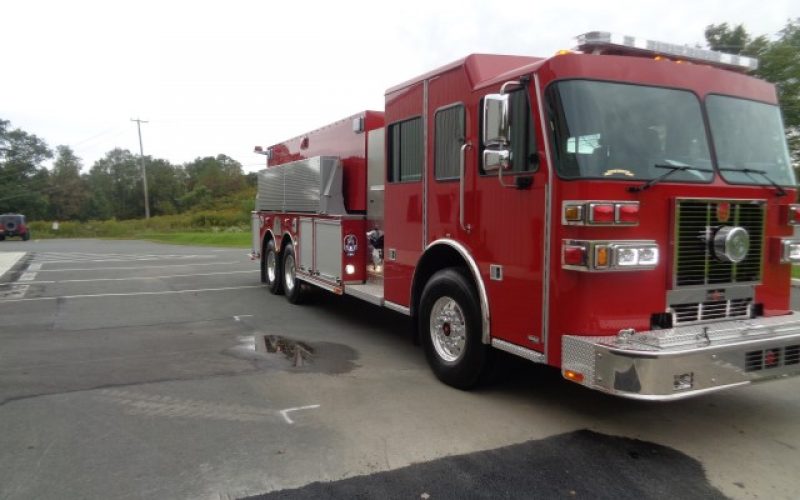

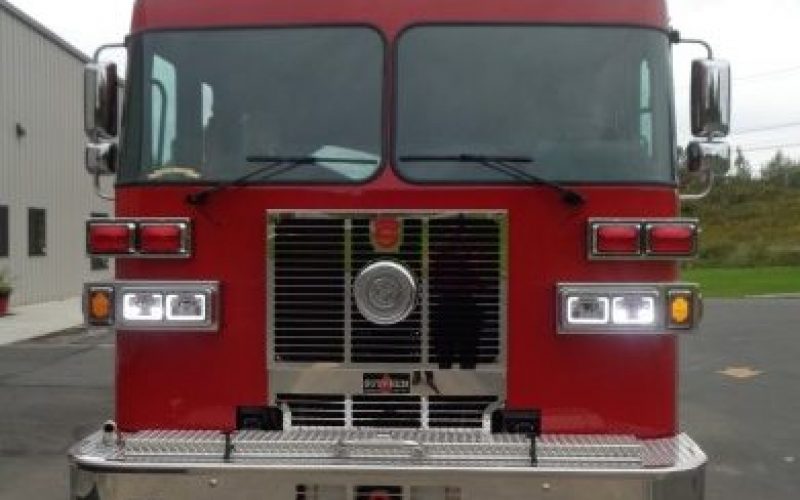

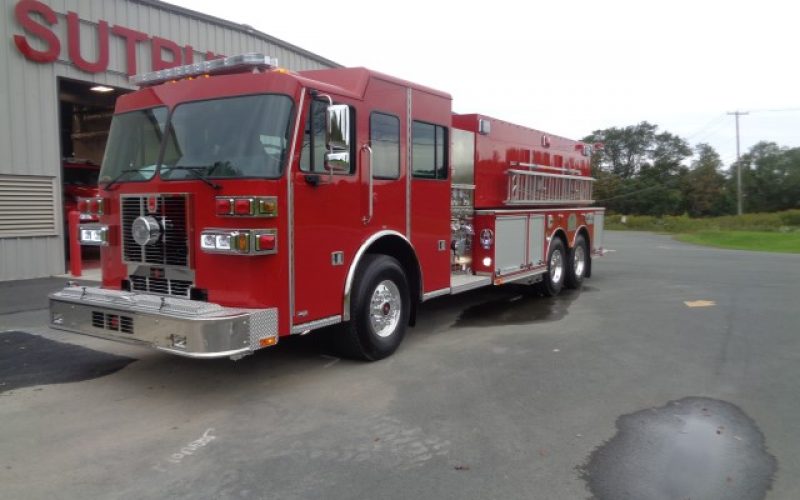

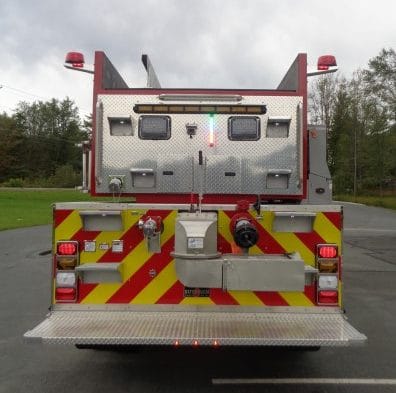

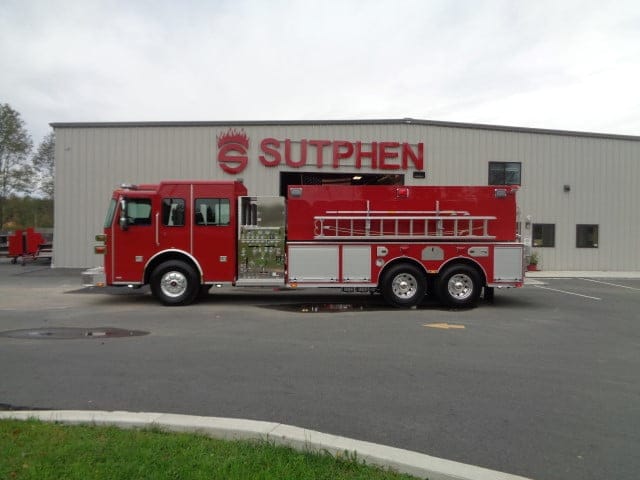

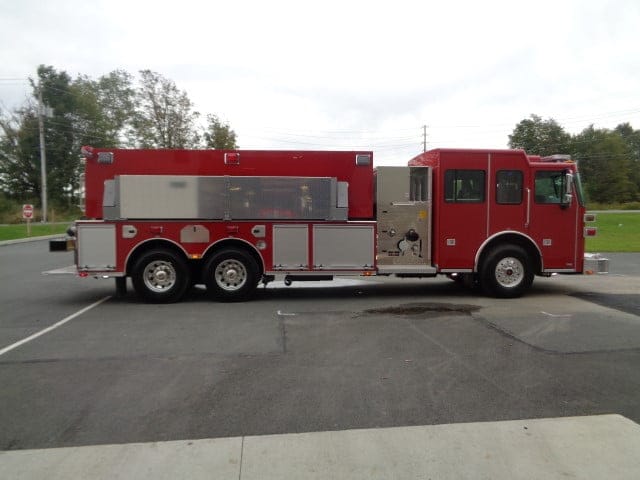

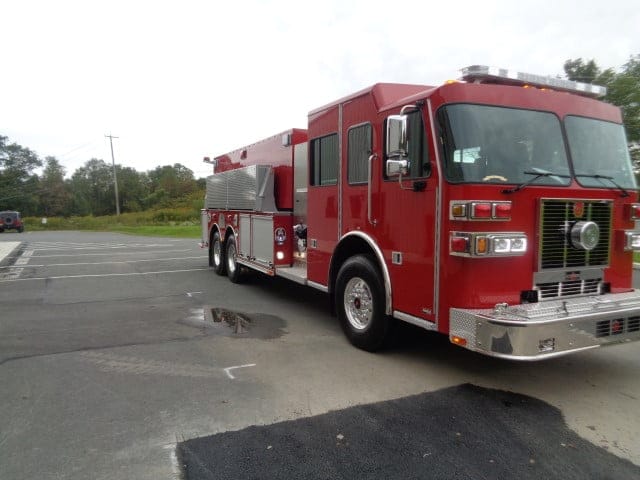

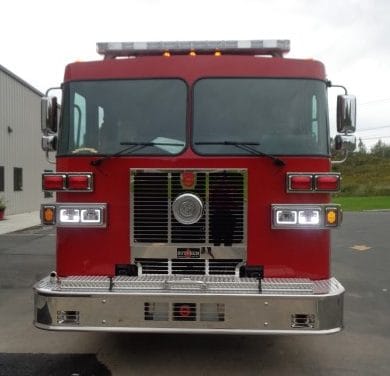

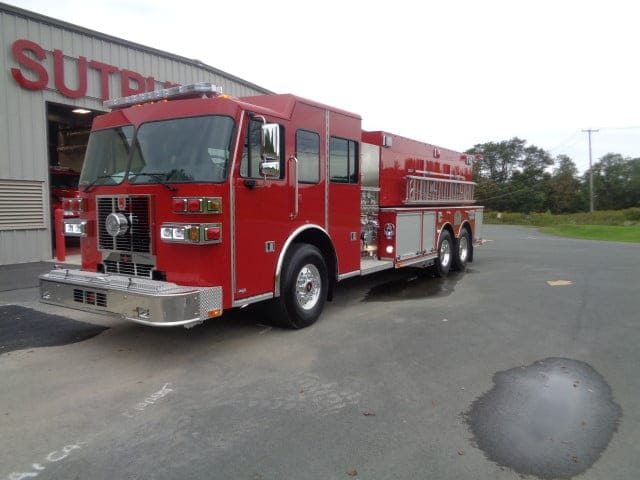

Truck Type:
Sutphen Corporation – HS #6175
Dealer – Heritage Fire Equipment
WHEEL BASE: 240”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 37’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper
- Crosslays: (2) 2” with 1 ½” Swivel; (1) 2 ½” with 2 ½” Swivel
- 3,000-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Alco-Lite Ladder (24’ 2 Section, 14’ Roof, 10’ Folding)
- Amdor Roll-Up Doors
OPTIONAL EQUIPMENT:
- 18” Bumper Extension
- Safety Vision SV-CLCD0-70, Camera System
- Federal Q2B
- Whelen 47” Traffic Advisor
