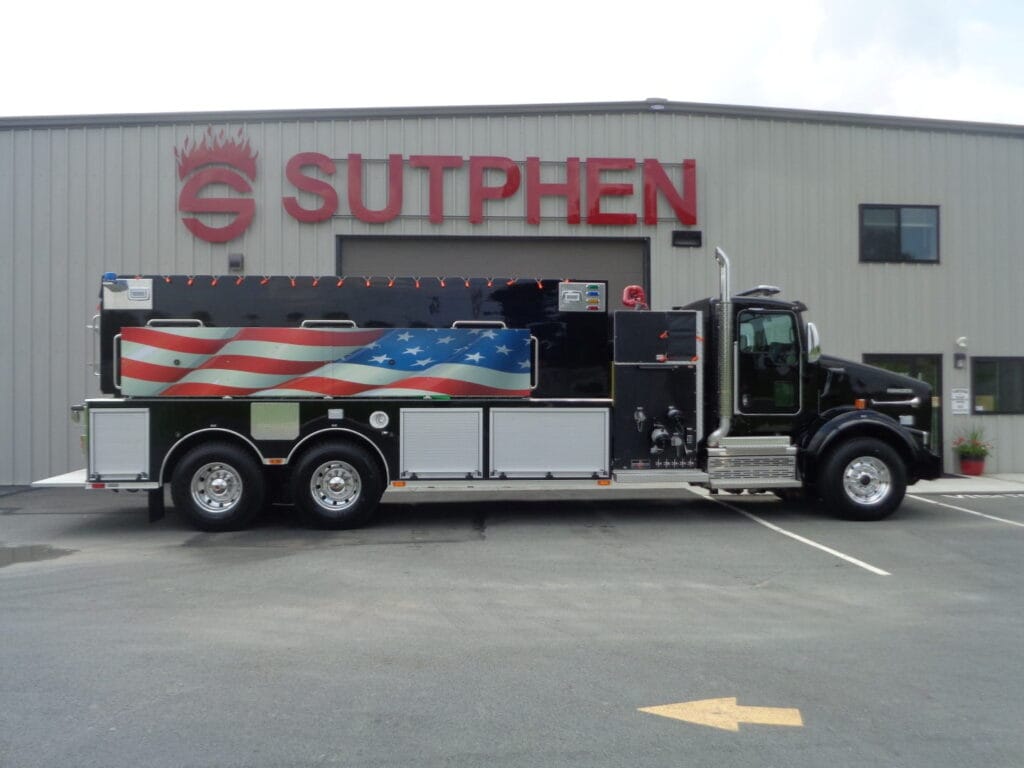

WHEEL BASE: 283”
TRAVEL HEIGHT: 10′ – 3 1/2″
TRAVEL LENGTH: 36′ – 7 1/4″
CHASSIS: Kenworth T800 – 2DR
- Two-Door, Two-Person Cab
- 10” Double Frame Rails
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins ISX 15, 500 HP
- Alternator: Delco 320 AMP
- Transmission: EVS4500
PUMP: Hale
- QMAX-1500 GPM Single Stage
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 3” Deck Gun
- Monitor, Akron 3423 Apollo
- Crosslays: Above Pump, (2) 2” with 1 ½” Swivel
- 4,000-Gallon Water Tank
BODY: Kenworth
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Doors
OPTIONAL EQUIMENT:
- Federal Q2B
- Voyager 3, Camera System
- Whelen 500 LED Monster Gauges Green, Blue, Amber, Red
- Whelen PSL1R Scene Lights (6)
- Whelen Upper Warning Lights, Justice 62” LED Light Bar
