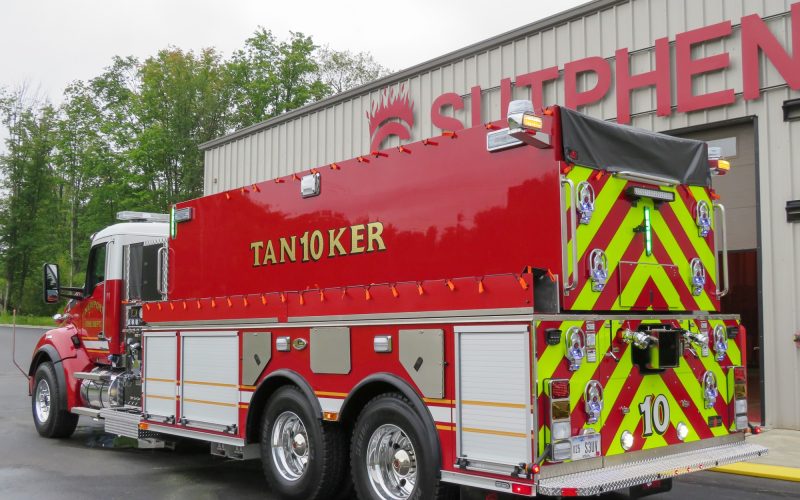

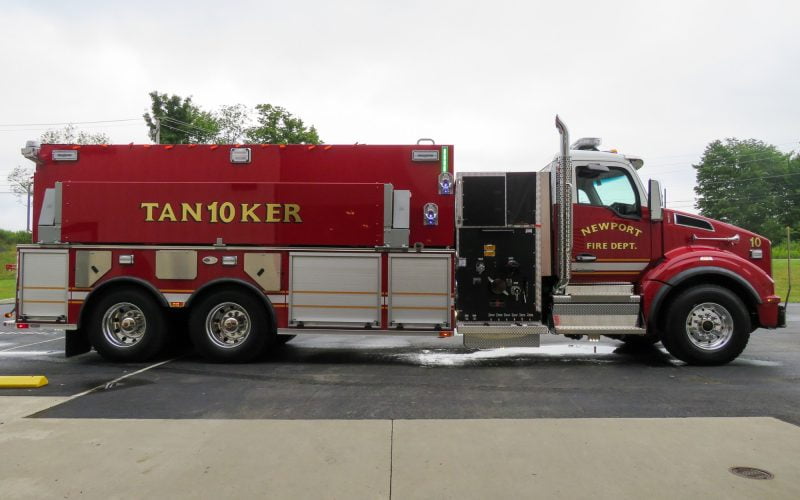

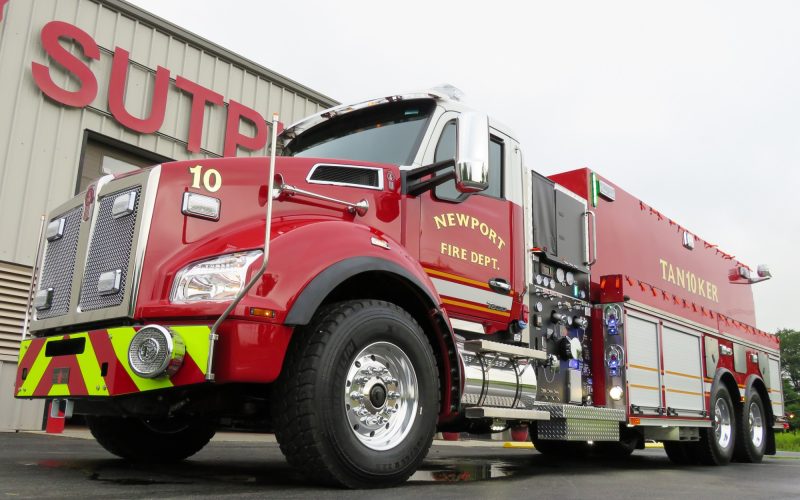

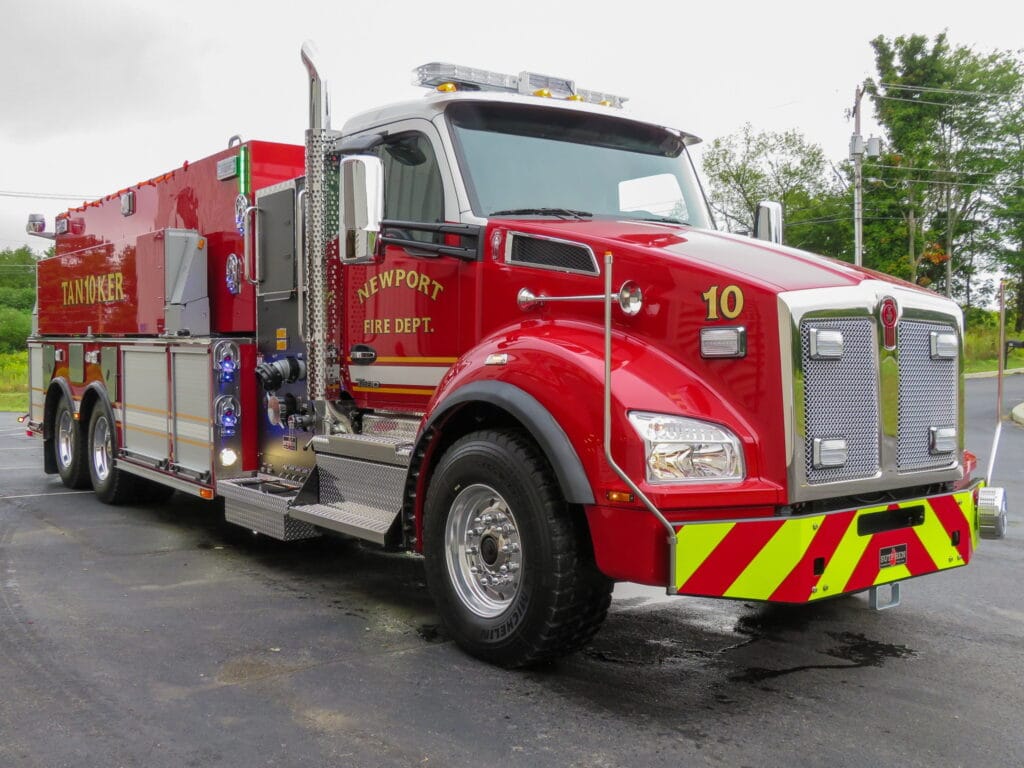

Commercial Wet Side Tanker – Newport Fire Department, PA

Sutphen Corporation – HS #7097

Dealer – Lawver Fire Apparatus

WHEELBASE: 269”

TRAVEL HEIGHT: 10’ – 5”

TRAVEL LENGTH: 34’ – 7”

CHASSIS:             Kenworth T880 – 2DR

• Two-Door, Two-Person Cab
• Front Axle and Suspension 18,000 lbs
• Rear Axle and Suspension 46,000 lbs
• Engine: Cummins X 15, 505HP
• Alternator: For Commercial Chassis
• Transmission: EVS 4500

PUMP:                 Hale

• QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
• Crosslays: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
• 3,000-Gallon Water Tank

BODY:                  Sutphen

• Huckbolt #304 Stainless Steel
• ROM Roll-Up Compartment Doors
• Over 115 cu ft. Total Compartment Space
• Alco-Lite Ladder: 10’
• Body: SWT-04B STS Wet Side Tanker Tandem

ADDITIONAL EQUIPMENT:

• Federal Q2B Siren, Front Bumper Mount
• Camera System: Brigade, 3 Camera
• Zico Porta Tank Tack w/ 3,500-Gallon Porta Tank
• Newton Kwik Dump
• Whelen 60” Freedom Lightbar
• Whelen PFH2 Brow Light
• FR Spectra Scene Lights
• FireTech Rear Scene Light
