Delivery Date:
08/24/2022
Department Name:
Sparrowbush Fire District
Department City / State:
Sparrowbush, NY
Truck Type:

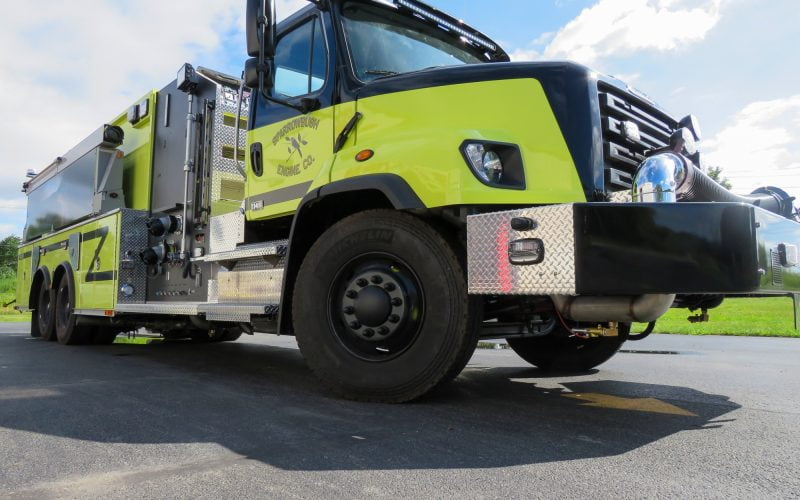

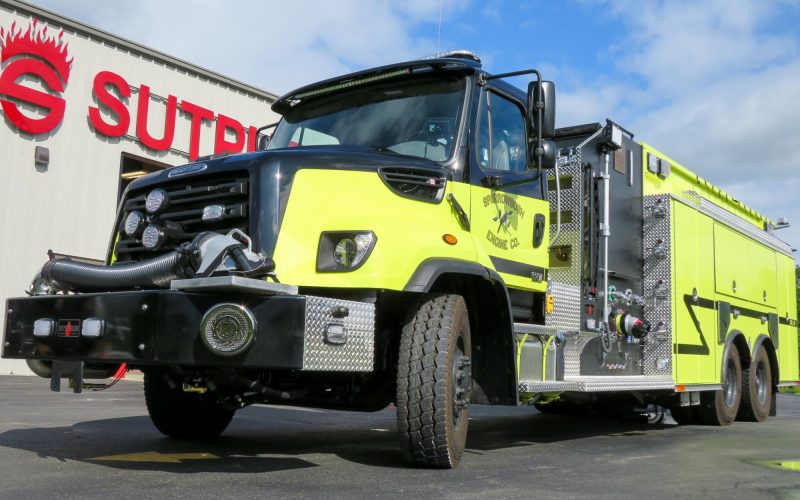

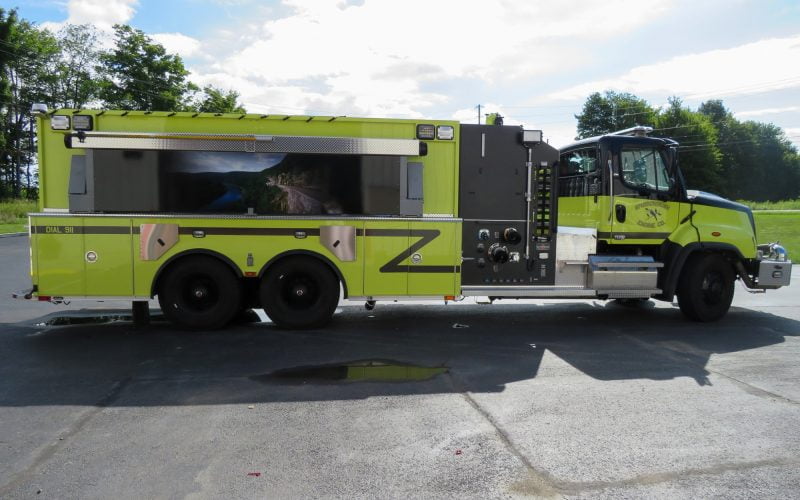

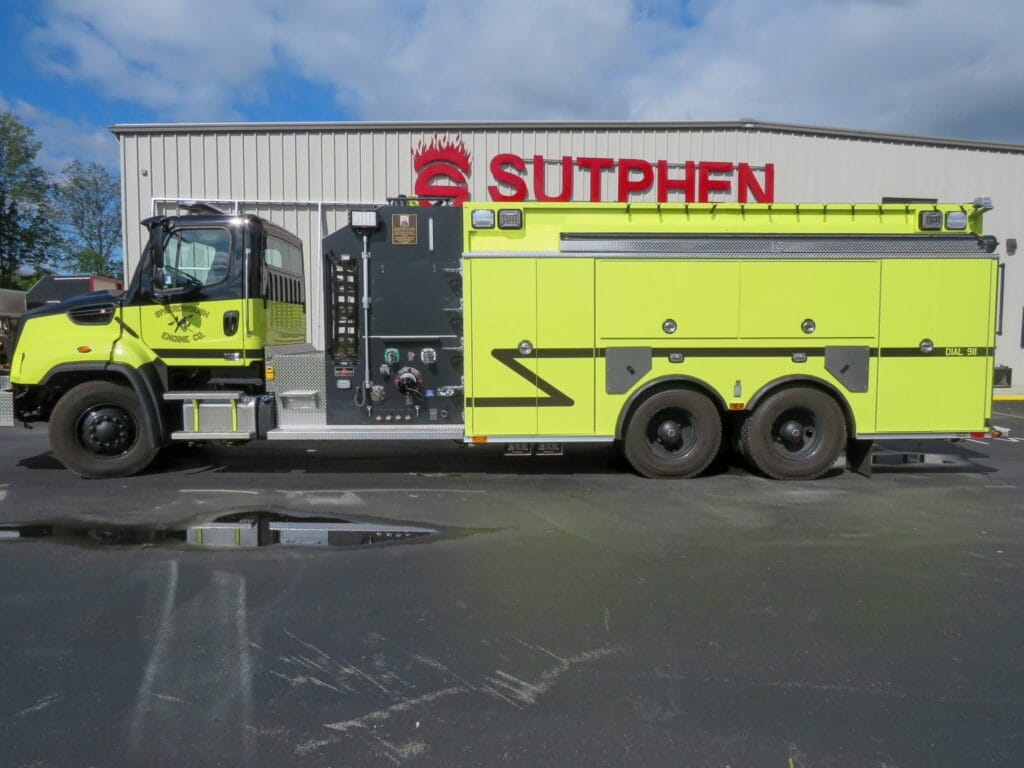

Sutphen Corporation – HS #7089
Dealer – Myers Fire
WHEELBASE: 269 3/8”
TRAVEL HEIGHT: 10’ – 5”
TRAVEL LENGTH: 38’ – 6”

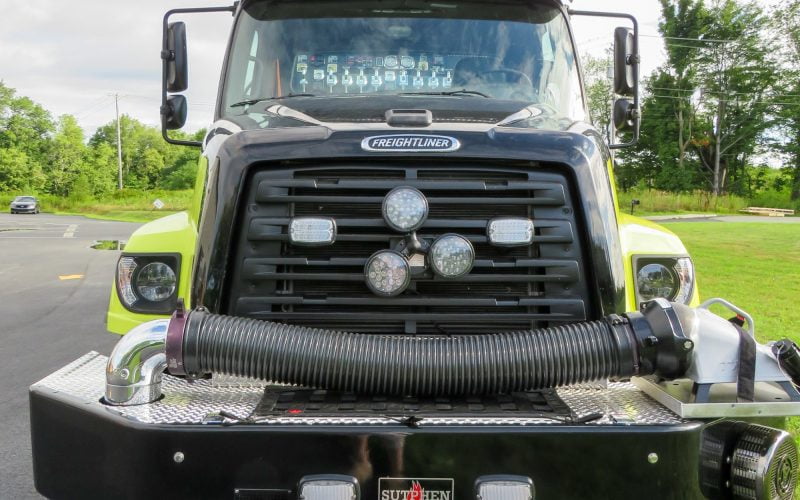

CHASSIS: Freightliner SD-114 2-Door
- Two-Door, Two-Person Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: 300 AMP
- Transmission: EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Hosebed, (1) 2 ½” Right Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 1 ½” & (1) 2 ½”
- 2,500-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 167 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
- Body: TA-04 Tanker 56/53 High/Low
ADDITIONAL EQUIPMENT:
- 24” Bumper Extension
- Federal Q2B Siren, Front Bumper Mount
- Generator: Harrison 10KW
- Hannay Electric Cord Reel, 175’ (1)
- Camera System: Brigade, 3 Camera
- Roto-Ray LED Warning Light
- Whelen 62” Justice Lightbar
- FireTech Brow Light w/ Marker Lights
- Command Light KL415A-CH-BL
