More Recent Deliveries

Delivery Date:
11/16/2018
Department Name:
Palm Beach County Fire Department
Department City / State:
Palm Beach County, FL

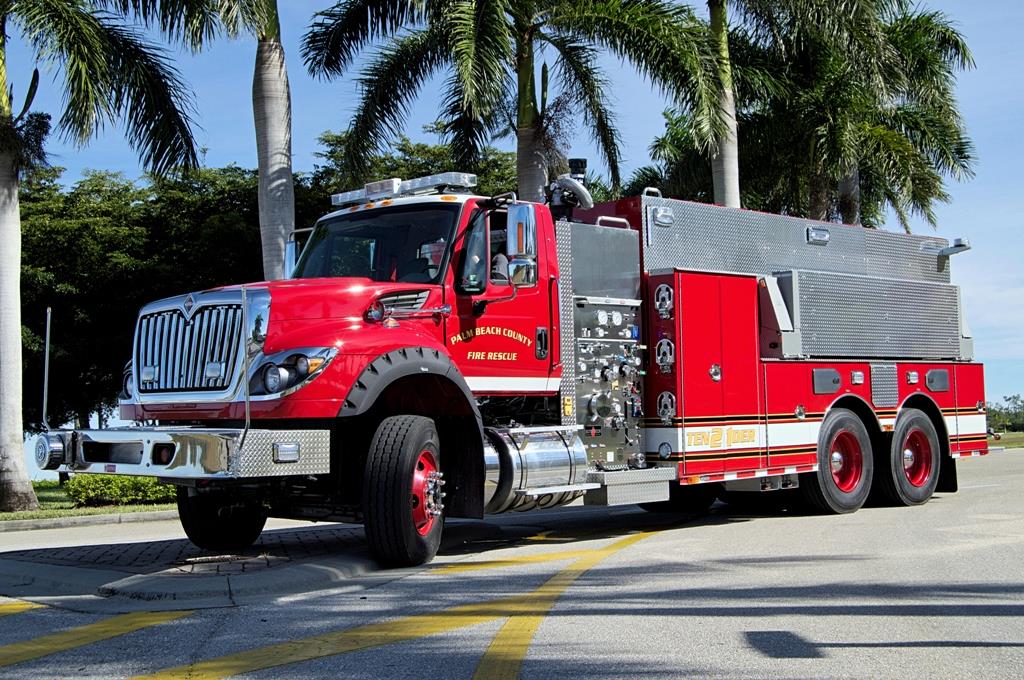

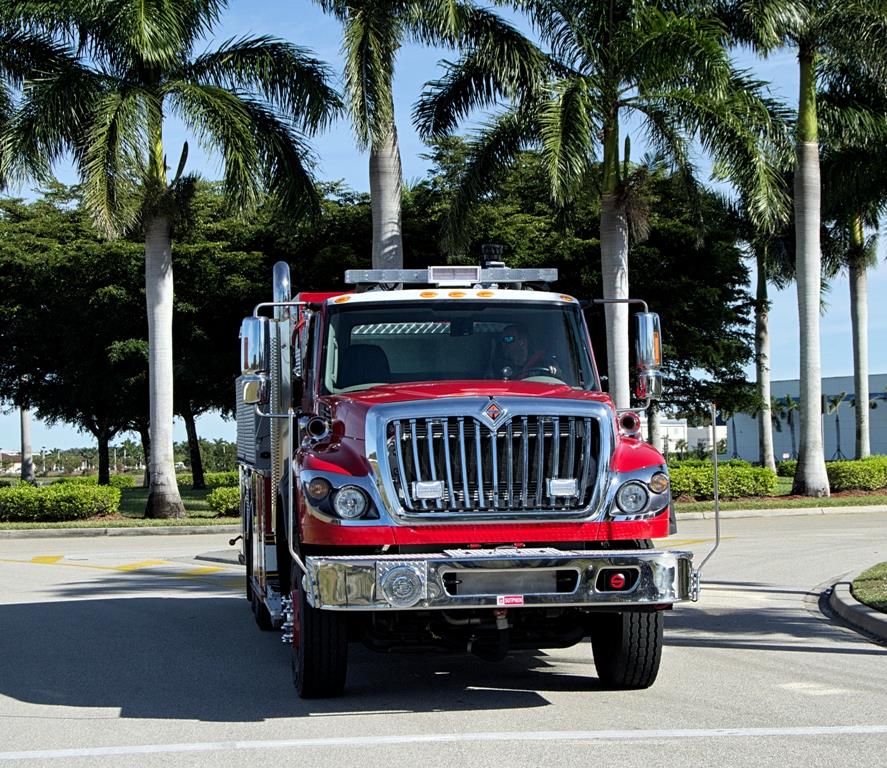

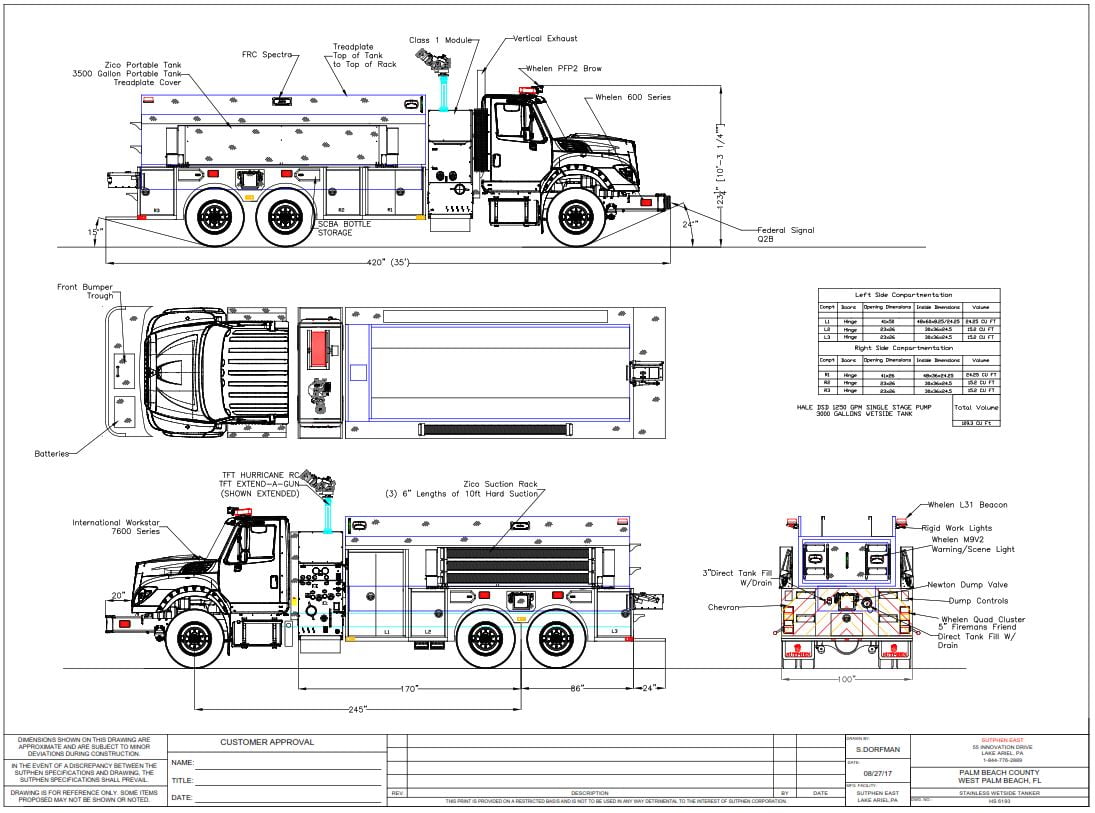

Sutphen Corporation – HS #6193

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 244”

TRAVEL HEIGHT: 10’-3 ¼”

TRAVEL LENGTH: 35’

CHASSIS:             International 7600 6×4 – 2DR

  • Two-Door, Two-Person Cab
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 46,000 lbs
  • Engine: Navistar, N13, 475HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison EVS4000, 5 Gen

PUMP:                 Hale

  • DSD-1500 Single Stage
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 3” Deck Gun
  • Monitor: Hurricane, TFT, Electric 1250 GPM with Electric Nozzle and 30’ Tethered Controller
  • 3,000-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors

OPTIONAL EQUIPMENT:

  • Federal Q2B Siren
  • Rear Vision Camera
  • Whelen M9V2 Scene Lights
  • Whelen PFP2 Brow 12 V LED
  • Whelen 600 Super LED Warning Lights
