Delivery Date:
05/08/2020
Department Name:

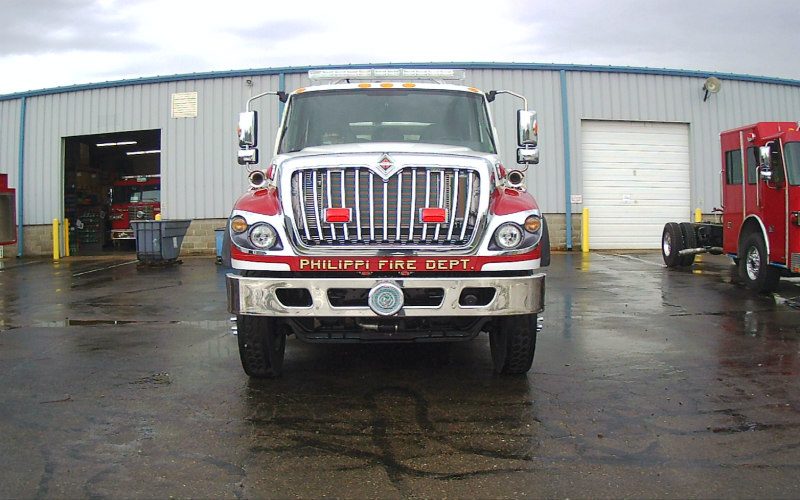

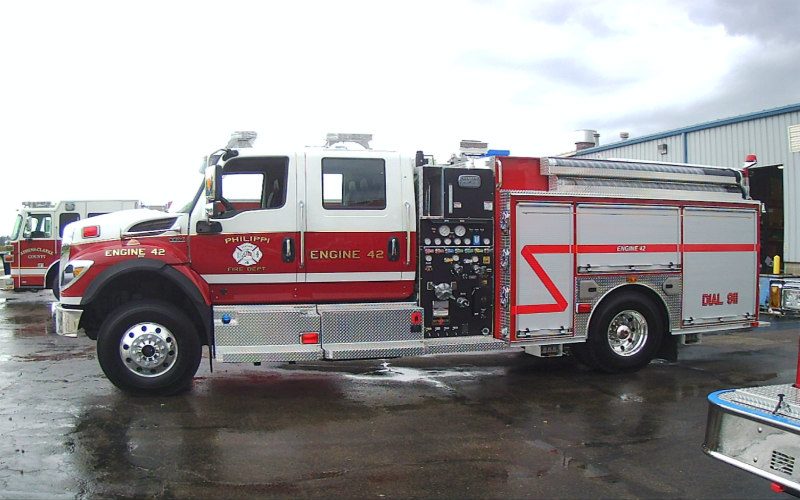

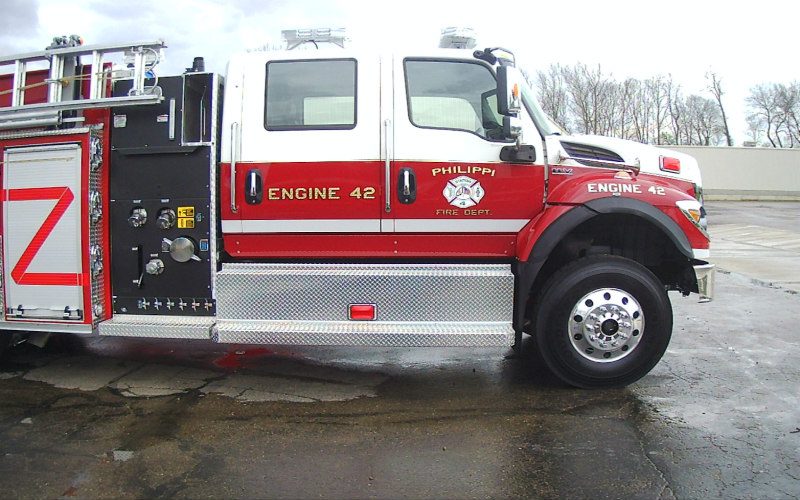

Philippi Volunteer Fire Department
Department City / State:
Philippi, WV
Truck Type:
Sutphen Corporation – HS #6528
Dealer – Heritage Fire Equipment
WHEELBASE: 212”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 29’ – 8”
CHASSIS: 7500/HV607
- Four-Door, Five-Person Cab
- Front Axle and Suspension 14,000 lbs
- Rear Axle and Suspension 26,000 lbs
- Engine: Cummins L 9, 450 HP
- Transmission: Allison, EVS3000
PUMP: Hale
- DSD-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- 220 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
- Body: C4-30/53, Elec Lad Rack
ADDITIONAL EQUIPMENT:
- Federal Q2B Siren, Grille Mount
- FRC Inview Trueview Camera System
- 4 Bottle Compartments
- Whelen M9 Scene Lights
- Whelen Freedom 12 LED Lightbar
- Whelen PFH1 Telescopic Lights
- Whelen L31 LED Red Lights
- Whelen 600 LED Red Lights
- Firetech Work Lights
- Whelen 600 Super LED Red Lights
