Delivery Date:
04/01/2021
Department Name:
Orange Rural Fire Department
Department City / State:
Orange Rural, NC
Truck Type:
Sutphen Corporation – HS #6783
Dealer – Stevens Fire Equipment
WHEELBASE: 198.1”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 28’ – 1”

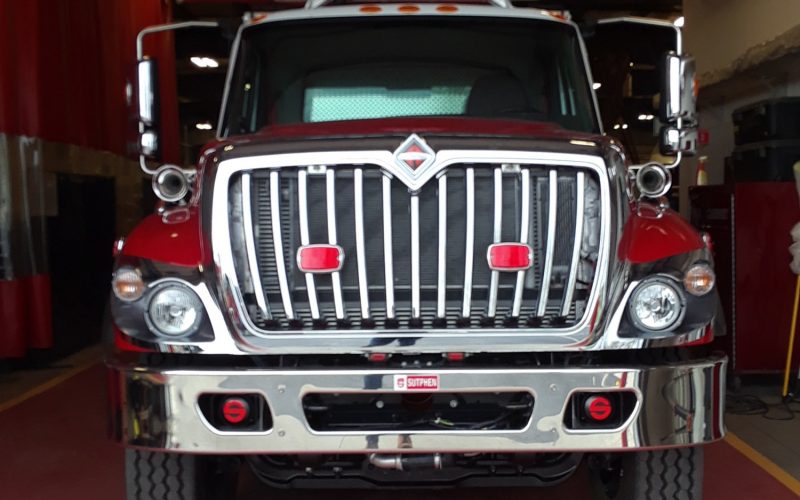

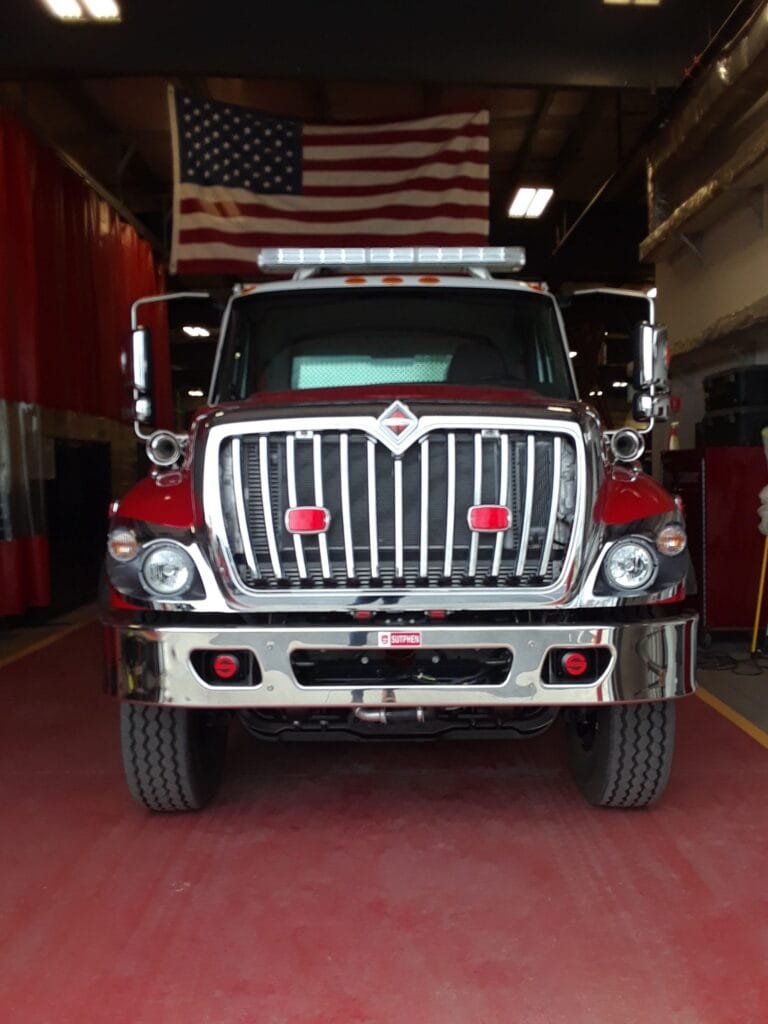

CHASSIS: International HV-607 2-Door
- Two Door Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 30,000 lbs
- Engine: Cummins L9 380 HP EVS 3000 Trans
- Alternator: Commercial Chassis
PUMP: Waterous
- CS-1250 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Right of Main Hosebed, (1) 3” Deck Gun
- Crosslay: (2) 2” Crosslays w/ 1 ½” Swivel
- 1000-Gallon Water Tank
BODY: Sutphen
- Aluminum PA-12 Res 43/53 Lad Chute
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Pel-24: 24’ 2 Sec & PRL-14 14’ Roof & 10’ FOlding
ADDITIONAL EQUIPMENT:
- Bumper
- Federal Signal PA-300
- FRC ACT 2-Station Intercom System
- Whelen Freedom 60” LED Lightbars
- Whelen M6 Warning Lights
- Whelen M9 Scene Lights
- (2) Whelen Rota-Beam Beacons
- Whelen M6 Quad Cluster
MONITOR:
- Akron 3423 Apollo
