Delivery Date:
10/17/2019
Department Name:
PTT Global Chemical
Department City / State:
PTT Global Chemical, Thailand
Sutphen Corporation – HS #6483
WHEEL BASE: 220 ½”
TRAVEL HEIGHT: 107 15/16”
TRAVEL LENGTH: 34’ – 7 ¼”

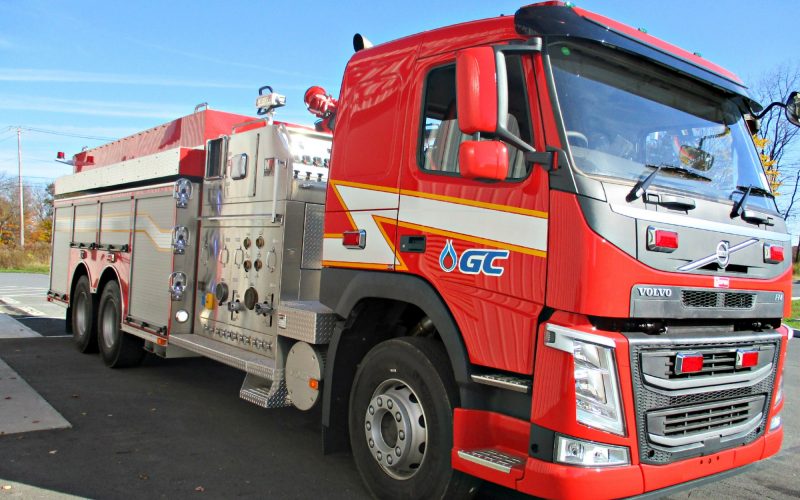

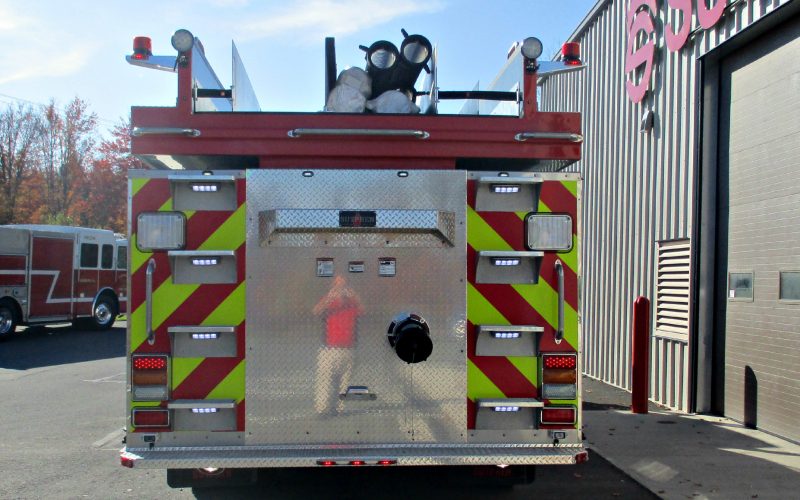

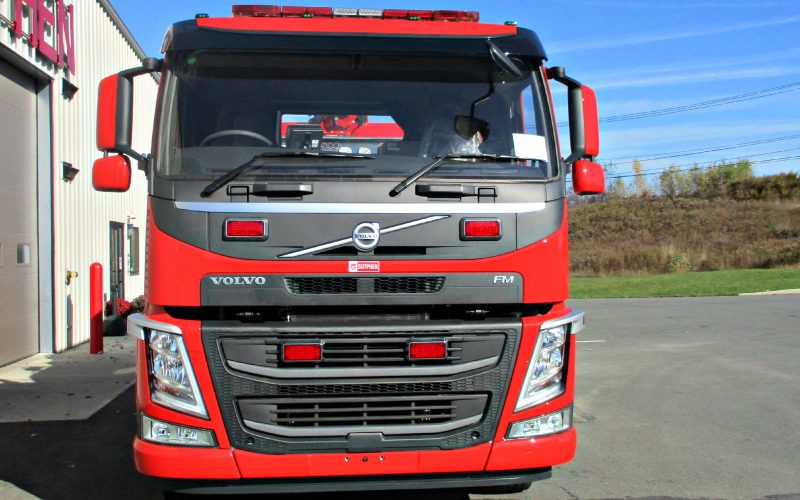

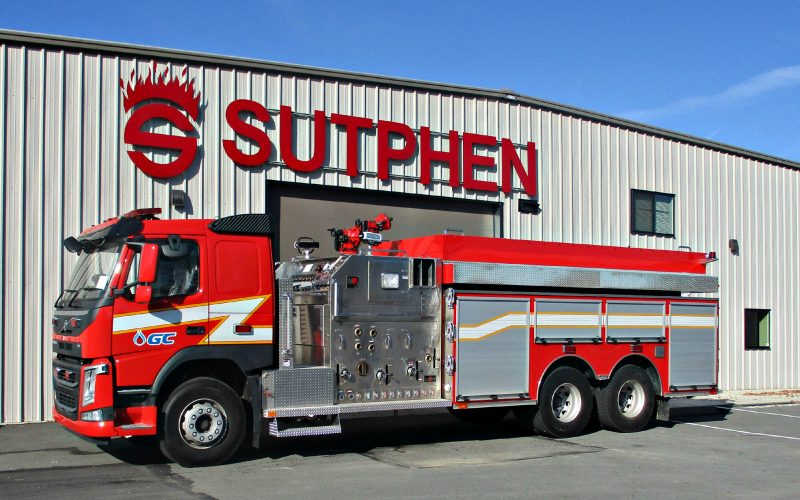

CHASSIS: Volvo FM480 6×4 – 2-Door with Sleeper, Euro Model
- Two-Door, Two-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 50,000 lbs
- Engine: Volvo D13A480 12.8 Litre Euro 3 480 HP, 2400 Nm
- Alternator: For Commercial Chassis, 110 AMP
PUMP: Hale
- QMAX-XS-2250 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 2 ½” Right, (1) 4” Rear Left
- Crosslays: (2) 1 ½” Swivel X 2” Valve Crosslays for Top Mount
- 2,000-Gallon Foam Tank
- Foam, Servo Command, 150 GPM at 250 PSI
- Monitor: Akron Mercury Quick Attack Monitor Style #3443 with Style #4455 Nozzle Completed with Bracket
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- 264 cu. ft. Total Compartment Space
- Body: TA-03 Tanker 30/53 High/High – Ladder Rack
ADDITIONAL EQUIPMENT:
- Steel Bumper
- Electronic Siren, Whelen 295SL102 (24V)
- Camera System, FRC, Inview Trueview
- Code 3, 24V Scene Light
- Whelen LED Work Lights
