Delivery Date:
10/19/2022
Department Name:
Ligonier Fire Department
Department City / State:
Ligonier, IN
Truck Type:

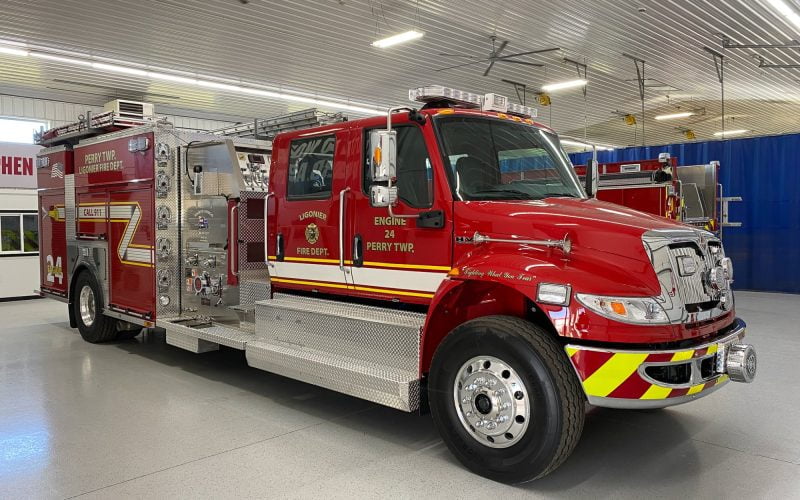

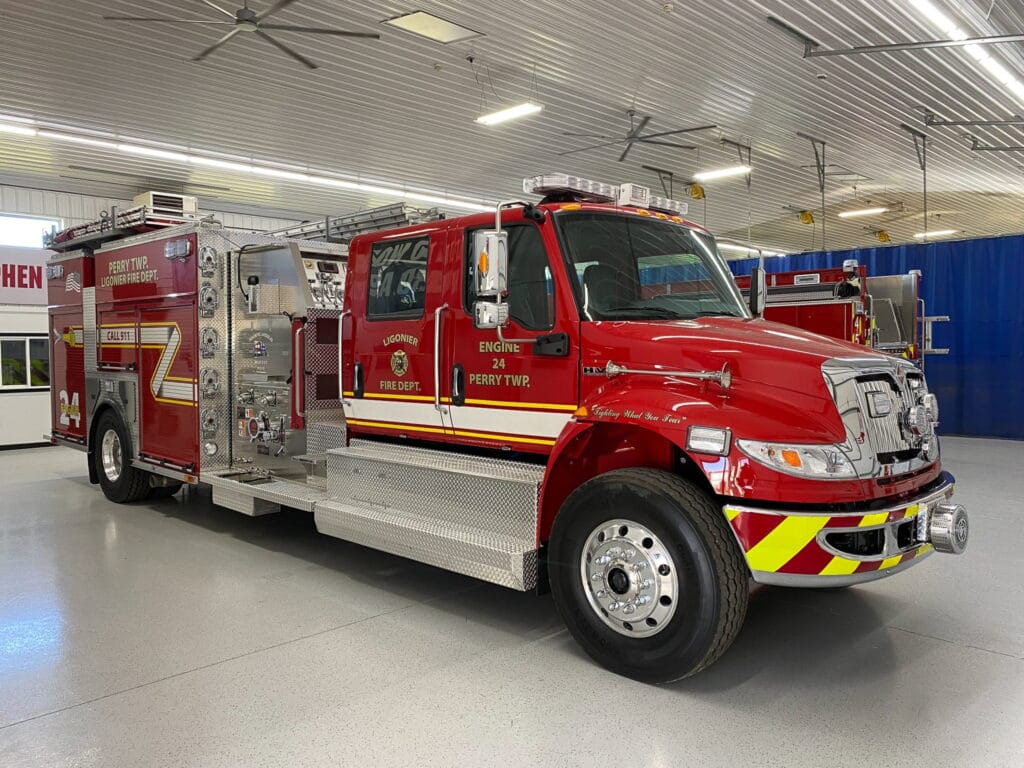

Sutphen Corporation – HS #7034
Dealer – Herb Fire
WHEELBASE: 275”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 34’ – 10 ½”
CHASSIS: International HV507 4-Door
- Four-Door, Four-Person Cab
- Front Axle and Suspension 14,600 lbs
- Rear Axle and Suspension 30,000 lbs
- Engine: Cummins L9, 360 HP
- Alternator: 325 AMP
- Transmission: EVS3000

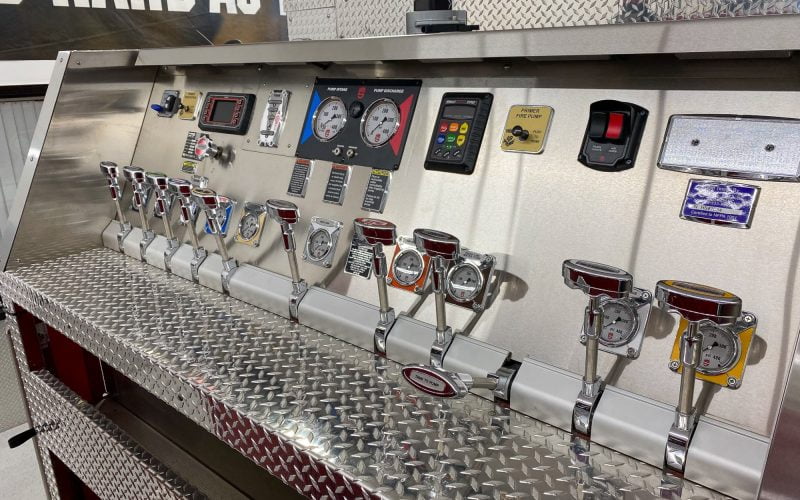

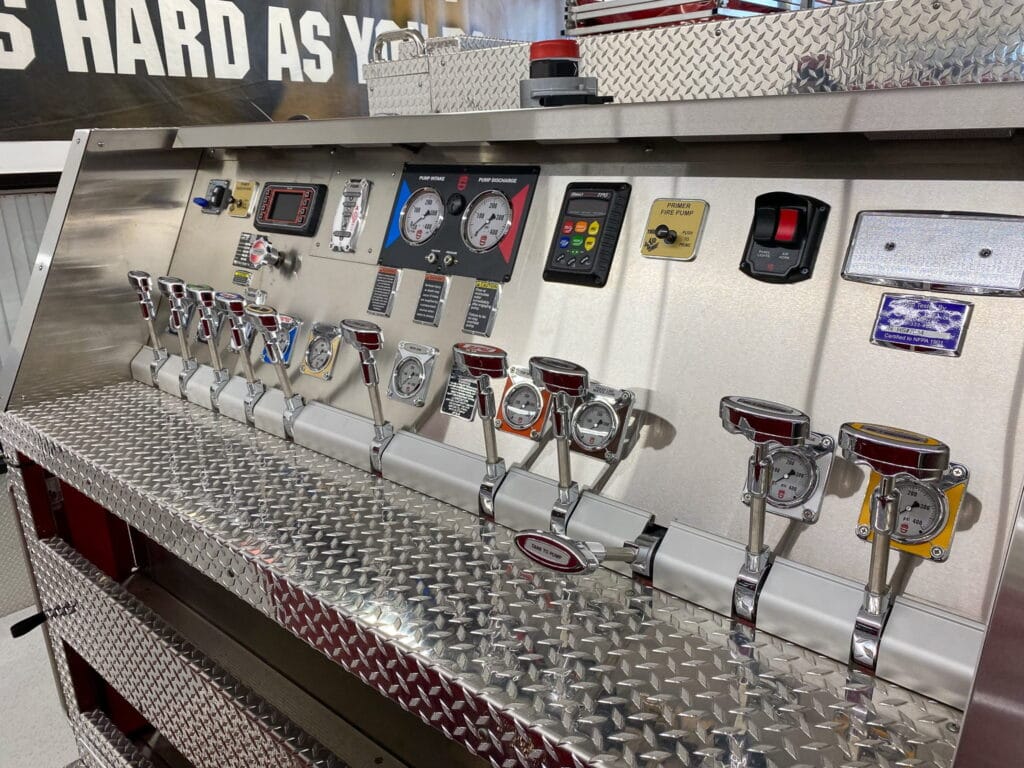

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Left, (1) 2 ½” Front/Left of Main Hosebed, (1) 3” Deck Gun
- Speedlays: (2) 1 ½”
- 1,500-Gallon Water Tank
- 25-Gallon Foam Tank
- Foam System: Hale SmartFoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll Up Compartment Doors
- Over 235 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-3 35’ 3-section & PRL-14, 14’ Roof & 10’ Folding
- Body: TA-01 Tanker 56/53 High/Low
ADDITIONAL EQUIPMENT:
- Bumper Extension
- Federal Q2B Siren, Front Bumper Mount
- Generator: Smart Power 6KW
- Hannay Electric Cord Reel, 175’ (1)
- Camera System: Brigade, Backeye 360
- Whelen 72” Freedom Lightbar w/ PFP2 Brow Light
- Zico Single Arm Porta Tank Tack w/ 2100 Gallon Porta Tank
- Command Light KL415A-FS
- Zico Single Arm Ladder Rack
- Whelen 47” Traffic Advisor
