Delivery Date:
02/01/2018
Department Name:
Columbia Fire Department
Department City / State:
Columbia, MO

WHEEL BASE: 236”

TRAVEL HEIGHT: 11′-6″±2″

TRAVEL LENGTH: 46′-7″

CHASSIS:              Sutphen 62” cab with 10” raised roof

  • Four-Door, Four-Person Cab
  • Front Suspension: 23,000 lbs.
  • Rear Axle: 52,000 lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

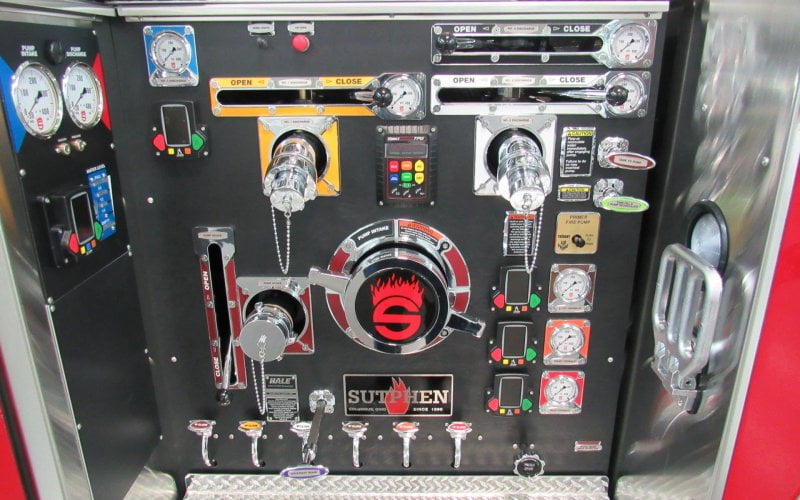

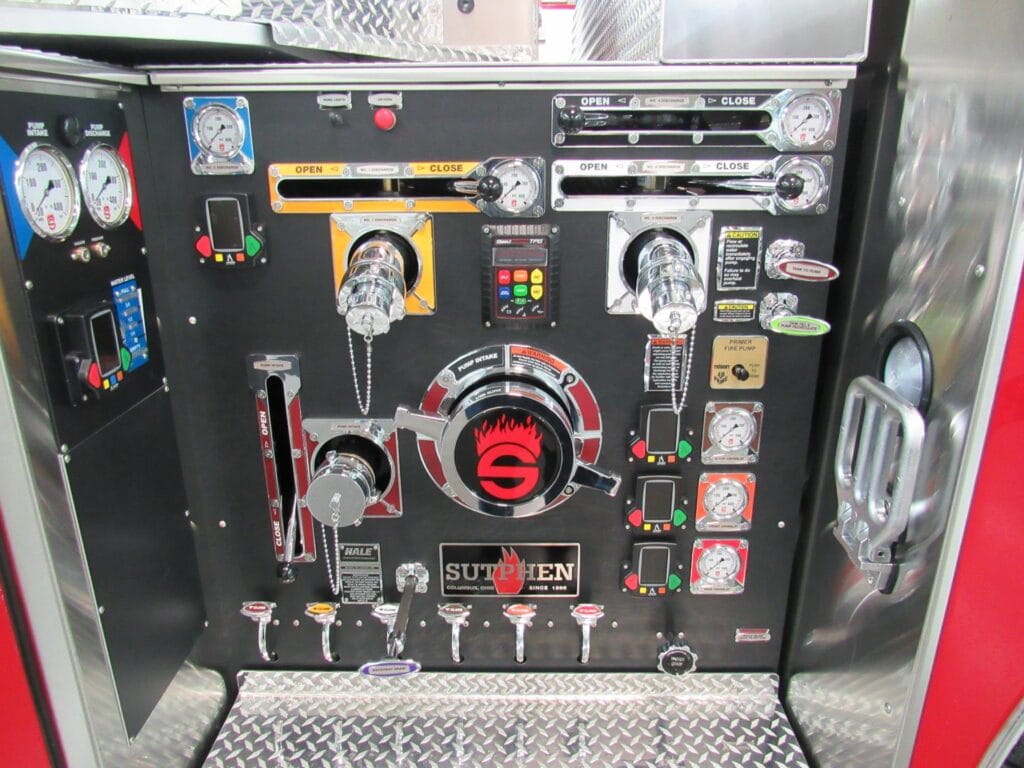

PUMP:

  • 2000 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right,
  • 300 Gallon Foam Tank

BODY:                   Sutphen

  • Aluminum
  • 265 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B
  • Stokes storage box on top of R2-R3 Body compartments
  • Traffic Advisor Power Arc LED
