Department Name:
City of Rockledge Fire Department
Department City / State:
City of Rockledge

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ 10”

TRAVEL LENGTH: 387”

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 24,000 Lbs.
  • Engine: Cummins L9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

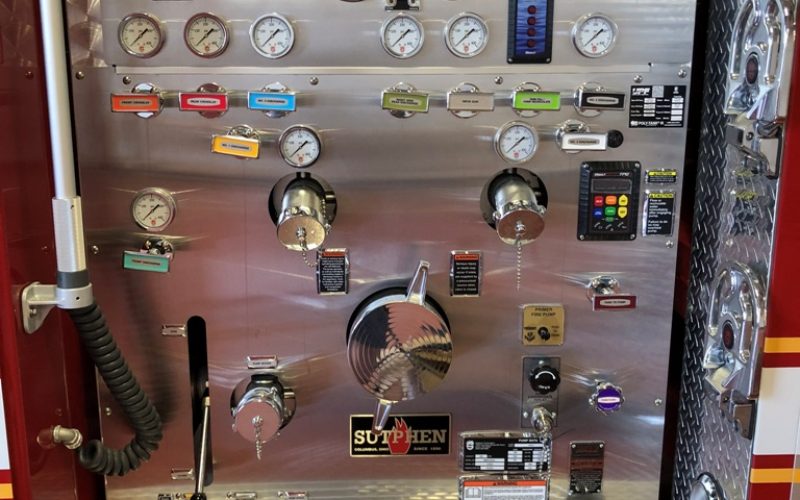

PUMP:                  Hale

  • QMAX-1500 Single Stage
  • Discharge: (2) 2.5 Left, 3” Right, 2.5” Right, 2.5” Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 750 Gallon Water Tank
  • 20 Gallon Foam Tank

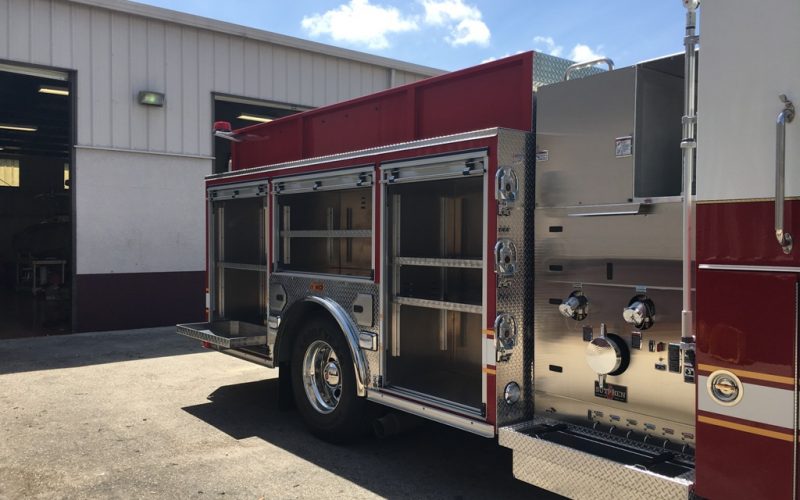

BODY:                   Sutphen

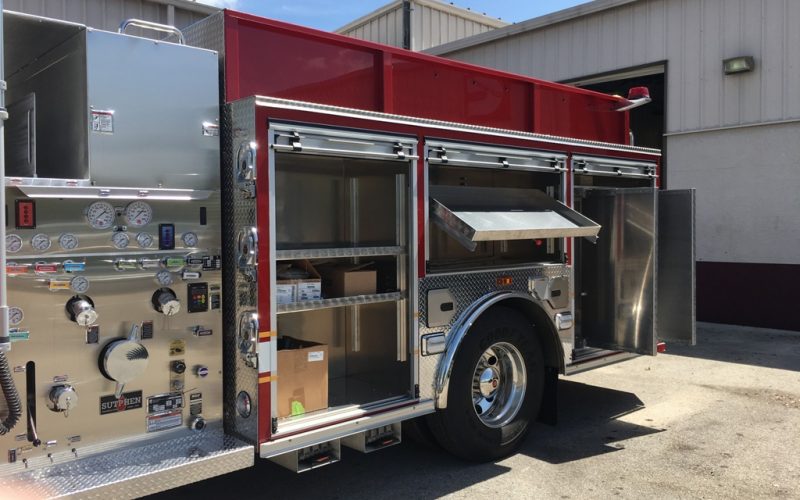

  • 246 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Move Exhaust Away from R1
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Upper Optical Warning System
  • 4 SCBA Cylinder Compartments (2 Right, 2 Left)
