SUTPHEN CORPORATION

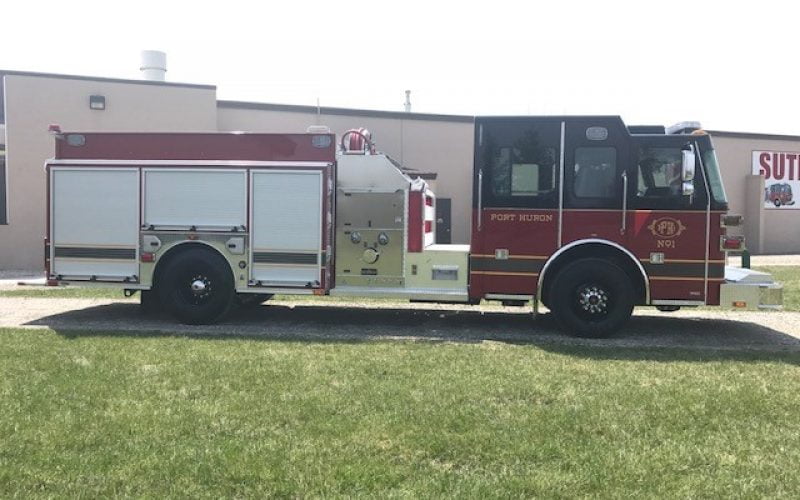

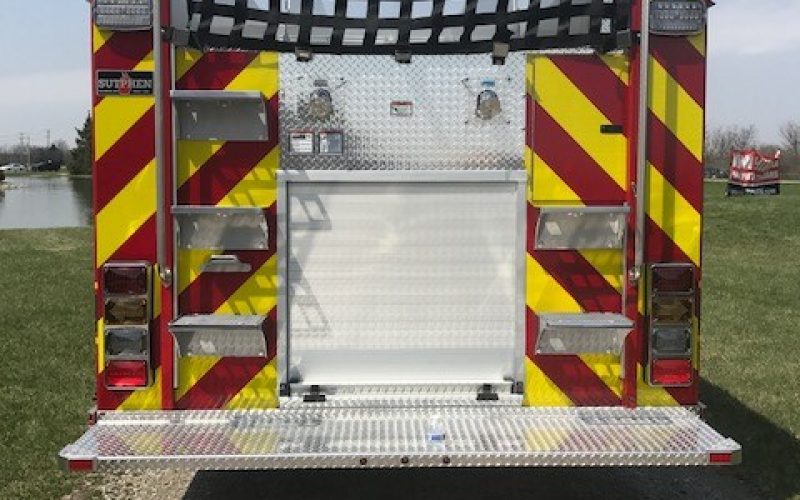

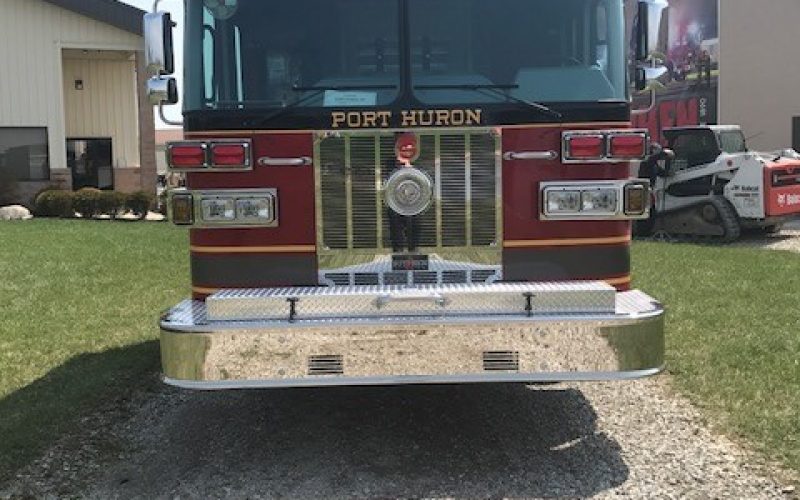

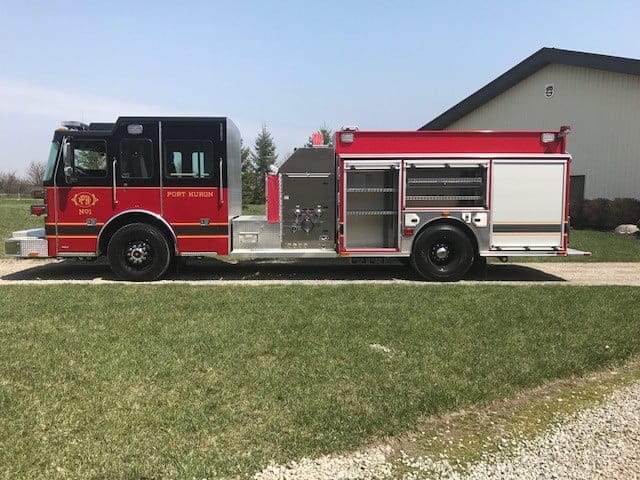

Custom Pumper (HS-6092)
City of Port Huron Fire Department
Port Huron, MI
WHEEL BASE: 215″
TRAVLE HEIGHT: 9′-8″±2″
TRAVEL LENGTH: 34′-7″
CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 18,000 Lbs.
- Rear Axle and Suspension: 27,000 Lbs.
- Engine: Cummins ISL 9 380HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5
PUMP: Hale
- QMAX-1500 GPM Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear, 3” Deck Gun
- 750 Gallon Water Tank
BODY: Sutphen
- Aluminum
- 222 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Storage Well Full Depth Full Width
- 24” Bumper Extension
- 120 Volt (1) Outlets in EMS Cabinet Mounted Centered on High Brick Wall
- Pump Heater, Gauge Heaters
