Delivery Date:
03/01/2018
Department Name:
City of Columbus Division of Fire
Department City / State:
Columbus, OH

WHEEL BASE: 187”

TRAVEL HEIGHT: 9′-8″±2″

TRAVEL LENGTH: 31′-6″

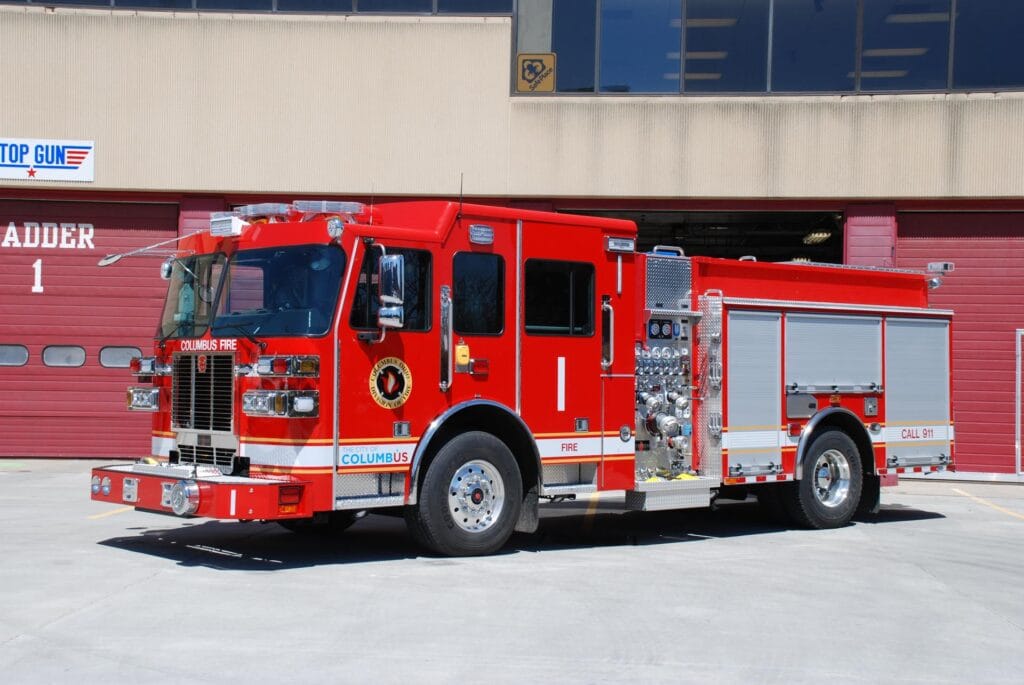

CHASSIS:              Sutphen 73”cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 24,000 lbs.
  • Engine: Cummins ISX 12 425HP
  • Alternator: Niehoff 430 AMP
  • Transmission: Allison Gen 5

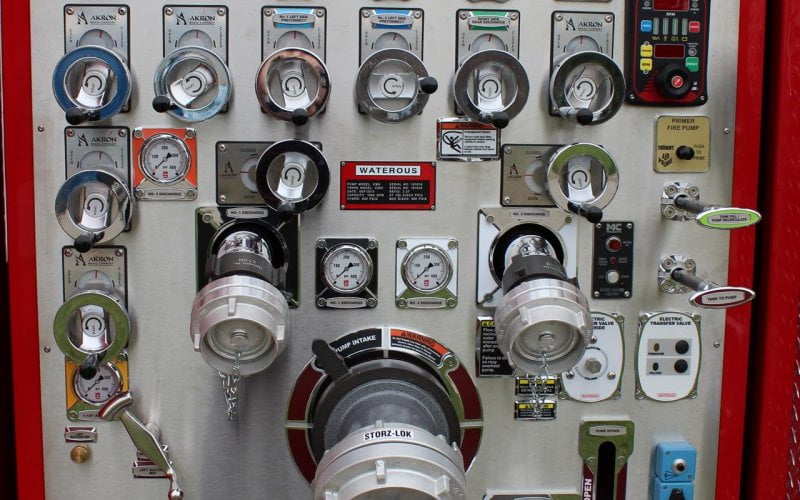

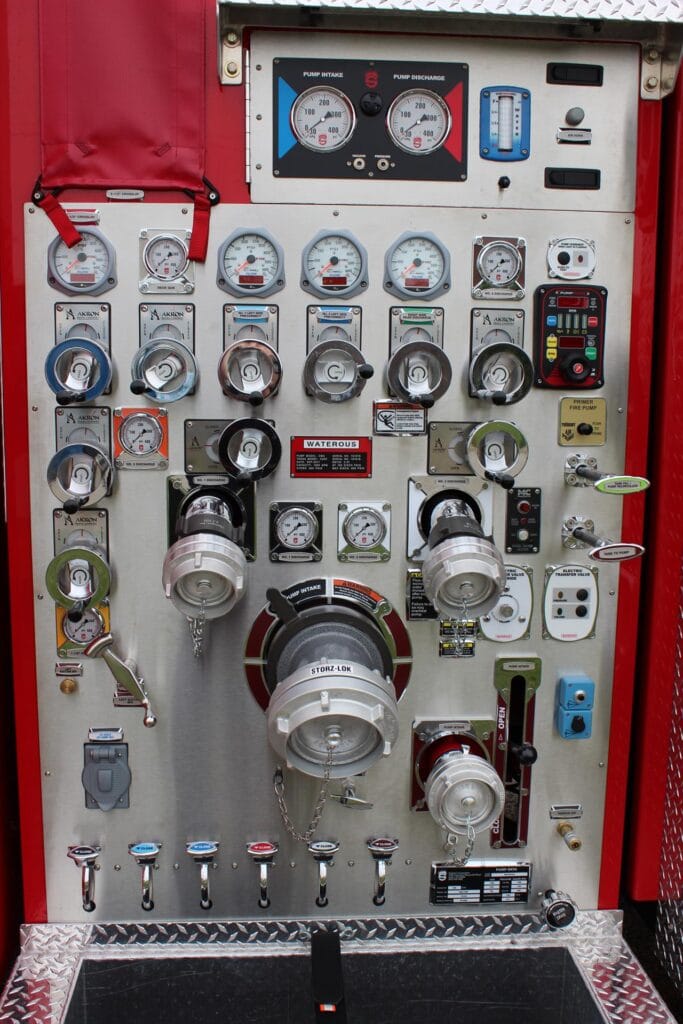

PUMP:                  Waterous Pump

  • CMU-1500 GPM Two Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, (2) 2” Front/Left of Main Hosebed, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 186.6 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Vertical Exhaust
  • Air Line Fittings, Compression Style
  • Handrails, front of cab, knurled stainless steel
  • Recessed Warning Light Pockets
  • 2” Rear Receiver
  • Diamond Plate cab food
  • Diamond plate out of the exterior the Cab
  • Spotlights, Cab, Unity, LED
